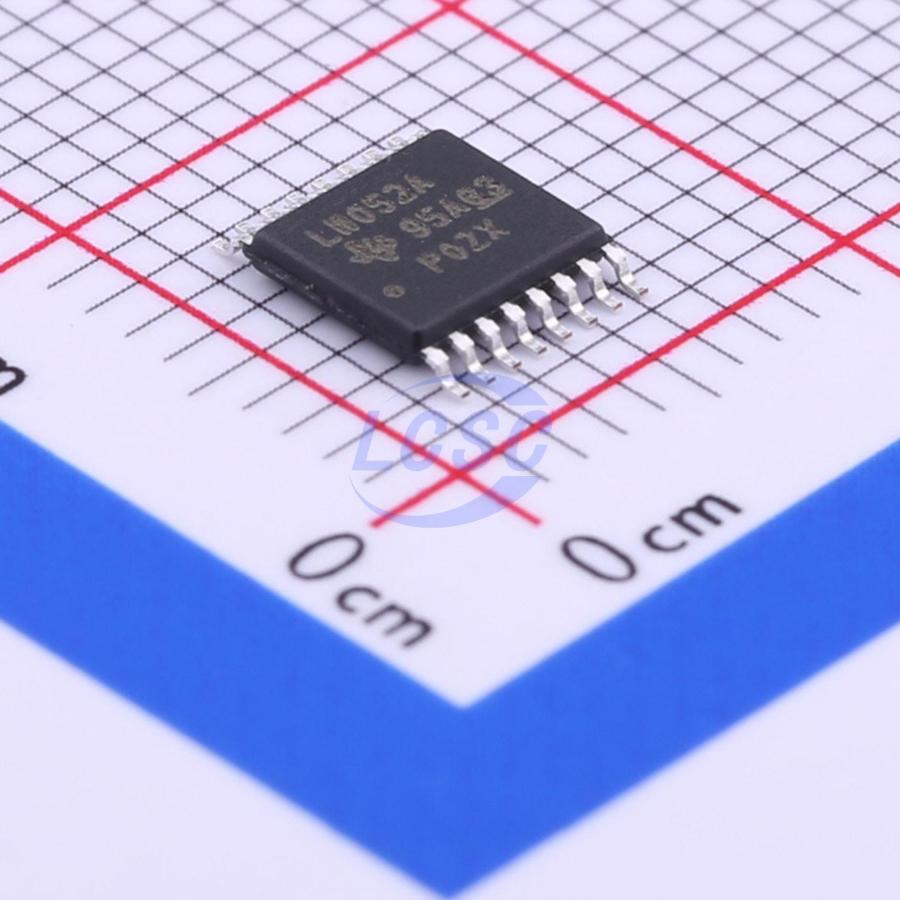

SN74LV4052APWR
4 2V~5.5V 75Ω TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS
TSSOP-16ROHS3 CompliantActive
DUAL 4-CHANNEL ANALOG MULTIPLEXERS/DEMULTIPLEXERS
- Manufacturer
- TI
- Manufacturer part #
- SN74LV4052APWR
- Store part #
- C8142
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,395 in stock
#C8142
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.33 | ₹241.65 |
| 50+ | ₹37.53 | ₹1,876.50 |
| 150+ | ₹32.92 | ₹4,938.00 |
| 500+ | ₹27.15 | ₹13,575.00 |
| 2,000+ | ₹21.78 | ₹43,560.00 |
| 4,000+ | ₹20.23 | ₹80,920.00 |
5 × ₹48.33
₹241.65
excl. GST
₹285.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV4052APWR
₹241.65 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 4
- Voltage - Supply
- 2V~5.5V
- Ron
- 75Ω
- Propagation Delay
- 7ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.5 g
Overview
These dual 4-channel CMOS analog multiplexers/demultiplexers are designed for 2-V to 5.5-V VCC operation. The ’LV4052A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
Applications
- signal gating
- chopping
- modulation or demodulation (modem)
- signal multiplexing for analog-to-digital and digital-to-analog conversion systems
Key features
- 2-V to 5.5-V VCC Operation
- Fast Switching
- High On-Off Output-Voltage Ratio
- Low Crosstalk Between Switches
- Extremely Low Input Current
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC4852PWR#C2673142TI · TSSOP-16 | TI | TSSOP-16 | 3,959 | ₹69.07 · 3,959 in stock | View |
 | NLVHC4052ADTR2G#C904959onsemi · TSSOP-16 | onsemi | TSSOP-16 | 1 | ₹58.15 · 1 in stock | View |
| RMUX1309XTSS16#C54300527RUNIC · TSSOP-16 | RUNIC | TSSOP-16 | 4,000 | ₹23.11 · 4,000 in stock | View | |
 | ADG709BRUZ-REEL7#C206785ADI · TSSOP-16 | ADI | TSSOP-16 | 106 | ₹795.49 · 106 in stock | View |
 | MC74LVX4052DTR2G#C904137onsemi · TSSOP-16 | onsemi | TSSOP-16 | 80 | ₹117.73 · 80 in stock | View |
