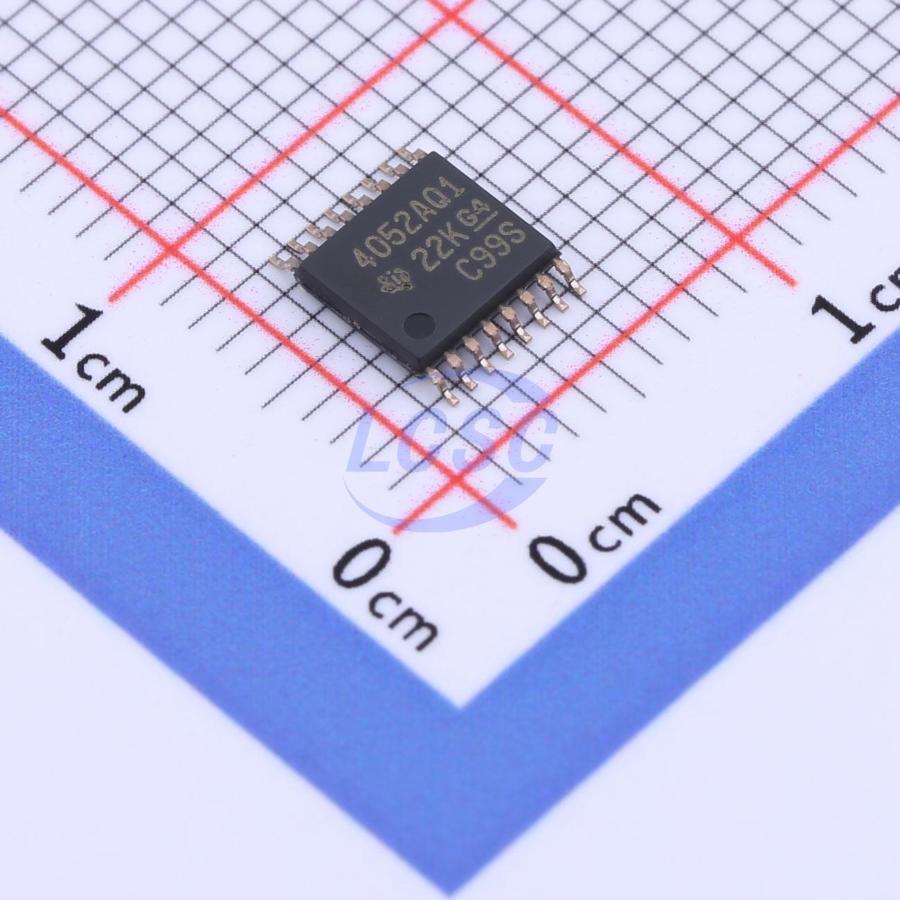

SN74LV4052AQPWRQ1
100Ω 2 2V~5.5V TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS
TSSOP-16ROHS3 CompliantActive
Dual 4-Channel Analog Multiplexers and Demultiplexers
- Manufacturer
- TI
- Manufacturer part #
- SN74LV4052AQPWRQ1
- Store part #
- C2673098
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,926 in stock
#C2673098
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.43 | ₹57.43 |
| 10+ | ₹45.91 | ₹459.10 |
| 30+ | ₹40.25 | ₹1,207.50 |
| 100+ | ₹35.24 | ₹3,524.00 |
| 500+ | ₹33.72 | ₹16,860.00 |
| 1,000+ | ₹32.85 | ₹32,850.00 |
1 × ₹57.43
₹57.43
excl. GST
₹67.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV4052AQPWRQ1
₹57.43 for 1 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Ron
- 100Ω
- Number of Channels
- 2
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 10ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
These dual 4-channel CMOS analog multiplexers and demultiplexers are designed for 2-V to 5.5-V VCC operation. The SN7LV4052A-Q1 devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
Applications
- Automotive:
- Signal Gating
- Chopping
- Modulation or Demodulation (Modem)
- Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
- Supports Mixed-Mode Voltage Operation on All Ports
- Fast Switching
- High On-Off Output-Voltage Ratio
- Low Crosstalk Between Switches
- Extremely Low Input Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LV4052ATPWREP#C2673324TI · TSSOP-16 | TI | TSSOP-16 | 5 | ₹143.62 · 5 in stock | View |
 | 74VHC4052AFT#C146311TOSHIBA · TSSOP-16-175mil | TOSHIBA | TSSOP-16-175mil | 4,250 | ₹48.41 · 4,250 in stock | View |
 | 74VHC4052AFT(BE)#C7421292TOSHIBA · TSSOP16B | TOSHIBA | TSSOP16B | 42 | ₹42.89 · 42 in stock | View |
 | CD74HC4052PWR#C402158TI · TSSOP-16 | TI | TSSOP-16 | 8,670 | ₹41.63 · 8,670 in stock | View |
 | TMUX1309PWR#C2866286TI · TSSOP-16 | TI | TSSOP-16 | 8 | ₹68.08 · 8 in stock | View |
