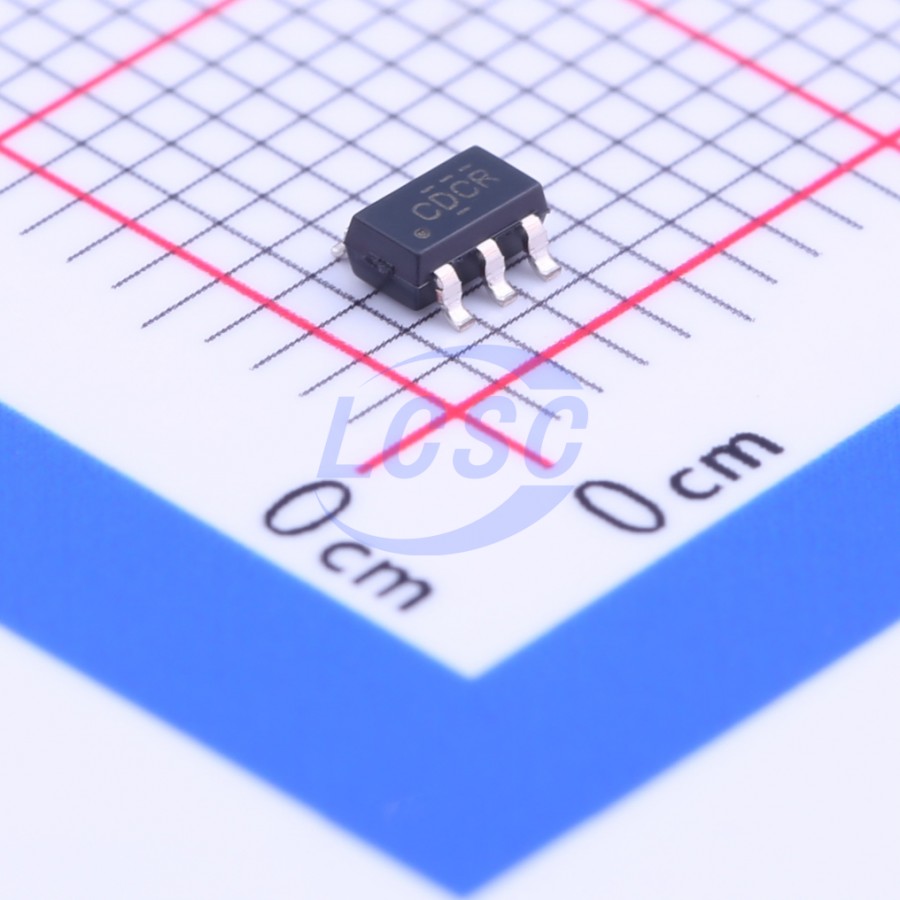

SN74LVC1G0832DBVR

This device is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G0832 device is a single 3-input positive AND-OR gate. It performs the Boolean function Y=(A·B)+C in positive logic. By tying one input to GND or VCC, the SN74LVC1G0832 device offers two more functions. When C is tied to GND, this device performs as a 2−input AND gate (Y=A·B). When A is tied to VCC, the device works as a 2−input OR gate (Y=B+C). This device also works as a 2−input OR gate when B is tied to VCC (Y=A+C). NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Logic operations for digital electronic systems

Key features

• Available in the Texas Instruments NanoFree™ Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 5 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typ @3.3 V)
• Can Be Used in Three Combinations: AND-OR Gate, AND Gate, OR Gate
• Ioff Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
