MaxLinearDatasheet (PDF)

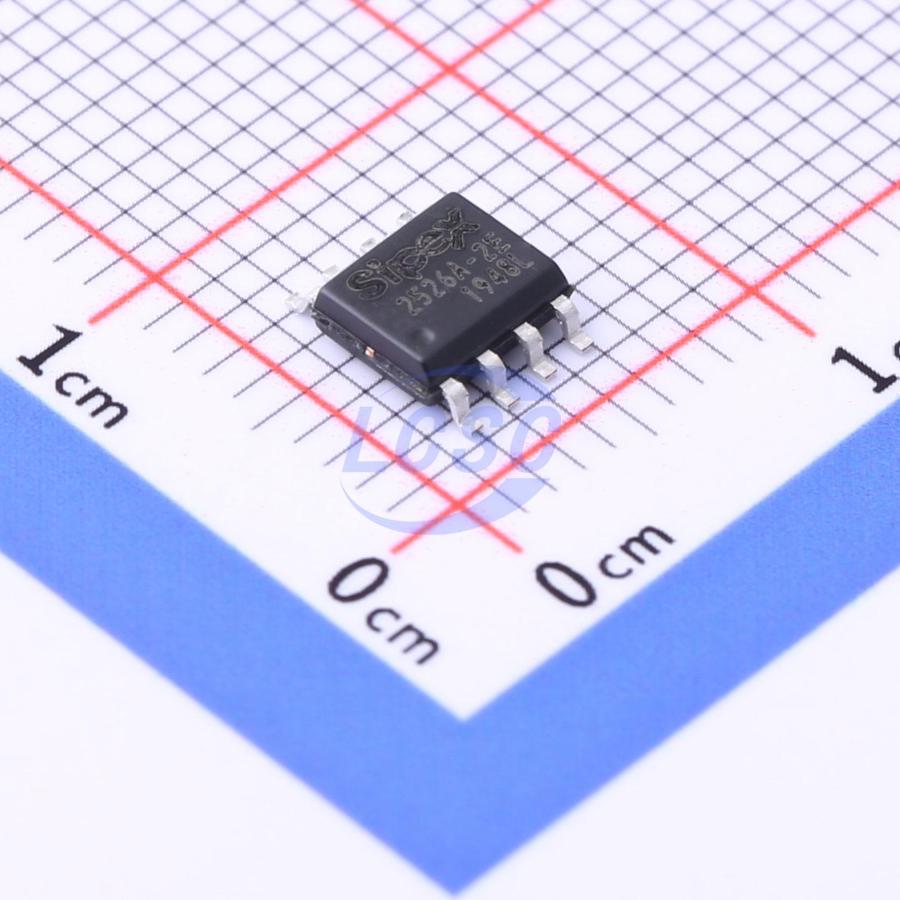

SP2526A-2EN-L/TR
2 Active Low 600mA Load Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS
SOIC-8ROHS CompliantActive
Dual Channel USB Power Distribution Switch
- Manufacturer
- MaxLinear
- Manufacturer part #
- SP2526A-2EN-L/TR
- Store part #
- C517950
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,151 in stock
#C517950
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.72 | ₹100.72 |
| 10+ | ₹82.22 | ₹822.20 |
| 30+ | ₹73.10 | ₹2,193.00 |
| 100+ | ₹63.95 | ₹6,395.00 |
| 500+ | ₹58.52 | ₹29,260.00 |
| 1,000+ | ₹55.70 | ₹55,700.00 |
1 × ₹100.72
₹100.72
excl. GST
₹118.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP2526A-2EN-L/TR
₹100.72 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Soft-start
- number of channels
- 2
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 600mA
- RDS(on)
- 110mΩ
- Operating Voltage
- 3V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.336 g
Overview
The SP2526A device is a dual +3.0V to +5.5V USB Supervisory Power Control Switch ideal for self-powered and bus-powered Universal Serial Bus (USB) applications. Each switch has low on-resistance (110mΩ typical) and can supply 500mA minimum. The fault currents are limited to 1.0A typical and the flag output pin for each switch is available to indicate fault conditions to the USB controller. The thermal shutdown feature will prevent damage to the device when subjected to excessive current loads. The undervoltage lockout feature will ensure that the device will remain off unless there is a valid input voltage present. The SP2526A is offered in a RoHS compliant “green”/halogen free 8-pin NSOIC package.
Applications
- Self Powered USB 2.0 and 3.0 Hubs
- USB Compliant VBUS Power Distribution
- Audio-Video Equipments
- Generic Power Switching
Key features
- +3.0V to +5.5V Input Voltage Range
- Two Independent Power Switches
- Two Error Flag Outputs, Open Drain
- 2.6V Undervoltage Lockout
- 1.25A Short Circuit Current Limit
- 150mΩ Maximum On-Resistance
- 110μA On-State Supply Current
- 1μA Shutdown Current
- Output can be Forced Higher than Input (Off-State)
- Thermal Shutdown
- 1ms Soft Start Power Up, Fast Turn Off
- Active-high Version: SP2526A-1
- Active-low Version: SP2526A-2
- RoHS Compliant, Green/Halogen Free 8-Pin NSOIC Package
