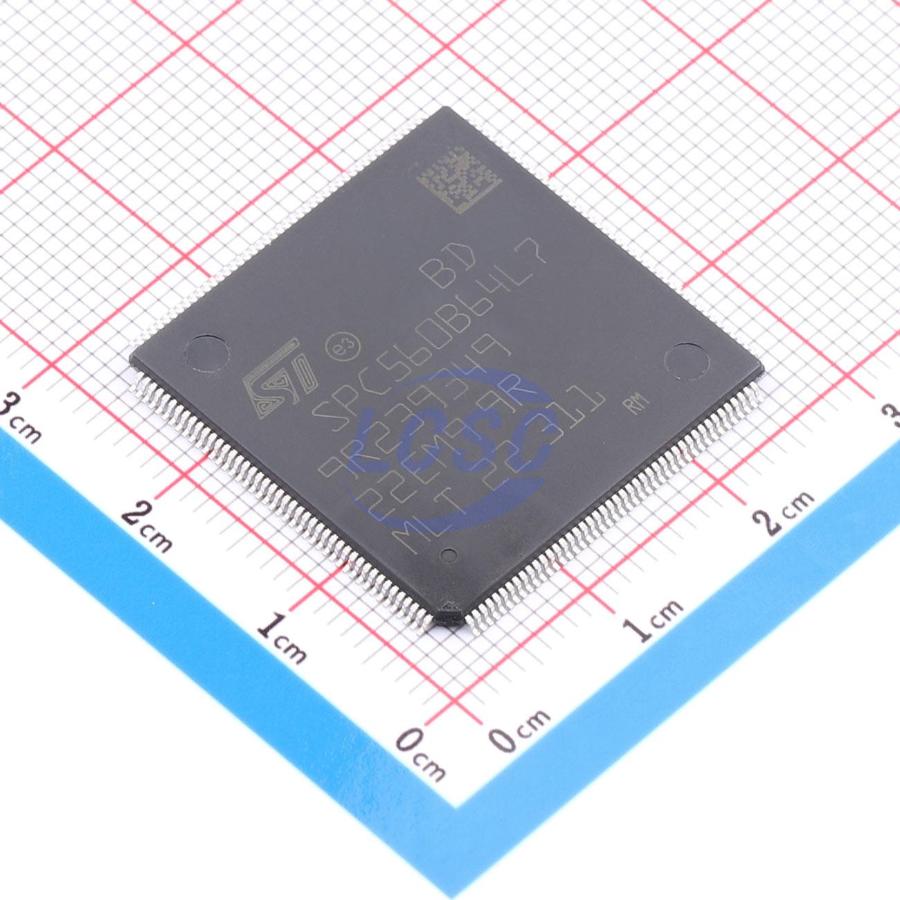

SPC560B64L7C6E0X

32-bit MCU family based on Power Architecture, designed for automotive body electronics applications, available in LQFP100 (14×14×1.4mm), LQFP144 (20×20×1.4mm), LQFP176 (24×24×1.4mm), and LBGA208 (for Nexus2+) packages, with an operating temperature range of -40 to 125℃.

Applications

• Automotive body electronics applications

Key features

• High performance 64 MHz e200z0h CPU 32-bit Power Architecture technology CPU – Up to 60 DMIPs operation – Variable length encoding (VLE)
• Memory Up to 1.5 MB on-chip Code Flash with ECC – 64 KB on-chip Data Flash with ECC Up to 96 KB on-chip SRAM with ECC – 8-entry MPU
• Interrupts – 16 priority levels – Non-maskable interrupt (NMI) – Up to 51 external interrupts lines including 27 wake-up lines
• 16-channel eDMA (linked to PITs, DSPI, ADCs, eMIOS, LINFlex and I²C)
• GPIOs: 77 (LQFP100), 121 (LQFP144) and 149 (LQFP176)
• Timer units – 8-channel 32-bit periodic interrupt timer – 4-channel 32-bit system timer – System watchdog timer – Real-time clock timer
• eMIOS, 16-bit counter timed I/O units – Up to 64 channels with PWM/MC/IC/OC – Up to 10 counter basis – ADC diagnostic trigger via CTU
• One 10-bit and one 12-bit ADC with up to 53 channels – Extendable to 81 channels – Individual conversion registers
• Cross triggering unit (CTU)
• Dedicated diagnostic module for lighting – Advanced PWM generation – Time-triggered diagnostics – PWM-synchronized ADC measurements
• On-chip CAN/UART bootstrap loader
• Communications interfaces – Up to 6 FlexCAN (2.0B active) with 64 message buffers each – Up to 10 LINFlex/UART channels Up to 6 buffered DSPI channels – I²C interface
• Clock generation 4 to 16 MHz fast external crystal oscillator – 32 kHz slow external crystal oscillator – 16 MHz fast internal RC oscillator 128 kHz slow internal RC oscillator for lowpower modes – Software-controlled FMPLL – Clock monitoring unit
• Low-power capabilities – Several low-power mode configurations Ultra-low-power standby with RTC and communication – Fast wakeup schemes
• Exhaustive debugging capability – Nexus 2+ interface on LBGA208 package – Nexus 1 on all packages
• Voltage supply – Single 5 V or 3.3 V supply – On-chip voltage regulator – External ballast resistor support
• LQFP100, LQFP144, and LQFP176 packages; LBGA208 package for Nexus2+
• Operating temperature range -40 to 125 °C
