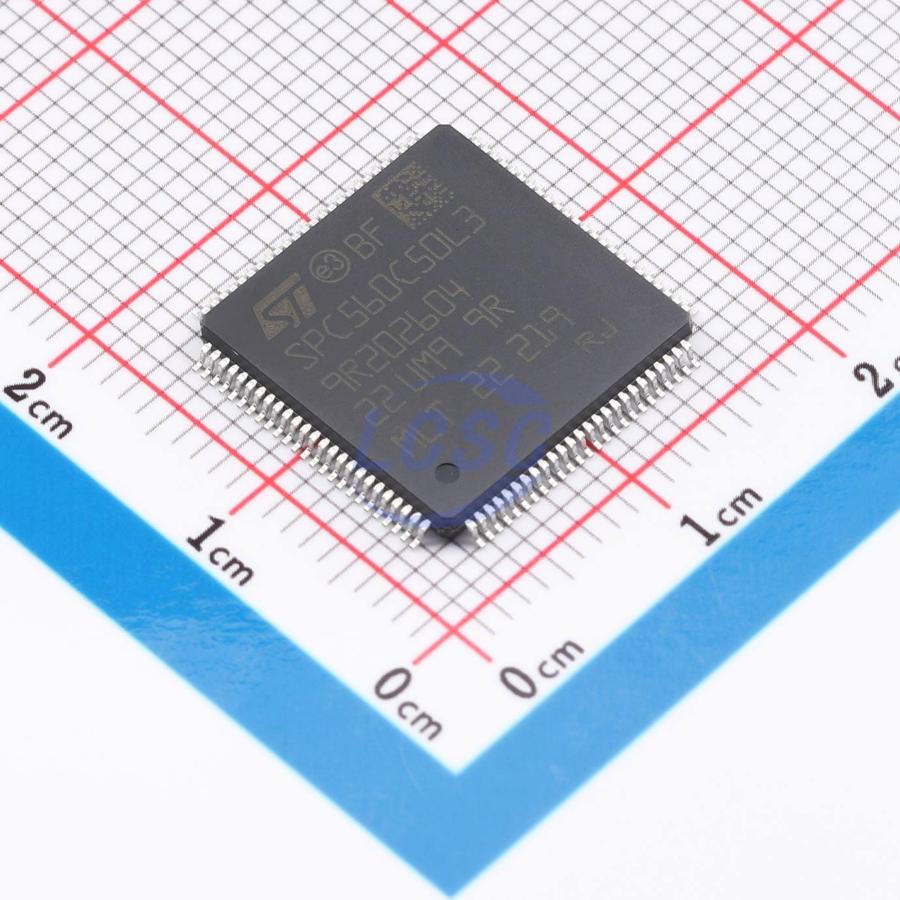

SPC560C50L3C6E0X

32-bit MCU family built on the Power Architecture for automotive body electronics applications

Key features

• High-performance 64 MHz e200z0h CPU 32-bit Power Architecture technolog
• Up to 60 DMIPs operation Variable length encoding (VLE)
• Memory Up to 512 KB Code Flash with ECC 64 KB Data Flash with ECC Up to 48 KB SRAM with ECC
• 8-entry memory protection unit (MPU)
• Interrupts
• 16 priority levels
• Non-maskable interrupt (NMI) Up to 34 external interrupts incl. 18 wakeup lines
• GPIO: 45(LQFP64), 75(LQFP100), 123(LQFP144)
• Timer units
• 6-channel 32-bit periodic interrupt timers
• 4-channel 32-bit system timer module
• Software watchdog timer
• Real-time clock timer
• 16-bit counter time-triggered I/Os Up to 56 channels with PWM/MC/IC/OC ADC diagnostic via CTU
• Communications interface
• Up to 6 FlexCAN interfaces (2.0B active) with 64-message objects each
• Up to 4 LINFlex/UART
• 3 DSPI / I2C
• 10-bit analog-to-digital converter (ADC) with up to 36 channels Extendable to 64 channels via external multiplexing Individual conversion registers Cross triggering unit (CTU)
• Dedicated diagnostic module for lighting
• Advanced PWM generation Time-triggered diagnostic PWM-synchronized ADC measurements
• Clock generation
• 4 to 16 MHz fast external crystal oscillator (FXOSC)
• 32 kHz slow external crystal oscillator (SXOSC)
• 16 MHz fast internal RC oscillator (FIRC)
• 128 kHz slow internal RC oscillator (SIRC)
• Software-controlled FMPLL
• Clock monitor unit (CMU)
