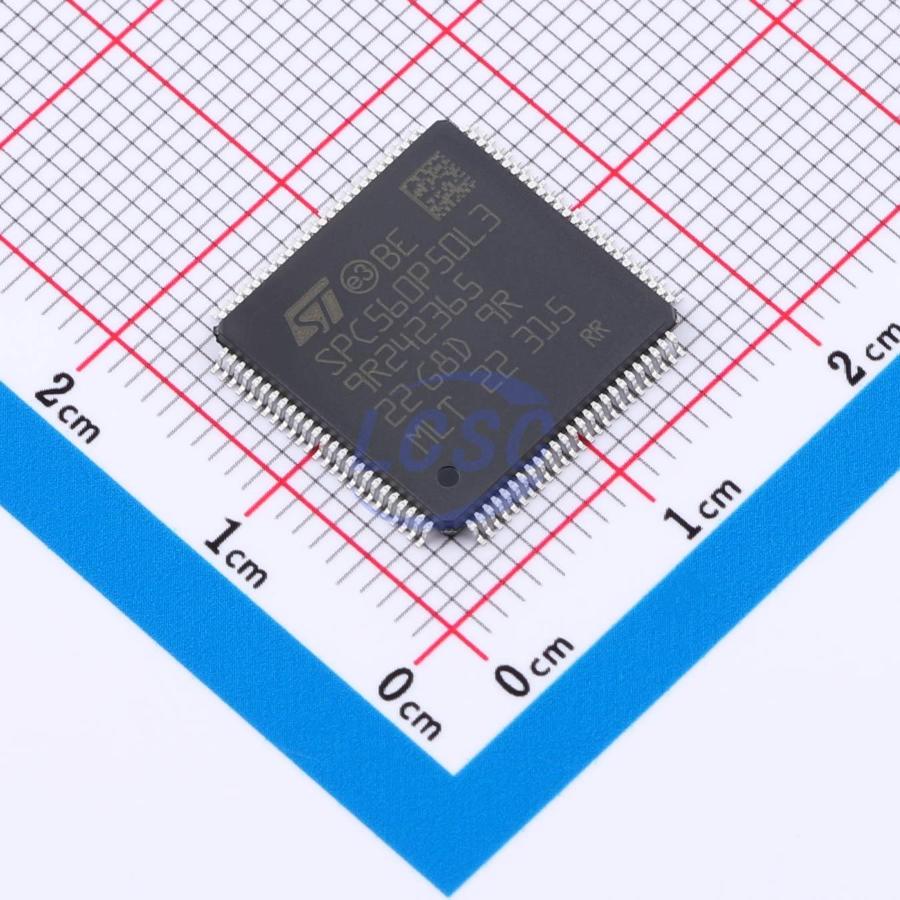

SPC560P50L3CEFAR

32-bit MCU based on Power Architecture, featuring 576 KB Flash and 40 KB SRAM, designed for automotive chassis and safety applications.

Applications

• Automotive chassis applications
• Automotive safety applications

Key features

• 64 MHz, single issue, 32-bit CPU core complex (e200z0h) Compliant with Power Architecture® embedded category Variable Length Encoding (VLE)
• Memory organization:
• Up to 512 KB on-chip code flash memory with ECC and erase/program controller
• Additional 64 (4x16) KB on-chip data flash memory with ECC for EEPROM emulation
• Up to 40 KB on-chip SRAM with ECC
• Fail safe protection:
• Programmable watchdog timer
• Non-maskable interrupt
• Fault collection unit
• Nexus L2+ interface
• 16-channel eDMA controller
• 16 priority level controller
• General purpose I/Os individually programmable as input, output or special function
• 6 timers each with up/down count capabilities, 16-bit resolution, cascadable counters, Quadrature decode with rotation direction flag, Double buffer input capture and output compare
• Communications interfaces:
• 2 LINFlex channels (LIN 2.1)
• 4 DSPI channels with automatic chip select generation
• 1 FlexCAN interface (2.0B Active) with 32 message objects
• 1 safety port based on FlexCAN with 32 message objects and up to 7.5 Mbit/s capability; usable as second CAN when not used as safety port
• 1 FlexRay™ module (V2.1) with selectable dual or single channel support, 32 message objects and up to 10 Mbit/s (512 KB device only)
• Two 10-bit analog-to-digital converters (ADC):
• 2x11 input channels, + 4 shared channels
• Conversion time <1 µs including sampling time at full precision
• Programmable ADC Cross Triggering Unit (CTU)
• 4 analog watchdogs with interrupt capability
• On-chip CAN/UART bootstrap loader with Boot Assist Module (BAM)
• 1 FlexPWM unit: 8 complementary or independent outputs with ADC synchronization signals
