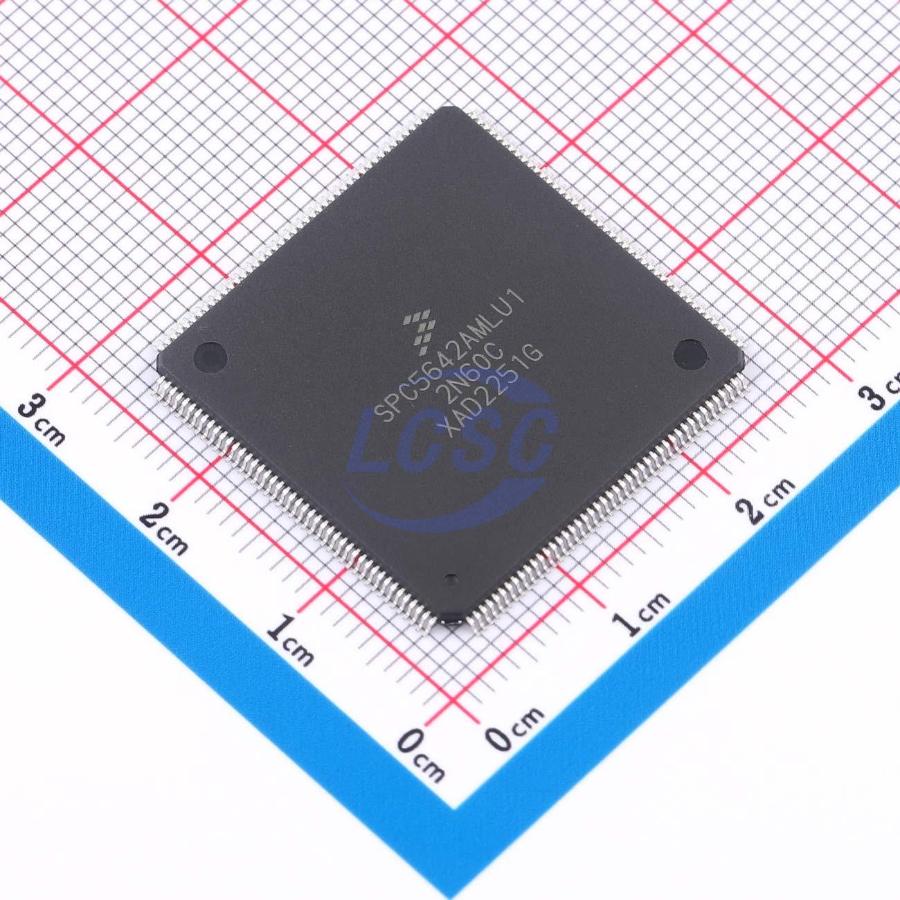

SPC5642AF2MLU1

Key features

• 150 MHz e200z4 Power Architecture core
• Variable length instruction encoding (VLE) Superscalar architecture with 2 execution units
• Up to 2 integer or floating point instructions per cycle
• Up to 4 multiply and accumulate operations per cycle
• 4 MB on-chip flash memory with ECC and Read While Write (RWW)
• 192 KB on-chip SRAM with standby functionality (32 KB) and ECC
• 8 KB instruction cache (with line locking), configurable as 2- or 4-way
• 14 + 3 KB eTPU code and data RAM
• 5×4 crossbar switch (XBAR)
• 24-entry MMU
• External Bus Interface (EBI) with slave and master port
• Fail Safe Protection
• 16-entry Memory Protection Unit (MPU)
• CRC unit with 3 sub-modules
• Junction temperature sensor
• Configurable interrupt controller (with NMI)
• 64-channel DMA
• Serial channels: 3×eSCI, 3×DSPI (2 of which support downstream Micro Second Channel [MSC]), 3×FlexCAN with 64 messages each, 1×FlexRay module (V2.1) up to 10 Mbit/s with dual or single channel and 128 message objects and ECC
• 1×eTPU2 (second generation eTPU) 32 standard channels
• 1×reaction module (6 channels with three outputs per channel)
• 2 enhanced queued analog-to-digital converters (eQADCs)
• Forty 12-bit input channels (multiplexed on 2 ADCs); expandable to 56 channels with external multiplexers
• 6 command queues
• Trigger and DMA support
• 688 ns minimum conversion time
• On-chip CAN/SCI/FlexRay Bootstrap loader with Boot Assist Module (BAM)
• Nexus Class 3+ for the e200z4 core — Class 1 for the eTPU
• JTAG (5-pin)
• Development Trigger Semaphore (DTS) Register of semaphores (32-bits) and an identification register
• Used as part of a triggered data acquisition protocol
• EVTO pin is used to communicate to the external tool
• On-chip 4–40 MHz main oscillator
• On-chip FMPLL (frequency-modulated phase-locked loop)
• Up to 120 general purpose I/O lines
• Individually programmable as input, output or special function
• Programmable threshold (hysteresis)
• Power reduction mode: slow, stop and stand-by modes
• Flexible supply scheme: 5 V single supply with external ballast, Multiple external supply: 5 V, 3.3 V and 1.2 V
• Packages: 176 LQFP, 208 MAPBGA, 324 TEPBGA, 496-pin CSP (calibration tool only)
