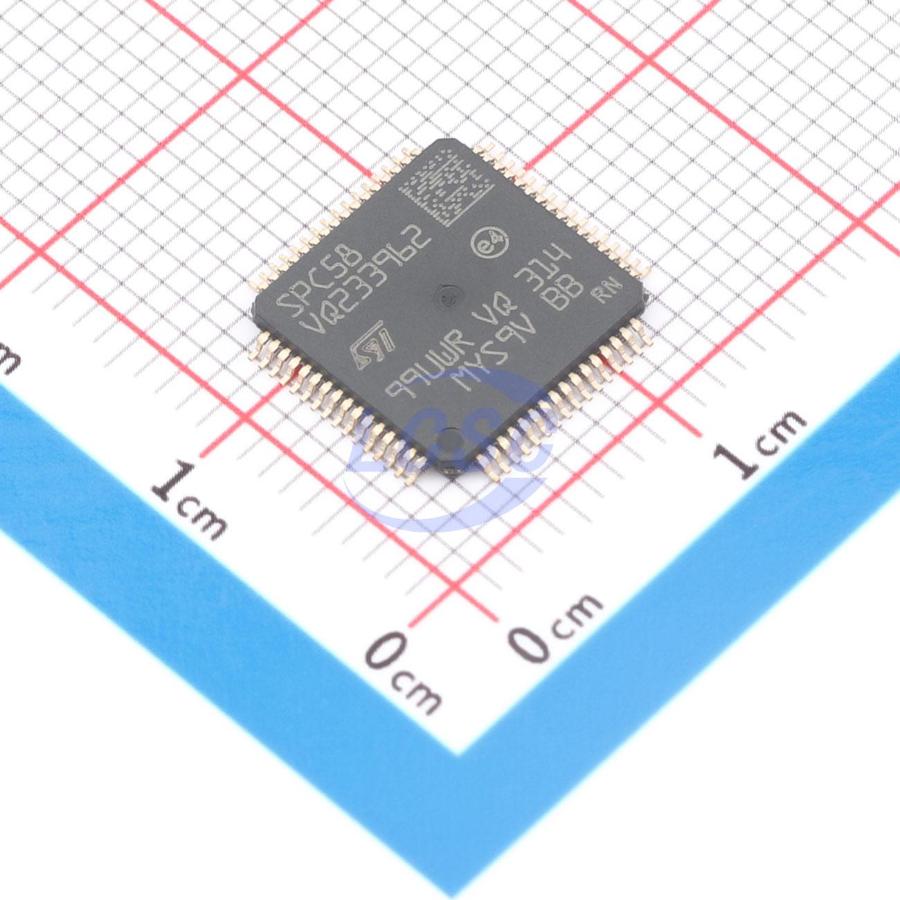

SPC582B50E1AD00X

The SPC582Bx microcontroller is the entry member of a new family of devices superseding the SPC560Bx family. SPC582Bx is built on the legacy of the SPC5x products, while introducing new features to answer the future requirements like the ASIL-B classification, high number of ISO CAN-FD channels, and provide significant power and performance improvement (MIPS per mW).

Key features

• AEC-Q100 qualified
• High performance e200z2 single core – 32-bit Power Architecture technology
• CPU Core frequency as high as 80 MHz
• Variable Length Encoding (VLE) – Floating Point, End-to-End Error Correction
• 1088 KB (1024 KB code flash + 64 KB data flash) on-chip flash memory: supports read during program and erase operations, and multiple blocks allowing EEPROM emulation
• 96 KB on-chip general-purpose SRAM
• Multi-channel direct memory access controller (eDMA) with 16 channels
• 1 interrupt controller (INTC)
• Comprehensive new generation ASIL-B safety concept – ASIL-B of ISO 26262
• FCCU for collection and reaction to failure notifications
• Memory Error Management Unit (MEMU) for collection and reporting of error events in memories
• Cyclic redundancy check (CRC) unit
• End-to-end Error Correction Code (e2eECC) logic
• Crossbar switch architecture for concurrent access to peripherals, Flash, or RAM from multiple bus masters with end-to-end ECC
• Body cross triggering unit (BCTU) Triggers ADC conversions from any eMIOS channel
• Triggers ADC conversions from up to 2 dedicated PIT_RTIs
• 1 event configuration register dedicated to each timer event allows to define the corresponding ADC channel
• Synchronization with ADC to avoid collision
• 1 enhanced 12-bit SAR analog-to-digital converters – Up to 27 channels – enhanced diagnosis feature
• Communication interfaces
• 6 LINFlexD modules
• 4 deserial serial peripheral interface (DSPI) modules
• 7 MCAN interfaces with advanced shared memory scheme and ISO CAN FD support
• Dual phase-locked loops with stable clock domain for peripherals and FM modulation domain for computational shell
• Nexus Class 3 debug and trace interface
• Boot assist Flash (BAF) supports factory programming using a serial bootload through the asynchronous CAN or LIN/UART.
• Enhanced modular IO subsystem (eMIOS): up to 32 timed I/O channels with 16-bit counter resolution
• Advanced and flexible supply scheme On-chip voltage regulator for 1.2V core logic supply.
• Junction temperature range -40 ℃ to 150 ℃
