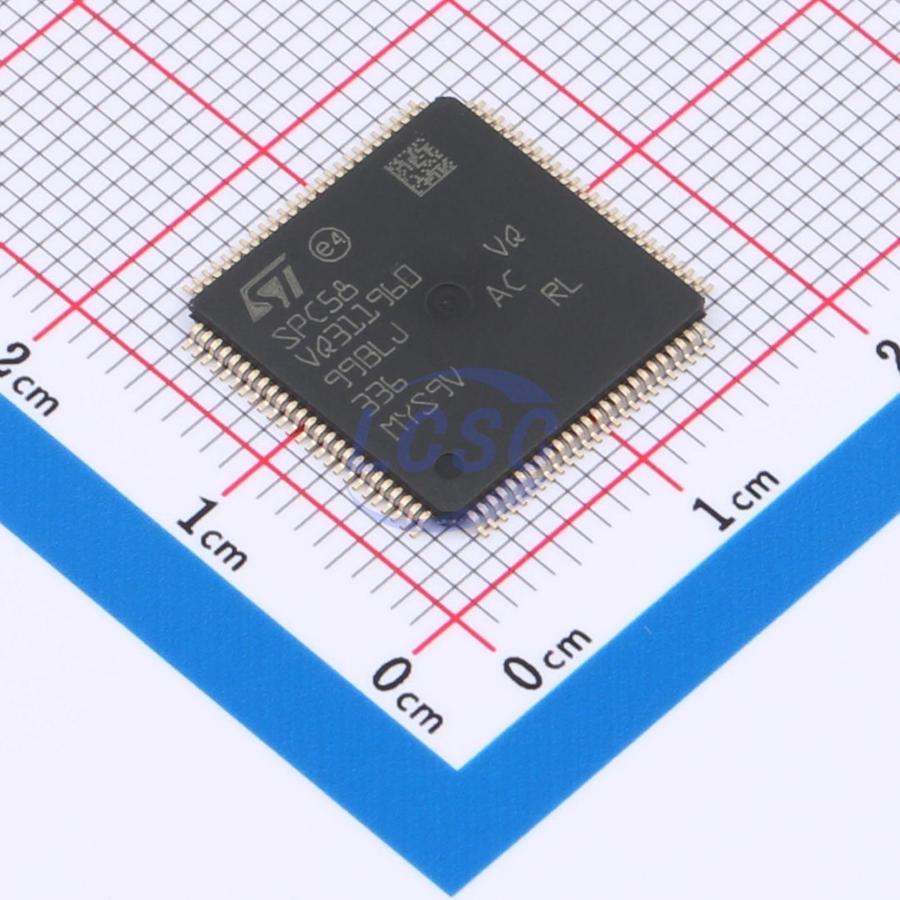

SPC584B70E3EHC0X

The SPC584Bx microcontroller is a member of the family of devices superseding the SPC560Bx family. SPC584Bx is built on the legacy of the SPC560Bx family, while introducing new features coupled with higher throughput to provide substantial reduction of cost per feature and significant power and performance improvement (MIPS per mW). On the SPC584Bx device, there is one processor core e200z420 and one e200z0 core embedded in the Hardware Security Module.

Applications

• Automotive ASIL-B applications
• Automotive electronic control systems
• Automotive safety-related equipment

Key features

• AEC-Q100 qualified - High performance e200z420
• 32-bit Power Architecture technology CPU
• Core frequency as high as 120 MHz
• Variable Length Encoding (VLE)
• 2112 KB (2048 KB code flash + 64 KB data flash) on-chip flash memory: supports read during program and erase operations, and multiple blocks allowing EEPROM emulation
• 176 KB HSM dedicated flash memory (144 KB code + 32 KB data)
• 128 KB on-chip general-purpose SRAM (in addition to 64 KB core local data RAM)
• Crossbar switch architecture for concurrent access to peripherals, Flash, or RAM from multiple bus masters with end-to-end ECC
• Multi-channel direct memory access controller (eDMA) with 64 channels
• 1 interrupt controller (INTC)
• Comprehensive new generation ASIL-B safety concept
• ASIL-B of ISO 26262
• FCCU for collection and reaction to failure notifications
• Memory Error Management Unit (MEMU) for collection and reporting of error events in memories
• Cyclic redundancy check (CRC) unit
• Enhanced low power support
• Ultra low power STANDBY
• Smart Wake-up Unit
• Fast wake-up and execute from RAM
• Enhanced modular IO subsystem (eMIOS): up to 64 timed I/O channels with 16-bit counter resolution
• Body cross triggering unit (BCTU)
• Triggers ADC conversions from any eMIOS channel
• Triggers ADC conversions from up to 2 dedicated PIT-RTIs
• Enhanced analog-to-digital converter system with: 2 independent fast 12-bit SAR analog converters, 1 supervisor 12-bit SAR analog converter, 1 10-bit SAR analog converter with STDBY mode support
• Communication interfaces: 1 Ethernet controller 10/100 Mbps, compliant IEEE 802.3 - 2008; 8 MCAN interfaces with advanced shared memory scheme and ISO CAN-FD support; 14 LINFlexD modules; 7 Deserial Serial Peripheral Interface (DSPI) modules
• Dual phase-locked loops with stable clock domain for peripherals and FM modulation domain for computational shell
• Nexus Development Interface (NDI) per IEEE-ISTO 5001 - 2003 standard, with some support for 2010 standard
• Boot Assist Flash (BAF) supports factory programming using a serial bootload through the asynchronous CAN or LIN/UART
• Junction temperature range -40℃ to 150℃
