InfineonDatasheet (PDF)

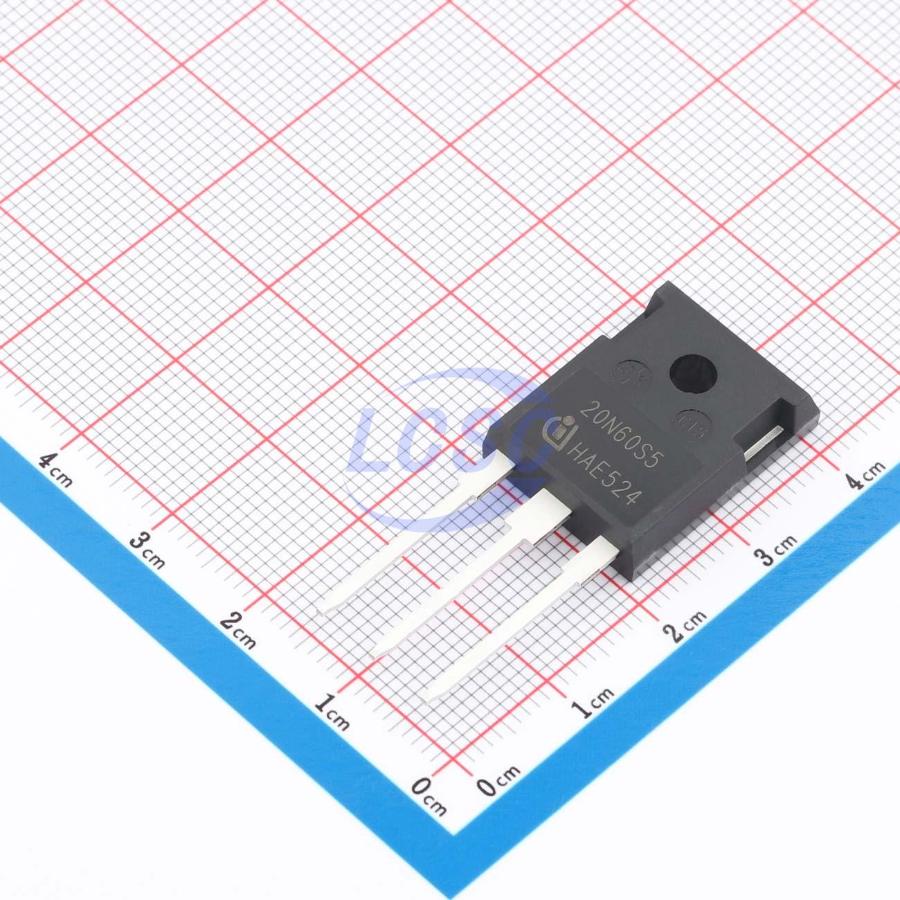

SPW20N60S5
208W 600V 20A 190mΩ@10V 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS CompliantActive
MOSFET N-CH 600V 20A TO-247-3
- Manufacturer
- Infineon
- Manufacturer part #
- SPW20N60S5
- Store part #
- C539323
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C539323
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹724.36 | ₹724.36 |
| 10+ | ₹622.46 | ₹6,224.60 |
| 30+ | ₹560.32 | ₹16,809.60 |
| 100+ | ₹508.18 | ₹50,818.00 |
1 × ₹724.36
₹724.36
excl. GST
₹854.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 240 per tube
SPW20N60S5
₹724.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.17nF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 208W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 28pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 79nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 240 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.55 g
Overview
Key features
- Revolutionary new high-voltage technology
- Ultra-low gate charge
- Rated repetitive avalanche capability
- Rated ultra-high dv/dt
- Ultra-low effective capacitance
- Improved transconductance
- Lead-free lead finish; RoHS compliant
- JEDEC qualified for target applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STW20NM60#C262986ST · TO-247 | ST | TO-247 | 13 | ₹402.46 · 13 in stock | View |
 | SPW20N60C3#C140446Infineon · TO-247AC-3 | Infineon | TO-247AC-3 | 1,360 | ₹230.55 · 1,360 in stock | View |
 | SPW20N60CFD#C539322Infineon · TO-247-3 | Infineon | TO-247-3 | 8 | ₹725.85 · 8 in stock | View |
 | MS24N80HCC0#C55042297MASPOWER · TO-247 | MASPOWER | TO-247 | 26 | ₹426.32 · 26 in stock | View |
| SPW24N60CFD#C539324Infineon · TO-247AC-3 | Infineon | TO-247AC-3 | 10 | ₹1,860.07 · 10 in stock | View | |
