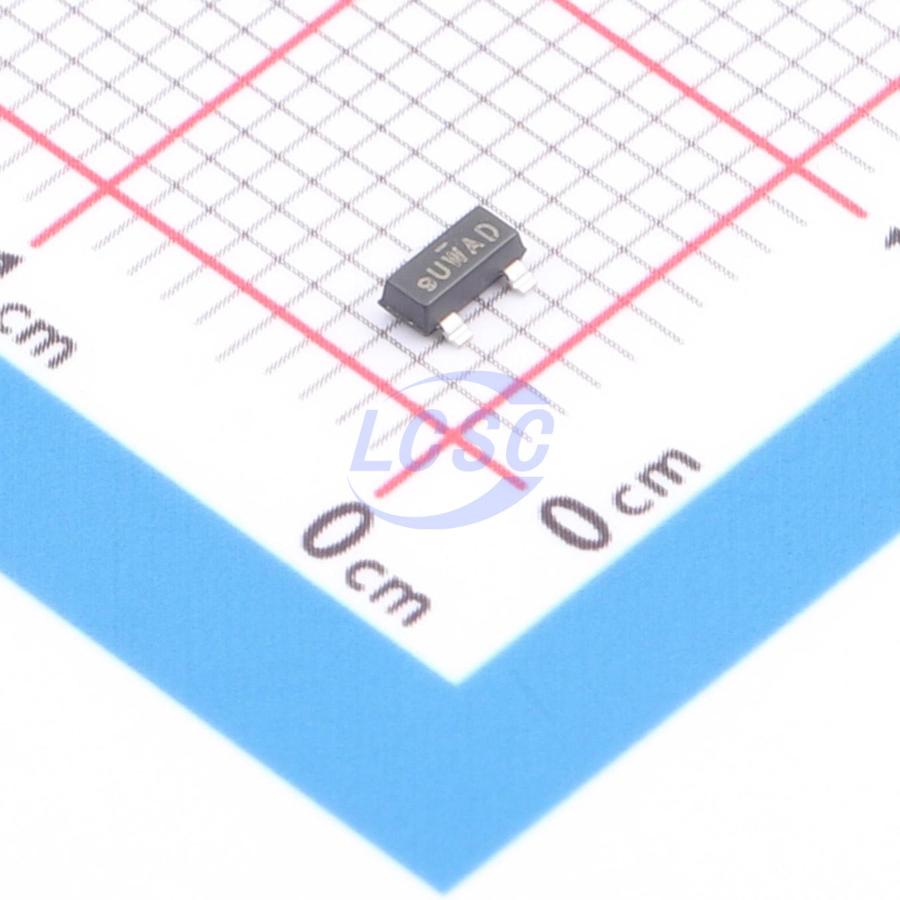

VISHAYDatasheet (PDF)
SQ2389CES-T1_GE3
40V 4.1A 3W 94mΩ@10V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2389CES-T1_GE3
- Store part #
- C26443717
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,331 in stock
#C26443717
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.73 | ₹54.73 |
| 10+ | ₹43.22 | ₹432.20 |
| 30+ | ₹38.22 | ₹1,146.60 |
| 100+ | ₹32.15 | ₹3,215.00 |
| 500+ | ₹29.32 | ₹14,660.00 |
| 1,000+ | ₹27.58 | ₹27,580.00 |
1 × ₹54.73
₹54.73
excl. GST
₹64.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2389CES-T1_GE3
₹54.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 4.1A
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 414pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 94mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
Key features
- Trench field-effect transistor (TrenchFET) power MOSFET
- AEC-Q101 qualified
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant and halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2389ES-T1_GE3#C142527VISHAY · SOT-23 | VISHAY | SOT-23 | 1,220 | ₹45.07 · 1,220 in stock | View |
 | SQ2319CES-T1_GE3#C30884362VISHAY · SOT-23-3 | VISHAY | SOT-23-3 | 8,265 | ₹41.44 · 8,265 in stock | View |
 | SQ2389ES-T1_BE3#C3290060VISHAY · SOT-23-3(TO-236-3) | VISHAY | SOT-23-3(TO-236-3) | 505 | ₹47.32 · 505 in stock | View |
 | WST4041#C148357Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | 54,375 | ₹23.06 · 54,375 in stock | View |
 | WST2319#C2906299Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | On request | ₹8.35 · 0 in stock | View |
