VISHAYDatasheet (PDF)

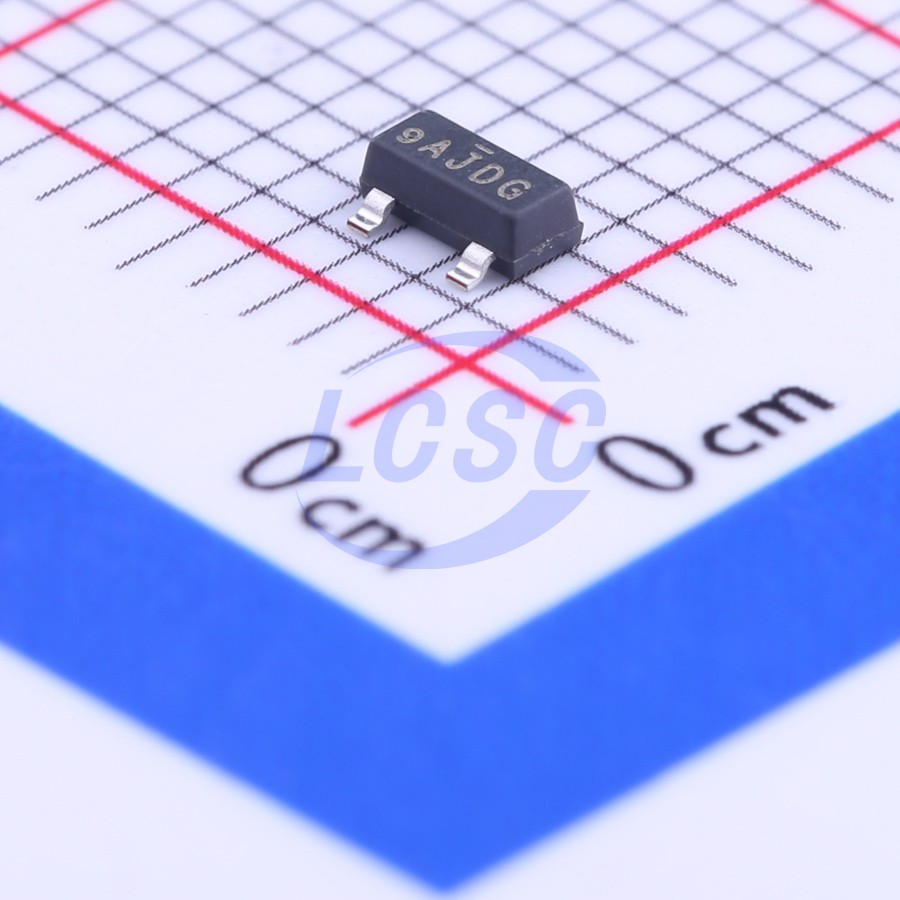

SQ2389ES-T1_GE3
P-Channel 40V 4.1A 3W Surface Mount SOT-23
SOT-23ROHS3 CompliantDiscontinued
MOSFET P-CH 40V 4.1A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2389ES-T1_GE3
- Store part #
- C142527
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,220 in stock
#C142527
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.07 | ₹225.35 |
| 50+ | ₹35.54 | ₹1,777.00 |
| 150+ | ₹31.46 | ₹4,719.00 |
| 500+ | ₹26.35 | ₹13,175.00 |
| 3,000+ | ₹24.09 | ₹72,270.00 |
| 6,000+ | ₹22.73 | ₹1,36,380.00 |
5 × ₹45.07
₹225.35
excl. GST
₹265.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2389ES-T1_GE3
₹225.35 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 84mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2389CES-T1_GE3#C26443717VISHAY · SOT-23 | VISHAY | SOT-23 | 2,331 | ₹54.73 · 2,331 in stock | View |
 | SP2319T2#C41354816Siliup · SOT-23 | Siliup | SOT-23 | 2,840 | ₹7.62 · 2,840 in stock | View |
 | SI2319DS#C5122037TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,620 | ₹11.14 · 7,620 in stock | View |
 | SQ2389ES-T1_BE3#C3290060VISHAY · SOT-23-3(TO-236-3) | VISHAY | SOT-23-3(TO-236-3) | 505 | ₹47.32 · 505 in stock | View |
 | JMTL850P04A#C2938480Jiangsu JieJie Microelectronics · SOT-23 | Jiangsu JieJie Microelectronics | SOT-23 | 9,000 | ₹7.82 · 9,000 in stock | View |
