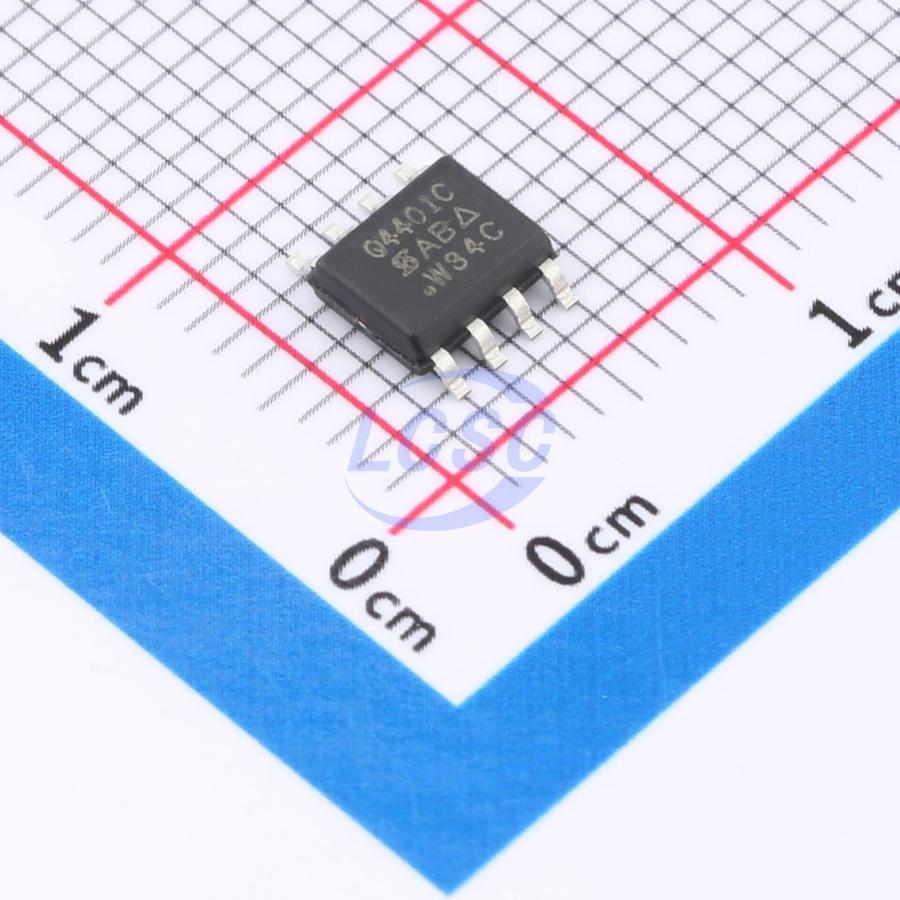

SQ4401CEY-T1_GE3
P-Channel 40V 17.3A 7.14W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 40V 17.3A SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ4401CEY-T1_GE3
- Store part #
- C20346164
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C20346164
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.16 | ₹264.16 |
| 10+ | ₹230.64 | ₹2,306.40 |
| 30+ | ₹212.16 | ₹6,364.80 |
| 100+ | ₹191.08 | ₹19,108.00 |
| 500+ | ₹181.85 | ₹90,925.00 |
| 1,000+ | ₹177.76 | ₹1,77,760.00 |
1 × ₹264.16
₹264.16
excl. GST
₹311.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SQ4401CEY-T1_GE3
₹264.16 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 17.3A
- Ciss-Input Capacitance
- 4.25nF
- Pd - Power Dissipation
- 7.14W
- Reverse Transfer Capacitance (Crss)
- 580pF
- RDS(on)
- 23mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 115nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
Applications
- Notebook adapter switching
- Notebook battery management
- Load switching
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ4401EY-T1_GE3#C5205499VISHAY · SO-8 | VISHAY | SO-8 | 511 | ₹223.16 · 511 in stock | View |
 | STP6621#C2682814STANSON Tech. · SOP-8 | STANSON Tech. | SOP-8 | 6,935 | ₹34.70 · 6,935 in stock | View |
 | SK22P04-P8#C5334595Shikues · SOP-8 | Shikues | SOP-8 | 1,545 | ₹24.08 · 1,545 in stock | View |
 | AP9563M-VB#C879179VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 23 | ₹86.87 · 23 in stock | View |
 | SP40P08P8#C41355191Siliup · SOP-8L | Siliup | SOP-8L | 3,990 | ₹19.18 · 3,990 in stock | View |
