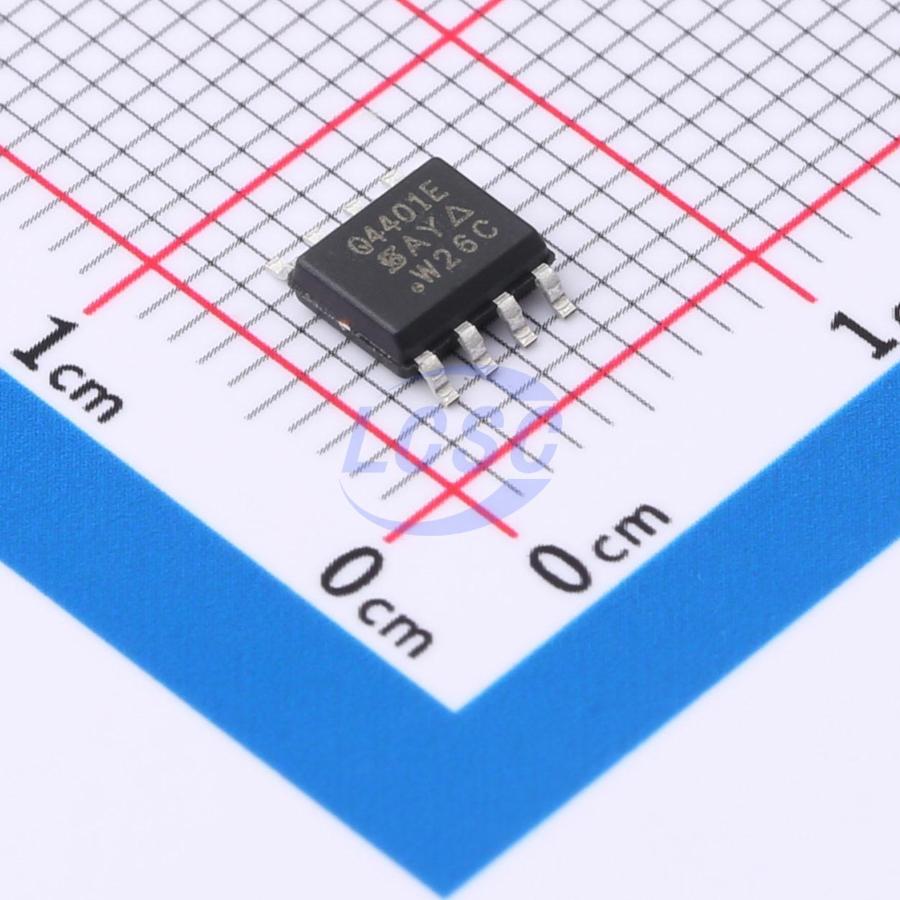

SQ4401EY-T1_GE3
P-Channel 40V 17.3A 7.14W Surface Mount SO-8
SO-8ROHS3 CompliantDiscontinued
MOSFET P-CH 40V 17.3A SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ4401EY-T1_GE3
- Store part #
- C5205499
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
511 in stock
#C5205499
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.16 | ₹223.16 |
| 10+ | ₹187.75 | ₹1,877.50 |
| 30+ | ₹168.19 | ₹5,045.70 |
| 100+ | ₹132.55 | ₹13,255.00 |
| 500+ | ₹122.77 | ₹61,385.00 |
| 1,000+ | ₹118.21 | ₹1,18,210.00 |
1 × ₹223.16
₹223.16
excl. GST
₹263.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SQ4401EY-T1_GE3
₹223.16 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 440pF
- Ciss-Input Capacitance
- 4.25nF
- Pd - Power Dissipation
- 7.14W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 17.3A
- Reverse Transfer Capacitance (Crss)
- 350pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 115nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Applications
- Switch
Key features
- TrenchFET Power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
