VISHAYDatasheet (PDF)

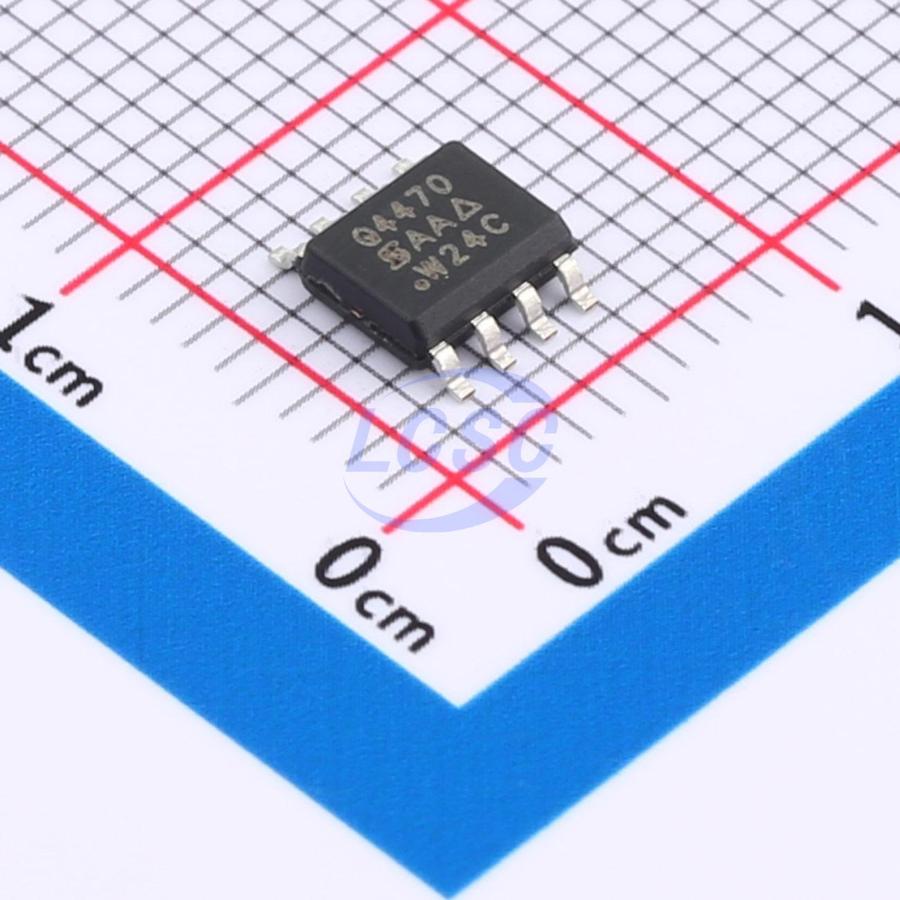

SQ4470EY-T1_GE3
N-Channel 60V 16A 7.1W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 60V 16A SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ4470EY-T1_GE3
- Store part #
- C3279882
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
271 in stock
#C3279882
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.62 | ₹174.62 |
| 10+ | ₹159.87 | ₹1,598.70 |
| 30+ | ₹150.54 | ₹4,516.20 |
| 100+ | ₹141.01 | ₹14,101.00 |
| 500+ | ₹136.67 | ₹68,335.00 |
| 1,000+ | ₹134.93 | ₹1,34,930.00 |
1 × ₹174.62
₹174.62
excl. GST
₹206.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SQ4470EY-T1_GE3
₹174.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 480pF
- Current - Continuous Drain(Id)
- 16A
- Ciss-Input Capacitance
- 3.165nF
- Pd - Power Dissipation
- 7.1W
- Reverse Transfer Capacitance (Crss)
- 195pF
- RDS(on)
- 14mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.128 g
Overview
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TW15N06S#C52117632TWGMC · SOP-8 | TWGMC | SOP-8 | 2,050 | ₹15.41 · 2,050 in stock | View | |
 | AO4240&5-VB#C22389072VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 46 | ₹94.96 · 46 in stock | View |
 | VBA1606#C7429142VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹131.49 · 10 in stock | View |
 | VBA1101N#C516883VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 46 | ₹114.48 · 46 in stock | View |
 | TPH14006NH,L1Q#C7125471TOSHIBA · SOP-8 | TOSHIBA | SOP-8 | 25 | ₹374.87 · 25 in stock | View |
