VISHAYDatasheet (PDF)

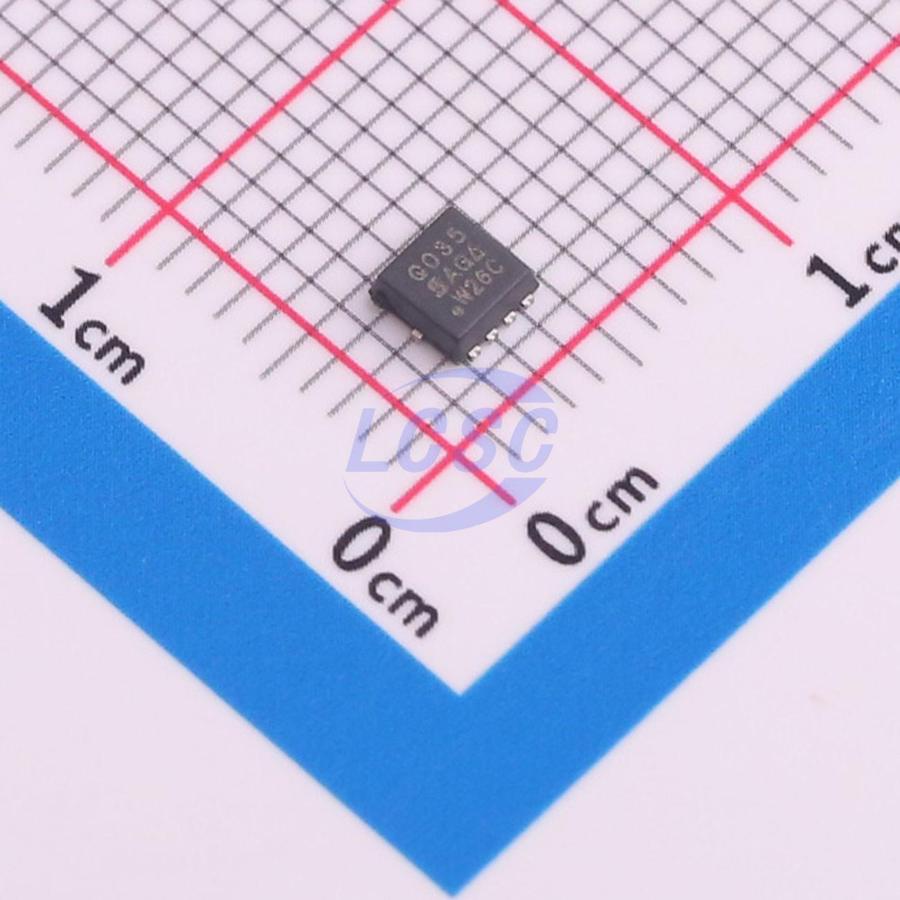

SQS411ENW-T1_GE3
P-Channel 40V 16A 39.5W Surface Mount PowerPAK1212-8W
PowerPAK1212-8WROHS3 CompliantActive
MOSFET P-CH 40V 16A PowerPAK1212-8W
- Manufacturer
- VISHAY
- Manufacturer part #
- SQS411ENW-T1_GE3
- Store part #
- C3279469
- Package / case
- PowerPAK1212-8W
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,029 in stock
#C3279469
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.98 | ₹107.98 |
| 10+ | ₹87.74 | ₹877.40 |
| 30+ | ₹77.73 | ₹2,331.90 |
| 100+ | ₹67.71 | ₹6,771.00 |
| 500+ | ₹61.61 | ₹30,805.00 |
| 1,000+ | ₹58.57 | ₹58,570.00 |
1 × ₹107.98
₹107.98
excl. GST
₹127.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQS411ENW-T1_GE3
₹107.98 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 16A
- Ciss-Input Capacitance
- 3.191nF
- Pd - Power Dissipation
- 39.5W
- Reverse Transfer Capacitance (Crss)
- 187pF
- RDS(on)
- 38mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 50nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.51 g
Overview
Applications
- Synchronous rectification
- Synchronous buck converter
- High power density DC/DC converter
- OR-ing diode function
- Load switch
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB4115#C2828497HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 6,030 | ₹52.05 · 6,030 in stock | View |
 | RQ3L070ATTB#C3288442ROHM · HSMT-8(3.2x3) | ROHM | HSMT-8(3.2x3) | 8 | ₹107.11 · 8 in stock | View |
 | SQS181ELNW-T1_GE3#C22414861VISHAY · PowerPAK1212-8SLW | VISHAY | PowerPAK1212-8SLW | 227 | ₹184.29 · 227 in stock | View |
 | NCE40P20Q#C2686564NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 3,870 | ₹66.56 · 3,870 in stock | View |
 | AGM40P25AP#C22386133AGMSEMI · PDFN3.3x3.3-8 | AGMSEMI | PDFN3.3x3.3-8 | 45 | ₹22.95 · 45 in stock | View |
