MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

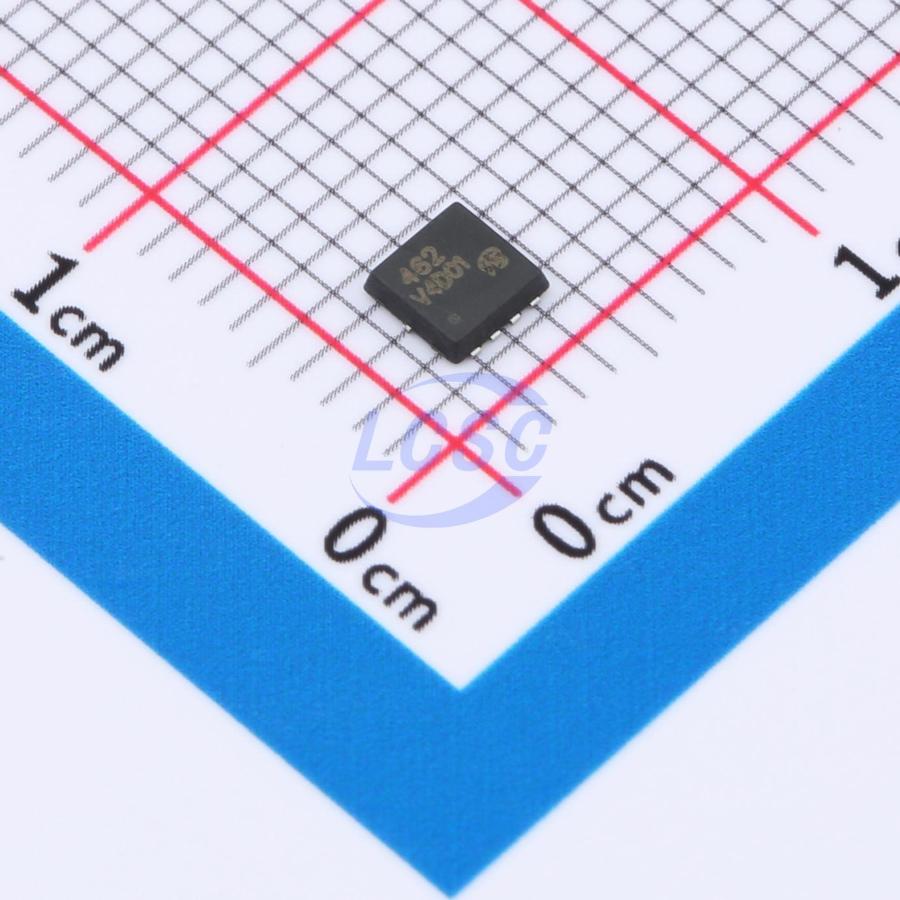

SQS462EN-T1-GE3-VB
60V 15A 13mΩ@4.5V 1 N-channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
MOSFET N-CH 60V 15A DFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SQS462EN-T1-GE3-VB
- Store part #
- C20755595
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C20755595
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.78 | ₹137.78 |
| 10+ | ₹117.34 | ₹1,173.40 |
| 30+ | ₹107.00 | ₹3,210.00 |
| 100+ | ₹96.67 | ₹9,667.00 |
| 500+ | ₹71.69 | ₹35,845.00 |
| 1,000+ | ₹68.47 | ₹68,470.00 |
1 × ₹137.78
₹137.78
excl. GST
₹162.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SQS462EN-T1-GE3-VB
₹137.78 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 2.65nF
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 13mΩ@4.5V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Power Switches - DC/DC Converters
Key features
- Junction temperature 175°C
- Trench power MOSFET
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ7414CENW-T1_GE3-VB#C22395898VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹102.93 · 10 in stock | View |
 | SIS862DN-T1-GE3-VB#C22396008VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 8 | ₹123.00 · 8 in stock | View |
 | NVTFS5C673NLTAG-VB#C22396076VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹107.14 · 10 in stock | View |
 | NVTFS5C680NLTAG-VB#C22396077VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹85.92 · 10 in stock | View |
 | CSD18543Q3AT-VB#C45662503VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 8 | ₹126.69 · 8 in stock | View |
