VISHAY

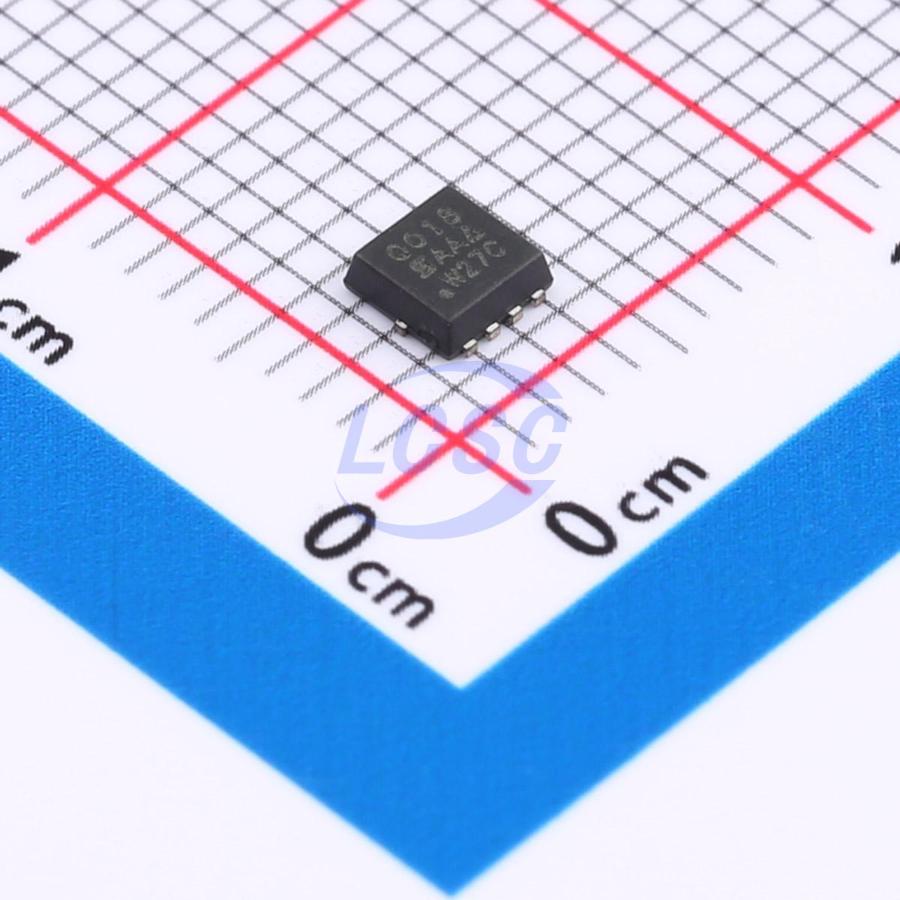

SQS840EN-T1_GE3

N-Channel 40V 12A 33W Surface Mount PowerPAK1212-8

PowerPAK1212-8ROHS3 CompliantActive

MOSFET N-CH 40V 12A PowerPAK1212-8

Manufacturer: VISHAY
Manufacturer part #: SQS840EN-T1_GE3
Store part #: C727476
Package / case: PowerPAK1212-8
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

728 in stock

#C727476

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹86.72	₹86.72
10+	₹77.04	₹770.40
30+	₹72.09	₹2,162.70
100+	₹67.14	₹6,714.00
500+	₹64.14	₹32,070.00
1,000+	₹62.63	₹62,630.00

Quantity (min 1)

1 × ₹86.72

₹86.72

excl. GST

₹102.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SQS840EN-T1_GE3

₹86.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 131pF
Ciss-Input Capacitance: 1.031nF
Pd - Power Dissipation: 33W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 40V
Current - Continuous Drain(Id): 12A
Reverse Transfer Capacitance (Crss): 73pF
RDS(on): 20mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 22.5nC@10V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 2.5V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.068 g

Overview

MOSFETs for switching applications are now available with die on resistances around 1 mΩ and with the capability to handle 85 A. PowerPAK is a new package technology that addresses these issues. The PowerPAK 1212-8 provides ultra-low thermal impedance in a small package that is ideal for space-constrained applications.

Key features

TrenchFET power MOSFET
AEC-Q101 qualified
100 % Rg and UIS tested

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SQS840CENW-T1_GE3#C3279468VISHAY · PowerPAK1212-8W	VISHAY	PowerPAK1212-8W	20	₹153.73 · 20 in stock	View
SQ7414CENW-T1_GE3#C727497VISHAY · PowerPAK-1212-8W	VISHAY	PowerPAK-1212-8W	33,358	₹65.33 · 33,358 in stock	View
SQSA80ENW-T1_GE3#C511563VISHAY · PowerPAK-1212-8W	VISHAY	PowerPAK-1212-8W	1,381	₹141.93 · 1,381 in stock	View
JMTQ35N06A#C2890411Jiangsu JieJie Microelectronics · PDFN3.3x3.3-8L	Jiangsu JieJie Microelectronics	PDFN3.3x3.3-8L	610	₹27.88 · 610 in stock	View
SQSA84CENW-T1_GE3#C20346183VISHAY · PowerPAK1212-8W	VISHAY	PowerPAK1212-8W	2,614	₹88.30 · 2,614 in stock	View
