VISHAYDatasheet (PDF)

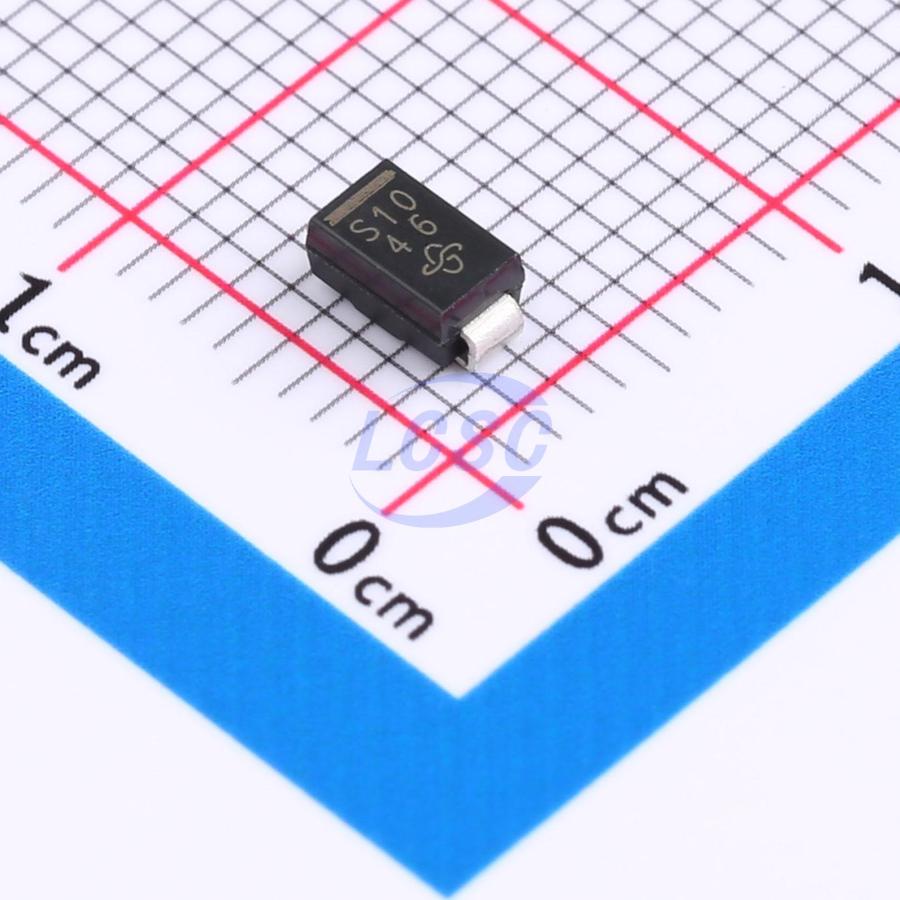

SS1H10-E3/61T
Diode 1 Independent 100V 1A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 100V SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS1H10-E3/61T
- Store part #
- C53531
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C53531
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.90 | ₹79.50 |
| 50+ | ₹12.98 | ₹649.00 |
| 150+ | ₹11.51 | ₹1,726.50 |
| 500+ | ₹10.41 | ₹5,205.00 |
| 1,800+ | ₹9.54 | ₹17,172.00 |
| 5,400+ | ₹9.10 | ₹49,140.00 |
5 × ₹15.90
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SS1H10-E3/61T
₹79.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 770mV@1A
- Reverse Leakage Current (Ir)
- 1uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
Overview
Applications
- Low-voltage high-frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Low-profile package
- Suitable for automatic placement
- Guard ring for overvoltage protection
- Low power dissipation, high efficiency
- Low forward voltage drop
- Low leakage current
- High surge capability
- Meets MSL Level 1 per J-STD-020, LF max peak 260℃
- AEC-Q101 qualified version available
- Automotive ordering code: base P/N HE3
- Material categorization: see relevant documentation for compliance definitions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS1H10-E3/5AT#C467993VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 355 | ₹26.90 · 355 in stock | View |
 | STPS1150AY#C2970353ST · DO-214AC | ST | DO-214AC | 15 | ₹34.12 · 15 in stock | View |
 | STPS1150A#C315151ST · SMA | ST | SMA | 2,620 | ₹20.10 · 2,620 in stock | View |
 | SS1H10HE3_B/H#C3151624VISHAY · DO-214AC | VISHAY | DO-214AC | 905 | ₹37.94 · 905 in stock | View |
 | SS1H10-M3/61T#C3758724VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 5 | ₹45.64 · 5 in stock | View |
