VISHAYDatasheet (PDF)

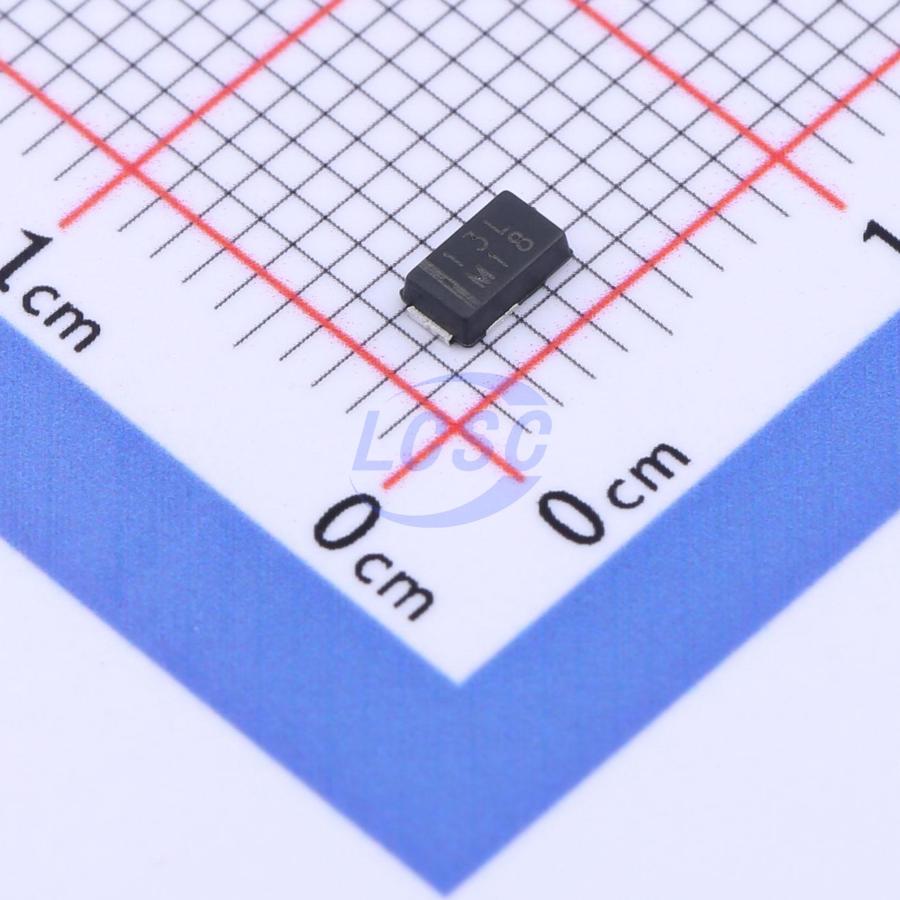

SS1P3L-M3/84A
Diode 1 Independent 30V 1.5A Surface Mount DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
DIODE SCHOTTKY 30V DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS1P3L-M3/84A
- Store part #
- C2875475
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,385 in stock
#C2875475
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.08 | ₹195.40 |
| 50+ | ₹29.53 | ₹1,476.50 |
| 150+ | ₹25.43 | ₹3,814.50 |
| 500+ | ₹20.32 | ₹10,160.00 |
| 3,000+ | ₹17.08 | ₹51,240.00 |
| 6,000+ | ₹15.72 | ₹94,320.00 |
5 × ₹39.08
₹195.40
excl. GST
₹230.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS1P3L-M3/84A
₹195.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 450mV@1A
- Reverse Leakage Current (Ir)
- 200uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
Applications
- low voltage high frequency inverters
- freewheeling
- DC/DC converters
- polarity protection applications
Key features
- Very low profile - typical height of 1.0mm
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- Low thermal resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS3P3HM3/84A#C5925464VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 60 | ₹24.22 · 60 in stock | View |
 | SS2P3L-M3/84A#C3758734VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,647 | ₹56.85 · 2,647 in stock | View |
 | SS2P4-M3/84A#C222485VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 3 | ₹28.29 · 3 in stock | View |
 | SS3P4-M3/84A#C968653VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 875 | ₹31.92 · 875 in stock | View |
| V2PM12LHM3/H#C3759721VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 24 | ₹54.86 · 24 in stock | View | |
