VISHAYDatasheet (PDF)

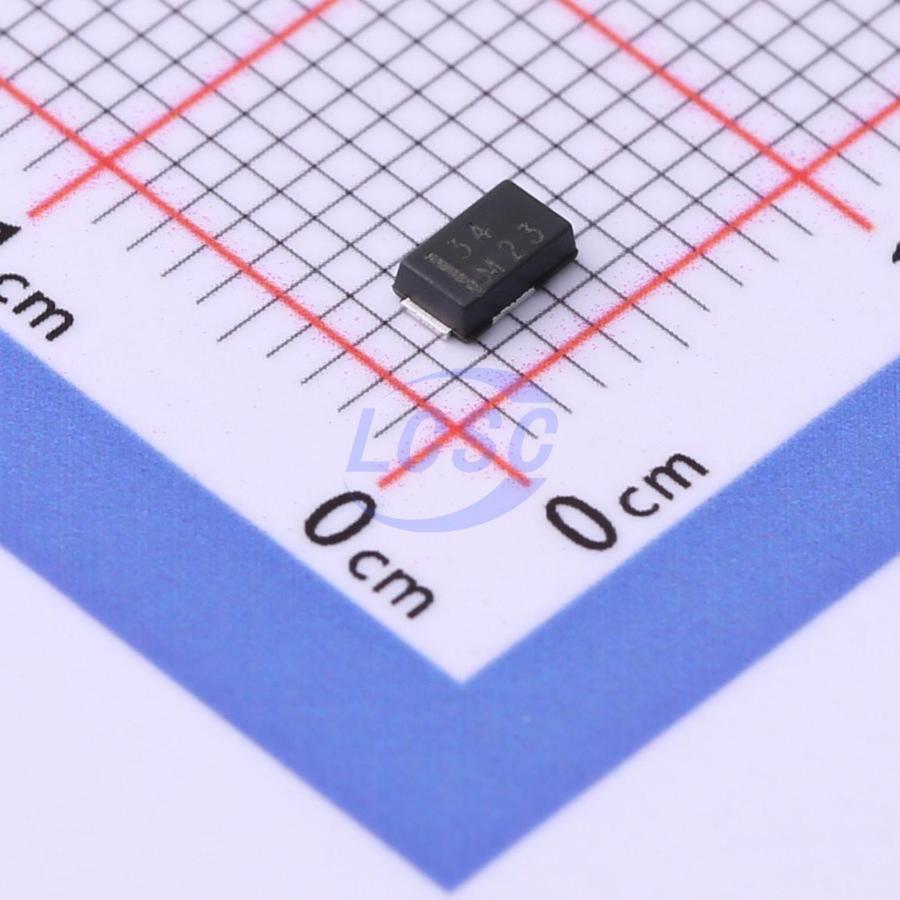

SS3P4-M3/84A
Diode 1 Independent 40V 3A SMP(DO-220AA)
SMP(DO-220AA)ROHS3 CompliantActive
DIODE SCHOTTKY 40V SMP(DO-220AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS3P4-M3/84A
- Store part #
- C968653
- Package / case
- SMP(DO-220AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
875 in stock
#C968653
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.92 | ₹159.60 |
| 50+ | ₹27.52 | ₹1,376.00 |
| 150+ | ₹25.64 | ₹3,846.00 |
| 500+ | ₹23.28 | ₹11,640.00 |
| 3,000+ | ₹22.24 | ₹66,720.00 |
| 6,000+ | ₹21.60 | ₹1,29,600.00 |
5 × ₹31.92
₹159.60
excl. GST
₹188.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS3P4-M3/84A
₹159.60 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - Forward(Vf@If)
- 500mV@3A
- Reverse Leakage Current (Ir)
- 150uA@40V
- Current - Rectified
- 3A
- Non-Repetitive Peak Forward Surge Current
- 50A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Very low profile - typical height of 1.0 mm
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- Low thermal resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS3P4HM3/84A#C3039717VISHAY · DO-220AA | VISHAY | DO-220AA | 682 | ₹41.21 · 682 in stock | View |
| V3PL45-M3/H#C3757230VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 75 | ₹35.62 · 75 in stock | View | |
 | V3PL45HM3/H#C3759543VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 55 | ₹51.90 · 55 in stock | View |
 | V3PM6-M3/H#C6014182VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 85 | ₹23.31 · 85 in stock | View |
 | SS3P6HM3/85A#C2981051VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,100 | ₹15.24 · 2,100 in stock | View |
