VISHAYDatasheet (PDF)

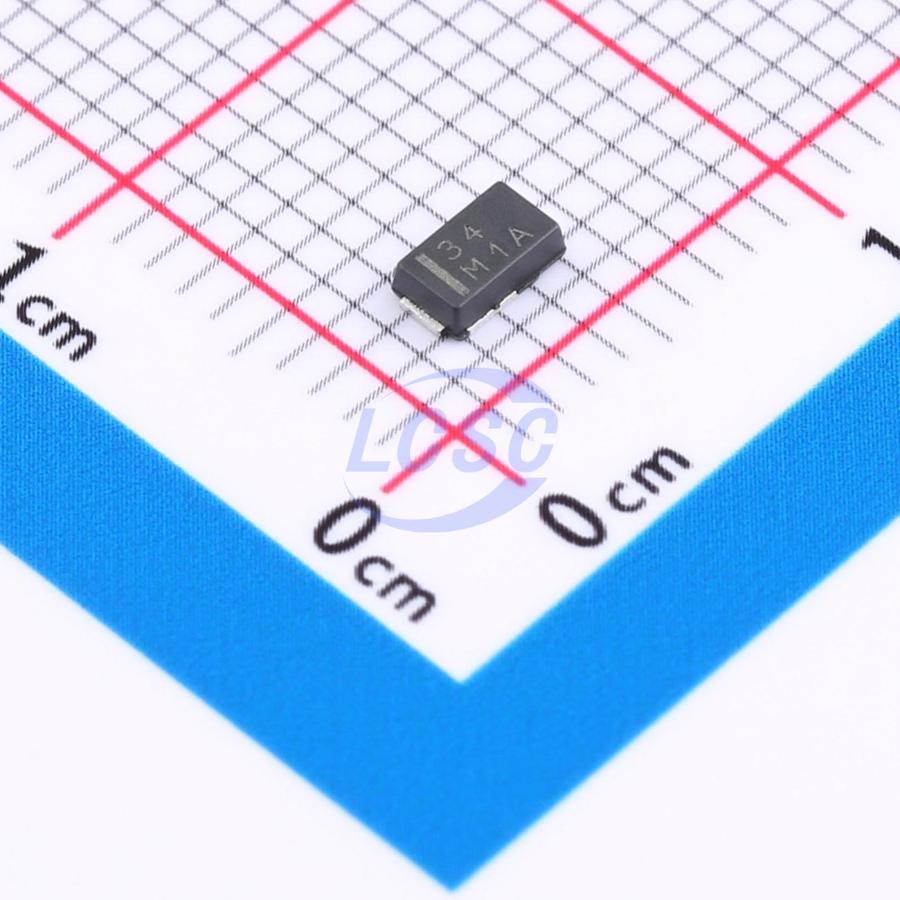

SS3P4HM3/84A
Diode 1 Independent 40V 3A Surface Mount DO-220AA
DO-220AAROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-220AA
- Manufacturer
- VISHAY
- Manufacturer part #
- SS3P4HM3/84A
- Store part #
- C3039717
- Package / case
- DO-220AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
682 in stock
#C3039717
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹41.21 | ₹41.21 |
| 10+ | ₹37.12 | ₹371.20 |
| 30+ | ₹35.38 | ₹1,061.40 |
| 100+ | ₹33.19 | ₹3,319.00 |
| 500+ | ₹32.23 | ₹16,115.00 |
| 1,000+ | ₹20.43 | ₹20,430.00 |
1 × ₹41.21
₹41.21
excl. GST
₹48.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS3P4HM3/84A
₹41.21 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 600mV@3A
- Reverse Leakage Current (Ir)
- 150uA@40V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.056 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Very low profile
- typical height of 1.0 mm
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- Low thermal resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS3P4-M3/84A#C968653VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 875 | ₹31.92 · 875 in stock | View |
 | SS3P6HM3/85A#C2981051VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,100 | ₹15.24 · 2,100 in stock | View |
 | V3P6HM3_A/H#C3759369VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 1,155 | ₹37.37 · 1,155 in stock | View |
| V3PL45-M3/H#C3757230VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 75 | ₹35.62 · 75 in stock | View | |
 | V3PL45HM3/H#C3759543VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 55 | ₹51.90 · 55 in stock | View |
