VISHAYDatasheet (PDF)

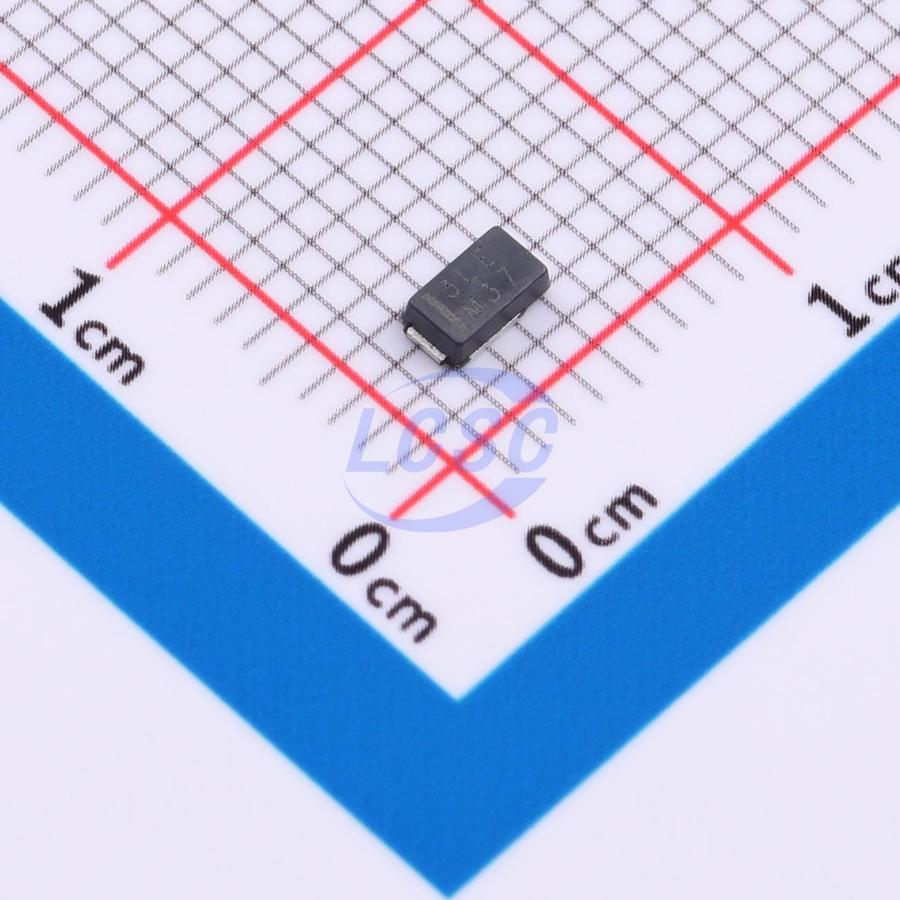

V3PL45HM3/H
1 Independent 45V 540mV@3A 3A DO-220AA(SMP) Single Diodes RoHS
DO-220AA(SMP)ROHS3 CompliantActive
DIODE SCHOTTKY 45V DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- V3PL45HM3/H
- Store part #
- C3759543
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C3759543
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.90 | ₹259.50 |
| 50+ | ₹41.21 | ₹2,060.50 |
| 150+ | ₹36.62 | ₹5,493.00 |
| 500+ | ₹30.91 | ₹15,455.00 |
| 3,000+ | ₹28.35 | ₹85,050.00 |
| 6,000+ | ₹26.83 | ₹1,60,980.00 |
5 × ₹51.90
₹259.50
excl. GST
₹306.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
V3PL45HM3/H
₹259.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 540mV@3A
- Reverse Leakage Current (Ir)
- 450uA@45V
- Current - Rectified
- 3A
- Non-Repetitive Peak Forward Surge Current
- 80A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.562 g
Overview
Applications
- For use in low-voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Thin package
- Trench MOS Schottky technology
- Low power loss, high efficiency
- Low forward voltage drop
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified parts available
- Automotive grade ordering code; base part number HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| V3PL45-M3/H#C3757230VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 75 | ₹35.62 · 75 in stock | View | |
 | V3PM6-M3/H#C6014182VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 85 | ₹23.31 · 85 in stock | View |
 | SS3P6HM3/85A#C2981051VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,100 | ₹15.24 · 2,100 in stock | View |
 | V3P6HM3_A/H#C3759369VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 1,155 | ₹37.37 · 1,155 in stock | View |
 | V3PM63-M3/H#C20039100VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 296 | ₹70.73 · 296 in stock | View |
