VISHAYDatasheet (PDF)

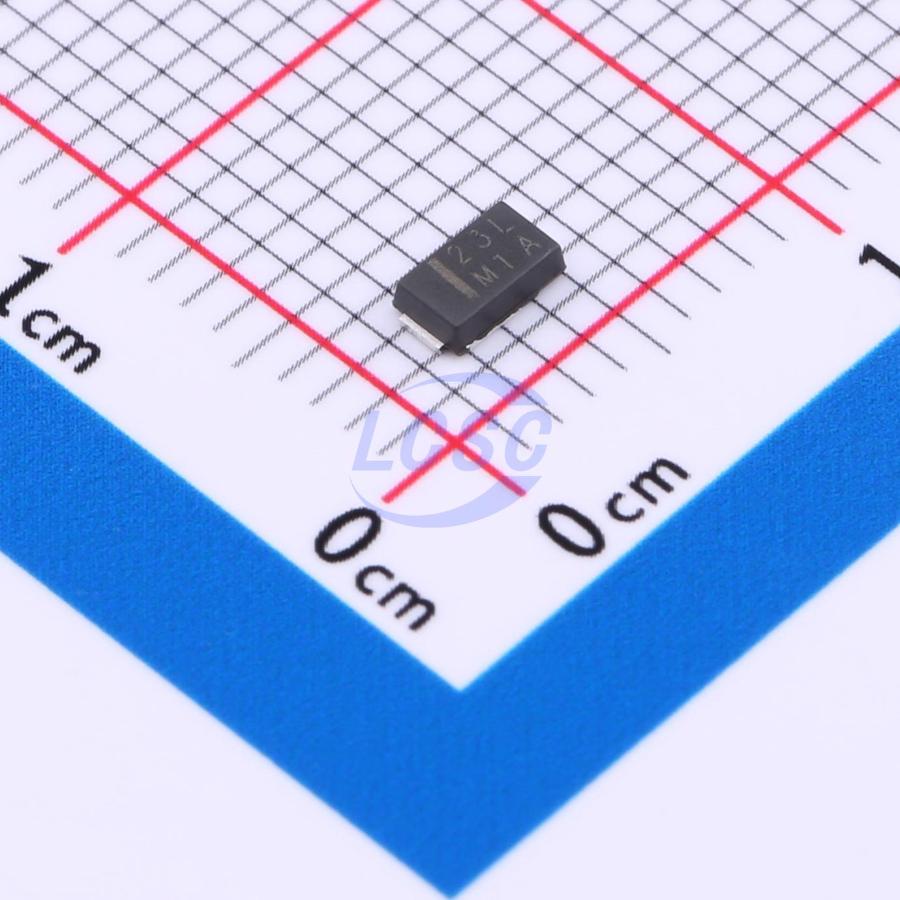

SS2P3L-M3/84A
Diode 1 Independent 30V 2A Surface Mount DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
DIODE SCHOTTKY 30V DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS2P3L-M3/84A
- Store part #
- C3758734
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,647 in stock
#C3758734
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.85 | ₹56.85 |
| 10+ | ₹44.92 | ₹449.20 |
| 30+ | ₹39.70 | ₹1,191.00 |
| 100+ | ₹33.42 | ₹3,342.00 |
| 500+ | ₹30.60 | ₹15,300.00 |
| 1,000+ | ₹25.18 | ₹25,180.00 |
1 × ₹56.85
₹56.85
excl. GST
₹67.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS2P3L-M3/84A
₹56.85 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 500mV@2A
- Reverse Leakage Current (Ir)
- 200uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Very low profile - typical height of 1.0mm
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- Low thermal resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS3P3HM3/84A#C5925464VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 60 | ₹24.22 · 60 in stock | View |
 | SS2P4-M3/84A#C222485VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 3 | ₹28.29 · 3 in stock | View |
 | SS3P4-M3/84A#C968653VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 875 | ₹31.92 · 875 in stock | View |
 | SS2P3-M3/84A#C3009101VISHAY · DO-220AA | VISHAY | DO-220AA | 30 | ₹69.17 · 30 in stock | View |
 | SS2P4HM3/84A#C467996VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 2,230 | ₹17.90 · 2,230 in stock | View |
