VISHAYDatasheet (PDF)

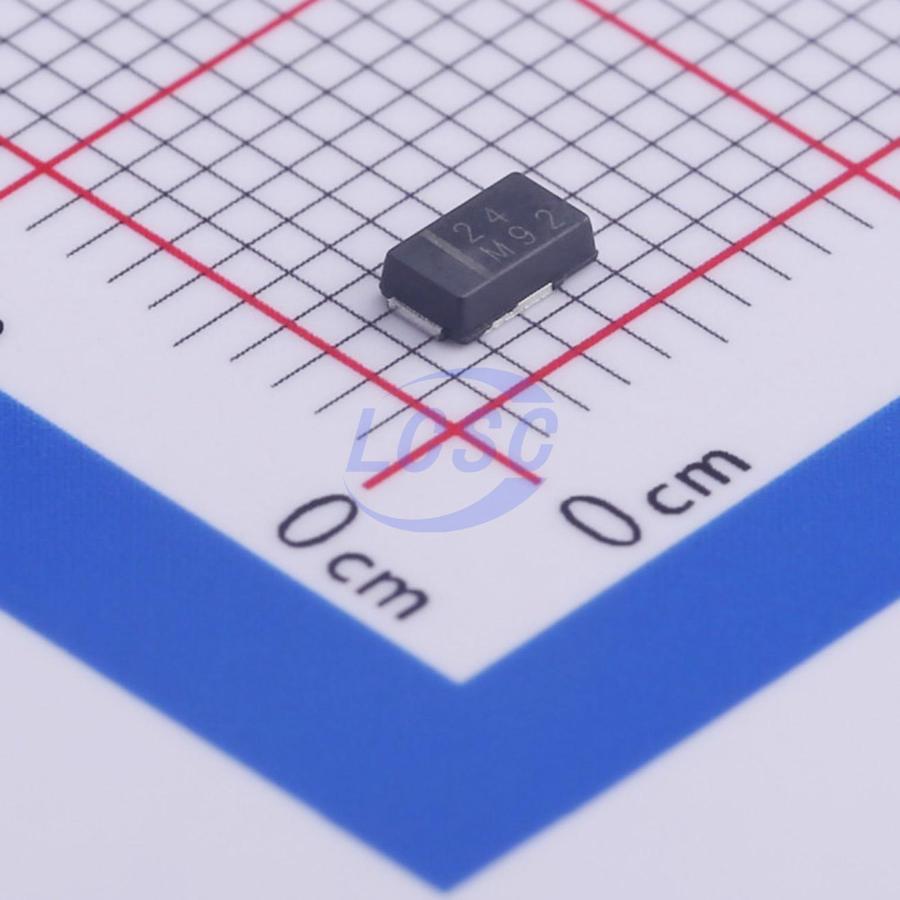

SS2P4HM3/84A
Diode 1 Independent 40V 2A Surface Mount DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS2P4HM3/84A
- Store part #
- C467996
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C467996
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.90 | ₹89.50 |
| 50+ | ₹15.48 | ₹774.00 |
| 150+ | ₹14.43 | ₹2,164.50 |
| 500+ | ₹13.15 | ₹6,575.00 |
| 3,000+ | ₹12.57 | ₹37,710.00 |
| 6,000+ | ₹12.22 | ₹73,320.00 |
5 × ₹17.90
₹89.50
excl. GST
₹105.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS2P4HM3/84A
₹89.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 550mV@2A
- Reverse Leakage Current (Ir)
- 150uA@40V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Very low profile
- typical height of 1.0mm
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- Low thermal resistance
- Meets MSL level 1 per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS2P4-M3/84A#C222485VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 3 | ₹28.29 · 3 in stock | View |
 | SS3P4HM3/84A#C3039717VISHAY · DO-220AA | VISHAY | DO-220AA | 682 | ₹41.21 · 682 in stock | View |
 | SS3P4-M3/84A#C968653VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 875 | ₹31.92 · 875 in stock | View |
 | SS2P6HM3/84A#C2981060VISHAY · DO-220AA | VISHAY | DO-220AA | 860 | ₹48.58 · 860 in stock | View |
| V2PM12LHM3/H#C3759721VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | 24 | ₹54.86 · 24 in stock | View | |
