VISHAYDatasheet (PDF)

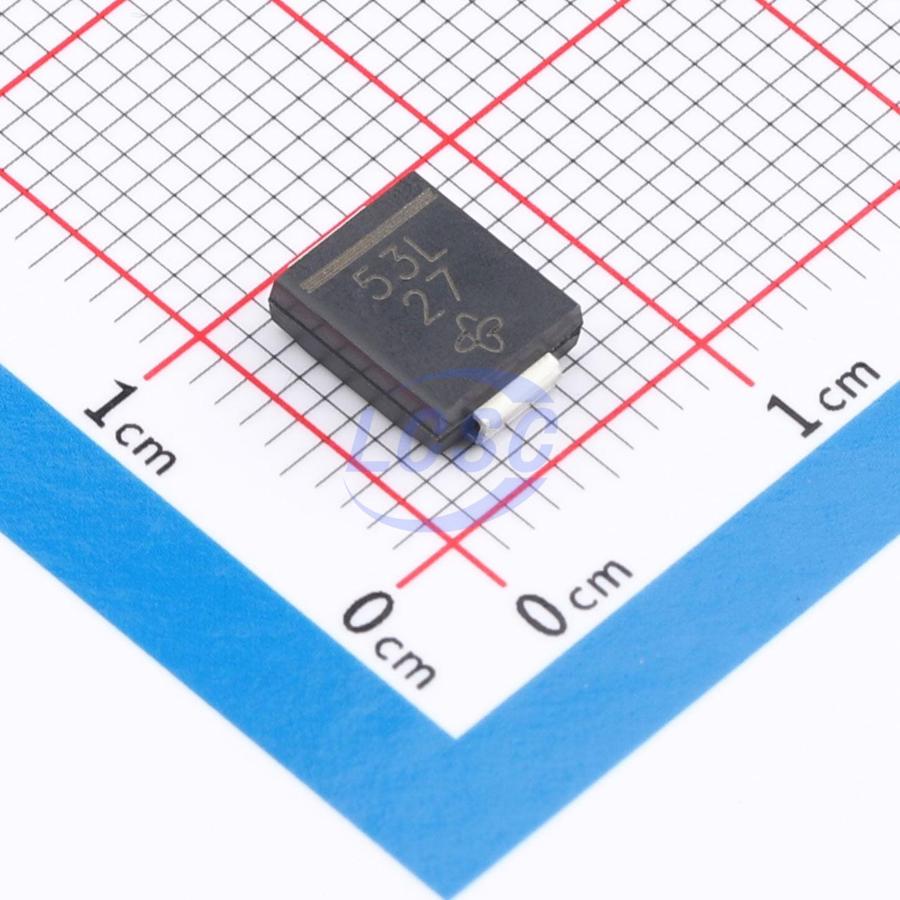

SSC53L-E3/9AT
1 Independent 30V 450mV@5A 5A DO-214AB(SMC) Single Diodes RoHS
DO-214AB(SMC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SSC53L-E3/9AT
- Store part #
- C5760689
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5760689
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.40 | ₹152.40 |
| 10+ | ₹128.33 | ₹1,283.30 |
| 30+ | ₹116.50 | ₹3,495.00 |
| 100+ | ₹104.46 | ₹10,446.00 |
| 500+ | ₹97.37 | ₹48,685.00 |
| 1,000+ | ₹93.72 | ₹93,720.00 |
1 × ₹152.40
₹152.40
excl. GST
₹179.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
SSC53L-E3/9AT
₹152.40 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 450mV@5A
- Reverse Leakage Current (Ir)
- 700uA@30V
- Non-Repetitive Peak Forward Surge Current
- 175A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Applications
- For use in low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Very low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSC53L-E3/57T#C145430VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 30 | ₹163.05 · 30 in stock | View |
 | SSC54-E3/57T#C222482VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 3,355 | ₹47.69 · 3,355 in stock | View |
 | SSC54HE3_A/H#C3757696VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 110 | ₹43.75 · 110 in stock | View |
 | SSC54-M3/57T#C3758659VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 106 | ₹110.92 · 106 in stock | View |
 | B540C#C5338484SUNMATE Elec · SMC | SUNMATE Elec | SMC | 13,200 | ₹17.58 · 13,200 in stock | View |
