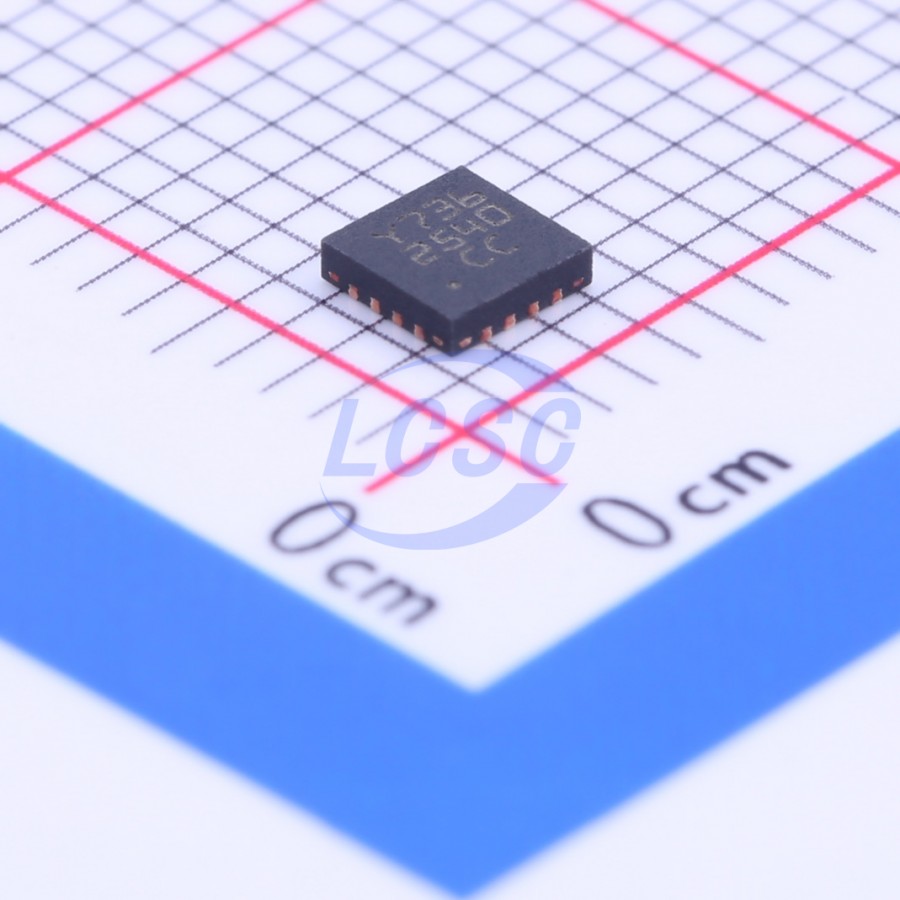

STCC2540IQTR

2.8A Charging IC VFQFPN-16(2.9x2.9) Power Distribution Switches, Load Drivers RoHS

VFQFPN-16(2.9x2.9)ROHS CompliantActive

USB charging controller with integrated power switch

Manufacturer: ST
Manufacturer part #: STCC2540IQTR
Store part #: C155666
Package / case: VFQFPN-16(2.9x2.9)
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,847 in stock

#C155666

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
1+	₹165.90	₹165.90
10+	₹151.55	₹1,515.50
30+	₹142.54	₹4,276.20
100+	₹133.11	₹13,311.00
500+	₹129.05	₹64,525.00
1,000+	₹127.11	₹1,27,110.00

Quantity (min 1)

1 × ₹165.90

₹165.90

excl. GST

₹195.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STCC2540IQTR

₹165.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Soft-start;Programmable charging current;Short-Circuit Protection;Reverse current blocking;Under-voltage lockout;Output discharge function
0V Battery Charge: Not supported
Operating Voltage: 4.5V~5.5V
Charge Current - Max: 2.8A
Quiescent Current (Iq): 200nA
Type: Charging IC

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.36 g

Overview

The STCC2540 device integrates, in one package, a UsB charger controller, a wide bandwidth data switch, and a high current power switch. The device emulates several profiles compatible with the USB battery charging standard, BC1.2, Chinese telecommunications standard YD/T 1591-2009, and proprietary charger modes. The device asserts the charging flag in DCP modes if the charging current is higher than the threshold. In CDP mode, it asserts the charging flag after the CDP negotiation if the charging current is higher than the threshold. After the current drops below the threshold, the output is deasserted, allowing the host to turn off the high power DC-DC converter and reduce overall consumption in S4/S5 states, which is critical when the host is battery supplied.

Applications

USB ports / hubs
Personal computers, all-in-one PCs
Monitors
Notebooks, ultrabooks
Tablet PCs
Universal wall charging adapters

Key features

Compliant with USB charging specifications BC1.2, USB 2.0 and USB 3.0 standards
Compliant with Chinese telecommunications industry standard YD/T 1591-2009
Compatible with proprietary charging mode (Apple 1 A / 2 A, BlackBerry, Korean tablets)
Wide bandwidth, low-loss USB 2.0 data switch
Integrated VBus power switch with low RON of 65 mΩ
Constant current mode overcurrent protection
Soft-start to limit inrush current
Adjustable current limit up to 2.8 A
Short-circuit, thermal and undervoltage protection
Reverse voltage and reverse current protection
Deglitched fault reporting output
Supports remote wakeup in S3
Charging indication output in DCP and CDP modes
Package: VFQFPN 16L 3×3×0.8 mm with exposed pad
Temperature range: -40 up to 85 °C
UL and CB recognized components (UL file number: E354278)
