STDatasheet (PDF)

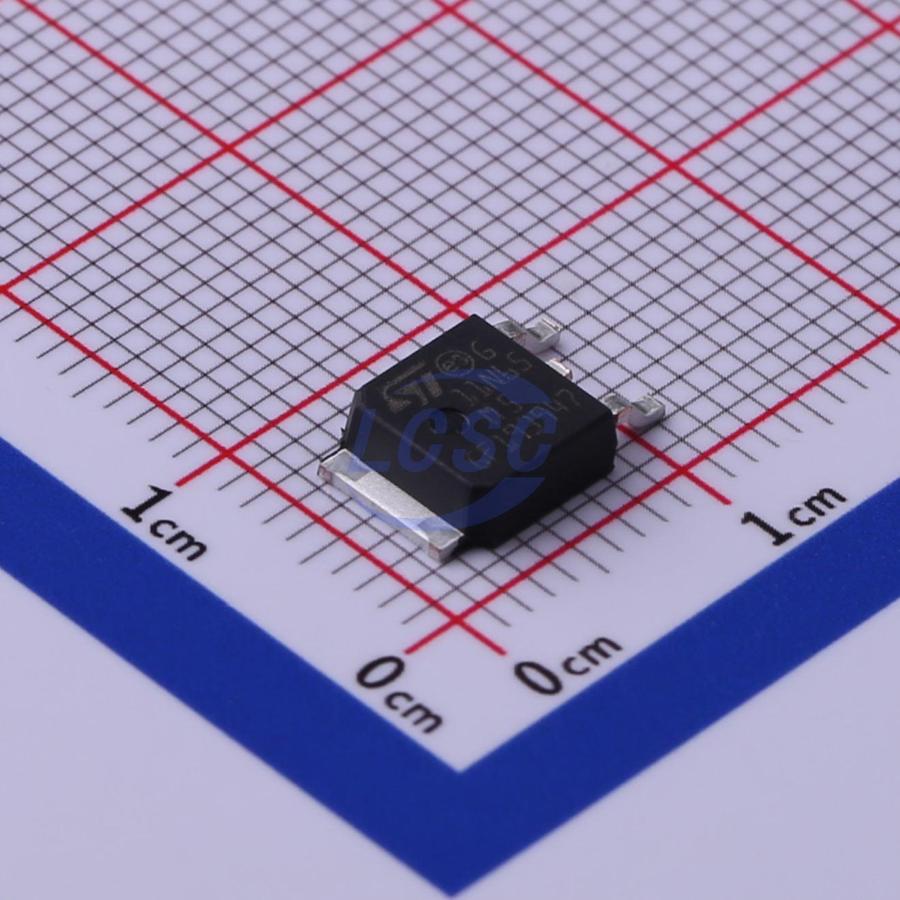

STD11N65M5
N-Channel 650V 9A 25W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 650V 9A TO-252(DPAK)
- Manufacturer
- ST
- Manufacturer part #
- STD11N65M5
- Store part #
- C495233
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
141 in stock
#C495233
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹233.58 | ₹233.58 |
| 10+ | ₹196.00 | ₹1,960.00 |
| 30+ | ₹172.39 | ₹5,171.70 |
| 100+ | ₹148.35 | ₹14,835.00 |
| 500+ | ₹137.39 | ₹68,695.00 |
| 1,000+ | ₹132.67 | ₹1,32,670.00 |
1 × ₹233.58
₹233.58
excl. GST
₹275.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD11N65M5
₹233.58 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 644pF
- Pd - Power Dissipation
- 25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 480mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.47 g
Overview
These devices are N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical process technology combined with the well-known PowerMESH™ horizontal layout. The resulting products offer extremely low on-resistance, making them particularly suitable for applications requiring high power and superior efficiency.
Applications
- Switching applications
Key features
- Extremely low RDS(on)
- Low gate charge and input capacitance
- Excellent switching performance
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD12N60DM2AG#C495234ST · TO-252 | ST | TO-252 | 67 | ₹358.39 · 67 in stock | View |
 | OSG65R380DEF#C708899ORIENTAL SEMI · TO-252 | ORIENTAL SEMI | TO-252 | 2,360 | ₹81.50 · 2,360 in stock | View |
 | IPD70R360P7S#C151509Infineon · TO-252 | Infineon | TO-252 | 5,286 | ₹99.28 · 5,286 in stock | View |
 | BMD65N380E2#C49164819Bestirpower · DPAK | Bestirpower | DPAK | 94 | ₹52.15 · 94 in stock | View |
 | STD13N65M2#C2970253ST · DPAK | ST | DPAK | 29 | ₹166.67 · 29 in stock | View |
