STDatasheet (PDF)

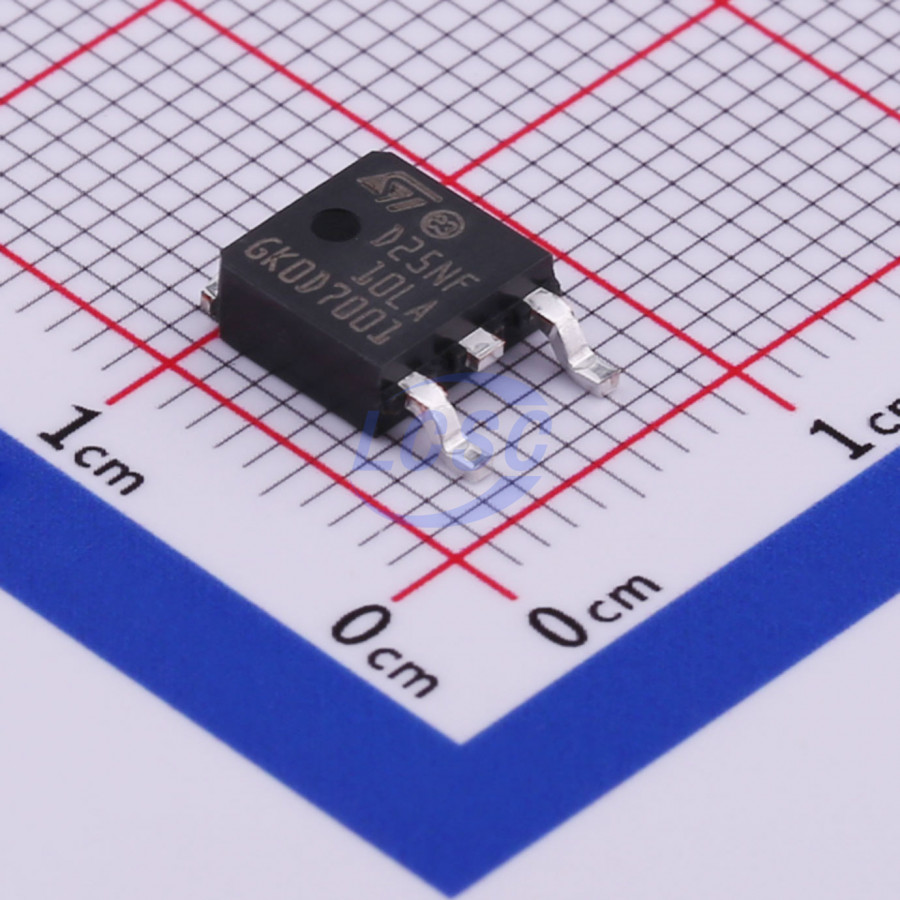

STD25NF10LA
N-Channel 100V 25A 100W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 100V 25A TO-252(DPAK)
- Manufacturer
- ST
- Manufacturer part #
- STD25NF10LA
- Store part #
- C140392
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C140392
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹388.98 | ₹388.98 |
| 10+ | ₹342.58 | ₹3,425.80 |
| 30+ | ₹313.74 | ₹9,412.20 |
| 100+ | ₹284.03 | ₹28,403.00 |
| 500+ | ₹270.80 | ₹1,35,400.00 |
| 1,000+ | ₹264.96 | ₹2,64,960.00 |
1 × ₹388.98
₹388.98
excl. GST
₹459.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD25NF10LA
₹388.98 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 250pF
- Ciss-Input Capacitance
- 1.71nF
- Pd - Power Dissipation
- 100W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 25A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 40mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@5V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.394 g
Overview
This Power MOSFET has been developed using STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the device suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, and applications with low gate charge driving requirements.
Applications
- Switching application
- Automotive
Key features
- Exceptional dv/dt capability
- 100% avalanche tested
- Logic level device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD25NF10T4#C435948ST · DPAK | ST | DPAK | 2,660 | ₹158.42 · 2,660 in stock | View |
 | AOD482#C89735AOS · TO-252-2(DPAK) | AOS | TO-252-2(DPAK) | 4,654 | ₹61.57 · 4,654 in stock | View |
 | XRS80N10#C42457080XNRUSEMI · TO252-3L | XNRUSEMI | TO252-3L | 435 | ₹49.94 · 435 in stock | View |
 | VBE1104NC#C967490VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 11 | ₹105.87 · 11 in stock | View |
 | CMD482#C6939694Cmos · TO-252 | Cmos | TO-252 | 305 | ₹37.56 · 305 in stock | View |
