STDatasheet (PDF)

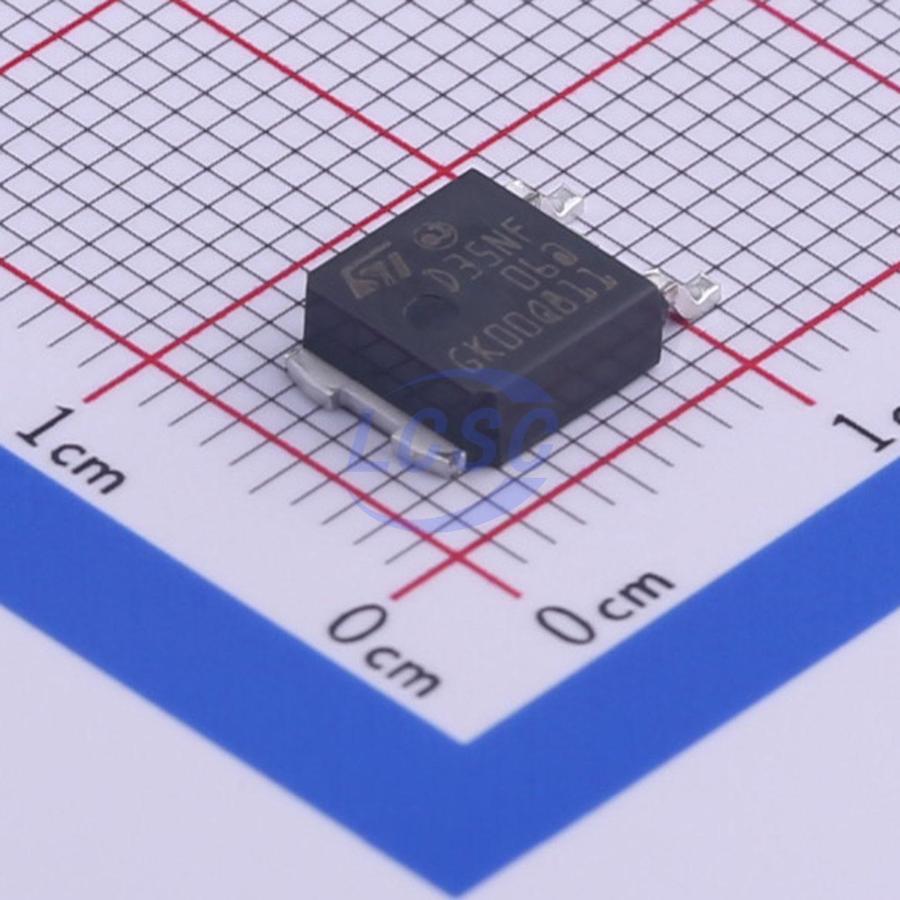

STD35NF06T4
N-Channel 60V 35A 80W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 60V 35A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD35NF06T4
- Store part #
- C435949
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C435949
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.22 | ₹134.22 |
| 10+ | ₹112.15 | ₹1,121.50 |
| 30+ | ₹100.01 | ₹3,000.30 |
| 100+ | ₹86.44 | ₹8,644.00 |
| 500+ | ₹80.37 | ₹40,185.00 |
| 1,000+ | ₹77.74 | ₹77,740.00 |
1 × ₹134.22
₹134.22
excl. GST
₹158.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD35NF06T4
₹134.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 300pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 80W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.538 g
Overview
This Power MOSFET is the latest development of unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Applications
- Switching application
Key features
- Exceptional dv/dt capability
- Application oriented characterization
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IRFR2607ZTRPBF#C537961Infineon · DPAK | Infineon | DPAK | 10 | ₹373.14 · 10 in stock | View | |
 | FDD86580-F085#C903597onsemi · DPAK(TO-252) | onsemi | DPAK(TO-252) | 61 | ₹148.96 · 61 in stock | View |
| IRFR540ZTRLPBF#C537984Infineon · DPAK | Infineon | DPAK | 682 | ₹124.28 · 682 in stock | View | |
 | IRFR540ZTRPBF#C537985Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 2,186 | ₹205.36 · 2,186 in stock | View |
 | HY1001D#C2983279HUAYI · TO-252-2L | HUAYI | TO-252-2L | 22 | ₹49.97 · 22 in stock | View |
