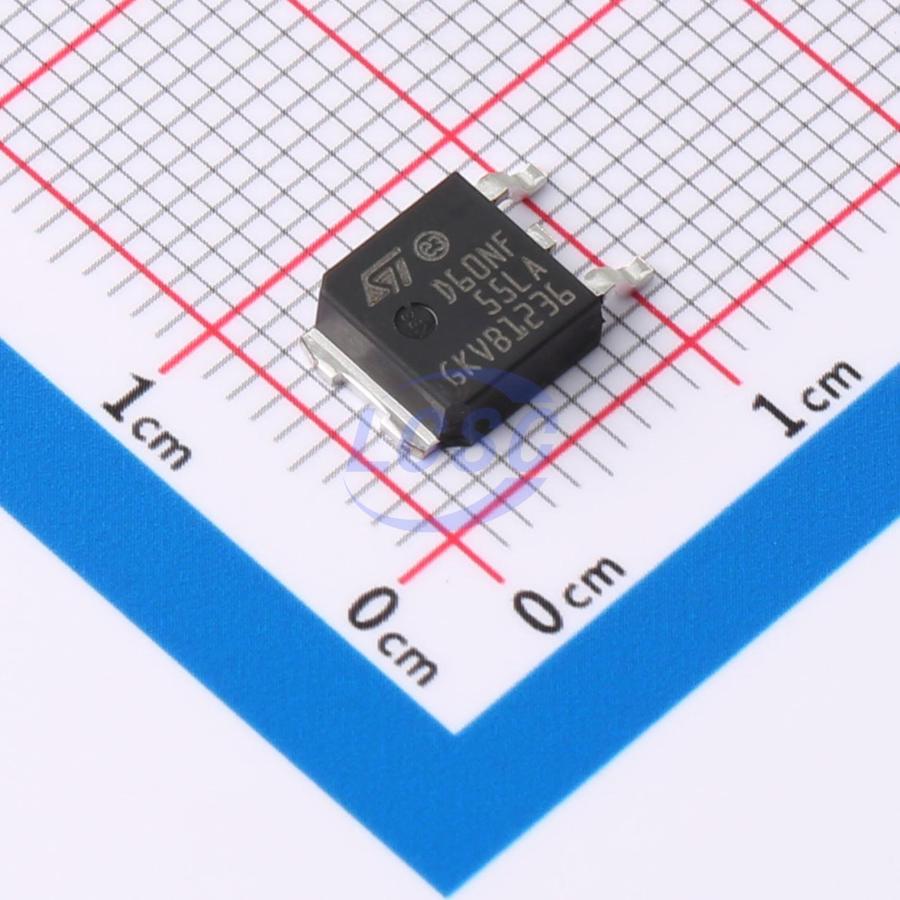

STD60NF55LAT4
55V 60A 110W 15mΩ@10V 1 N-channel N-Channel TO-252(DPAK) Single FETs, MOSFETs RoHS
TO-252(DPAK)ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STD60NF55LAT4
- Store part #
- C2971177
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C2971177
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹302.64 | ₹302.64 |
| 10+ | ₹298.12 | ₹2,981.20 |
| 30+ | ₹295.12 | ₹8,853.60 |
| 100+ | ₹292.11 | ₹29,211.00 |
1 × ₹302.64
₹302.64
excl. GST
₹357.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD60NF55LAT4
₹302.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.95nF
- Pd - Power Dissipation
- 110W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.588 g
Overview
This power MOSFET is developed using a unique STripFET process, specifically designed to minimize input capacitance and gate charge. This makes the device suitable for use as a primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computing applications, as well as applications with low gate charge drive requirements.
Applications
- Switching applications
- Automotive
Key features
- Low-threshold drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE1615#C416257VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 71 | ₹84.33 · 71 in stock | View |
 | STD60NF55LT4#C49254074ST · DPAK | ST | DPAK | 30 | ₹134.07 · 30 in stock | View |
 | STD60NF06T4#C46132ST · TO-252(DPAK) | ST | TO-252(DPAK) | 2,325 | ₹148.85 · 2,325 in stock | View |
 | MDDG10R08D#C45991084MDD(Microdiode Semiconductor) · TO-252 | MDD(Microdiode Semiconductor) | TO-252 | 1,680 | ₹32.06 · 1,680 in stock | View |
 | IRFR1018ETR(UMW)#C18295974UMW · TO-252 | UMW | TO-252 | 3,225 | ₹44.72 · 3,225 in stock | View |
