MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
STDatasheet (PDF)

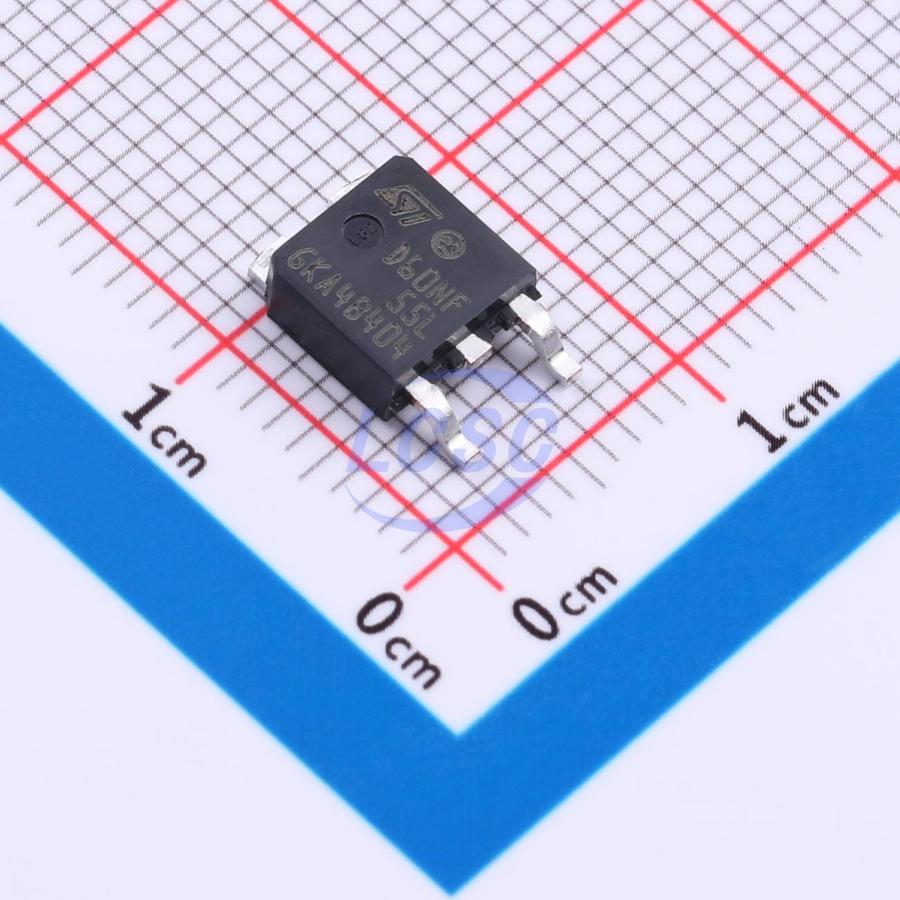

STD60NF55LT4
55V 60A 110W 12mΩ@10V 1 N-channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
MOSFET 55V 60A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD60NF55LT4
- Store part #
- C49254074
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C49254074
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.07 | ₹134.07 |
| 10+ | ₹130.82 | ₹1,308.20 |
| 30+ | ₹128.65 | ₹3,859.50 |
| 100+ | ₹126.48 | ₹12,648.00 |
1 × ₹134.07
₹134.07
excl. GST
₹158.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD60NF55LT4
₹134.07 for 1 + GST
Specifications
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 60A
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 1.95nF
- Pd - Power Dissipation
- 110W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
This MOSFET represents the latest development based on a unique "single feature size" stripe process. The resulting transistor exhibits extremely high packing density, featuring low on-resistance, robust avalanche characteristics, and fewer critical alignment steps, resulting in excellent manufacturing repeatability.
Applications
- Switching applications
Key features
- Low-threshold drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD60NF55LAT4#C2971177ST · TO-252(DPAK) | ST | TO-252(DPAK) | 50 | ₹302.64 · 50 in stock | View |
 | MDDG10R08D#C45991084MDD(Microdiode Semiconductor) · TO-252 | MDD(Microdiode Semiconductor) | TO-252 | 1,680 | ₹32.06 · 1,680 in stock | View |
 | WSF60N06A#C5772675Winsok Semicon · TO-252 | Winsok Semicon | TO-252 | 330 | ₹48.38 · 330 in stock | View |
 | STD60NF06T4#C46132ST · TO-252(DPAK) | ST | TO-252(DPAK) | 2,325 | ₹148.85 · 2,325 in stock | View |
 | HB10N085SG#C52766429R+O · TO-252 | R+O | TO-252 | 12,176 | ₹74.80 · 12,176 in stock | View |
