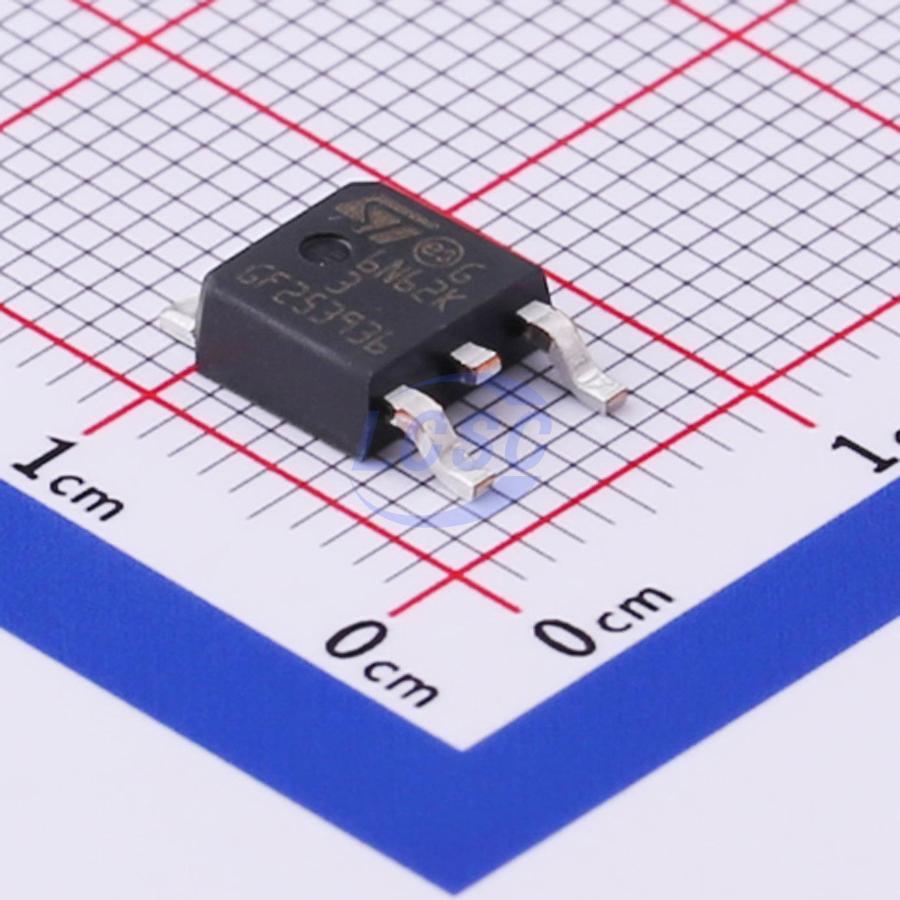

STD6N62K3
N-Channel 620V 5.5A 90W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 620V 5.5A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD6N62K3
- Store part #
- C500962
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C500962
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹283.98 | ₹283.98 |
| 10+ | ₹277.01 | ₹2,770.10 |
| 30+ | ₹272.22 | ₹8,166.60 |
| 100+ | ₹267.66 | ₹26,766.00 |
1 × ₹283.98
₹283.98
excl. GST
₹335.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD6N62K3
₹283.98 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 100pF
- Ciss-Input Capacitance
- 875pF
- Pd - Power Dissipation
- 90W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 620V
- Current - Continuous Drain(Id)
- 5.5A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 950mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.52 g
Overview
This MDmesh K3 Power MOSFET is the result of improvements applied to MDmesh technology, combined with a new optimized vertical structure. This device boasts an extremely low on-resistance, superior dynamic performance and high avalanche capability, rendering it suitable for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Extremely high dv/dt capability
- Very low intrinsic capacitance
- Improved diode reverse recovery characteristics
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YFW7N65AD#C5444246YFW · TO-252 | YFW | TO-252 | 2,500 | ₹42.46 · 2,500 in stock | View |
 | GC11N70K#C412294GOFORD · TO-252 | GOFORD | TO-252 | 1 | ₹133.13 · 1 in stock | View |
 | DOD8N65#C45384969DOINGTER · TO-252 | DOINGTER | TO-252 | 1,490 | ₹38.91 · 1,490 in stock | View |
 | NVD360N65S3T4G#C3277862onsemi · DPAK | onsemi | DPAK | 6 | ₹294.26 · 6 in stock | View |
 | SPD06N80C3#C148257Infineon · TO-252-2(DPAK) | Infineon | TO-252-2(DPAK) | 2,478 | ₹209.02 · 2,478 in stock | View |
