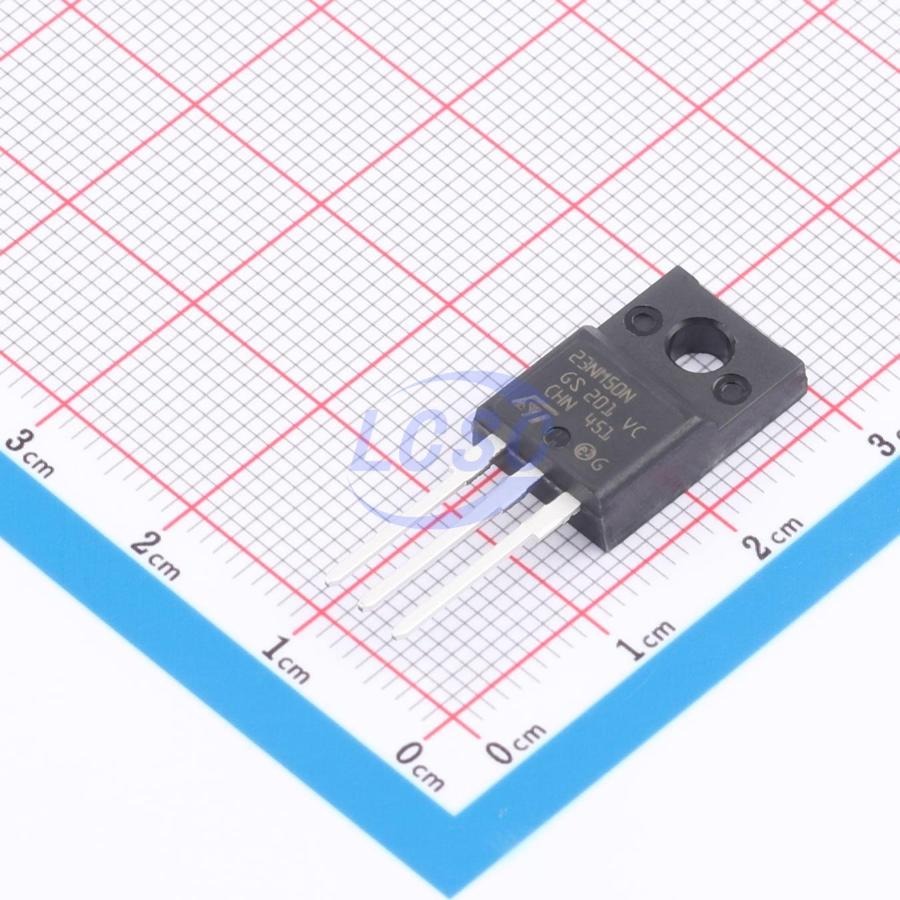

STF23NM50N
125W 500V 17A 190mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs
TO-220-3RoHSActive
- Manufacturer
- ST
- Manufacturer part #
- STF23NM50N
- Store part #
- C2965347
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C2965347
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹885.76 | ₹885.76 |
| 10+ | ₹870.30 | ₹8,703.00 |
| 30+ | ₹859.98 | ₹25,799.40 |
| 100+ | ₹849.66 | ₹84,966.00 |
1 × ₹885.76
₹885.76
excl. GST
₹1,045.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per reel
STF23NM50N
₹885.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 84pF
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 125W
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 4.8pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 50 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.764 g
Overview
These devices are made using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP24N60M6#C3280407ST · TO-220 | ST | TO-220 | 30 | ₹296.51 · 30 in stock | View |
 | STP22NM60N#C2688570ST · TO-220 | ST | TO-220 | 346 | ₹173.68 · 346 in stock | View |
 | STP24NM60N#C5357393ST · TO-220 | ST | TO-220 | 24 | ₹729.25 · 24 in stock | View |
 | STF26N60M2#C2970378ST · TO-220-3 | ST | TO-220-3 | 181 | ₹409.68 · 181 in stock | View |
 | STP26N60DM6#C2969959ST · TO-220-3 | ST | TO-220-3 | 6 | ₹1,122.84 · 6 in stock | View |
