STDatasheet (PDF)

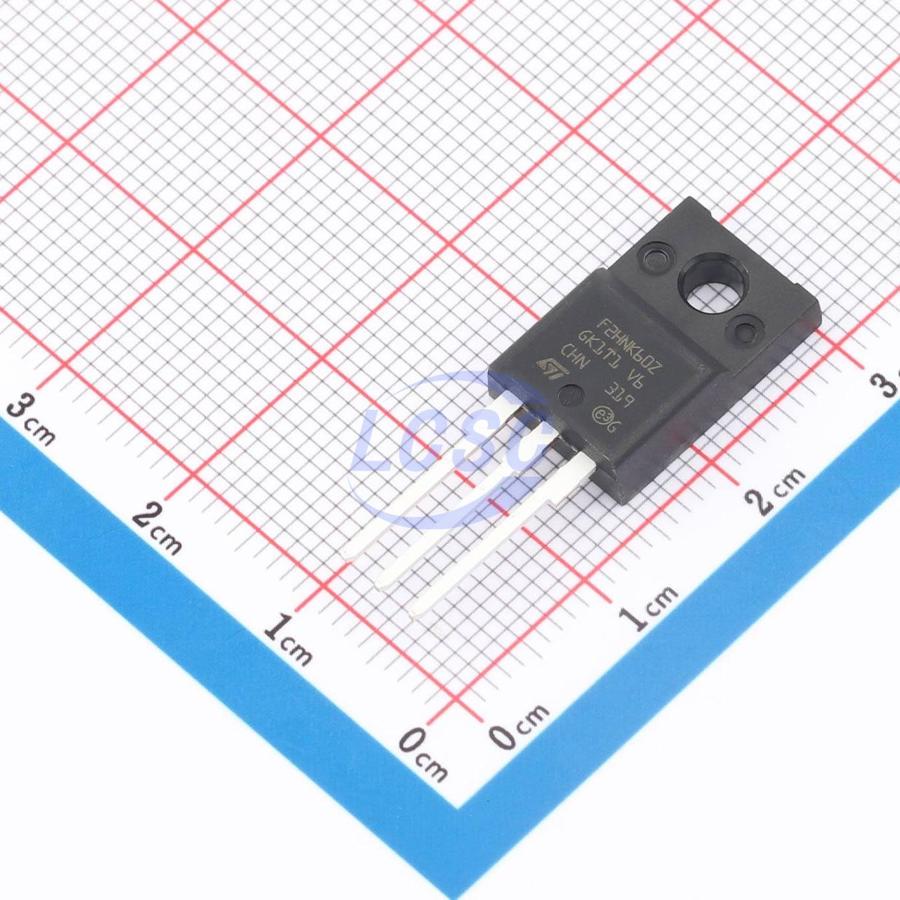

STF2HNK60Z
600V 2A 20W 4.8Ω@10V 1 N-channel N-Channel TO-220FP Single FETs, MOSFETs RoHS
TO-220FPROHS3 CompliantActive
N-channel, Current:2A, Voltage:600V
- Manufacturer
- ST
- Manufacturer part #
- STF2HNK60Z
- Store part #
- C2970406
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C2970406
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹488.13 | ₹488.13 |
| 10+ | ₹427.74 | ₹4,277.40 |
| 30+ | ₹390.11 | ₹11,703.30 |
| 100+ | ₹351.22 | ₹35,122.00 |
| 500+ | ₹333.81 | ₹1,66,905.00 |
| 1,000+ | ₹326.28 | ₹3,26,280.00 |
1 × ₹488.13
₹488.13
excl. GST
₹575.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF2HNK60Z
₹488.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 38pF
- Current - Continuous Drain(Id)
- 2A
- Ciss-Input Capacitance
- 280pF
- Pd - Power Dissipation
- 20W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 4.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.25 g
Overview
This high-voltage device is a Zener-protected N-channel power MOSFET developed using SuperMESH technology, an enhancement of the well-established PowerMESH technology. In addition to significantly reducing on-resistance, the device is designed for the most demanding applications, ensuring a high level of dv/dt capability.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Minimized gate charge
- Ultra-low intrinsic capacitance
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP3NK60ZFP#C2688561ST · TO-220FP | ST | TO-220FP | 89 | ₹155.88 · 89 in stock | View |
 | WGF2N60SE#C7541343Wild Goose · TO-220F | Wild Goose | TO-220F | On request | ₹18.59 · 0 in stock | View |
 | STF2N95K5#C155630ST · TO-220FP | ST | TO-220FP | 9,951 | ₹54.86 · 9,951 in stock | View |
| STF2N80K5#C5268639ST · TO-220FP | ST | TO-220FP | 130 | ₹390.97 · 130 in stock | View | |
 | STF7N60M2#C221511ST · TO-220FP | ST | TO-220FP | 2 | ₹291.54 · 2 in stock | View |
