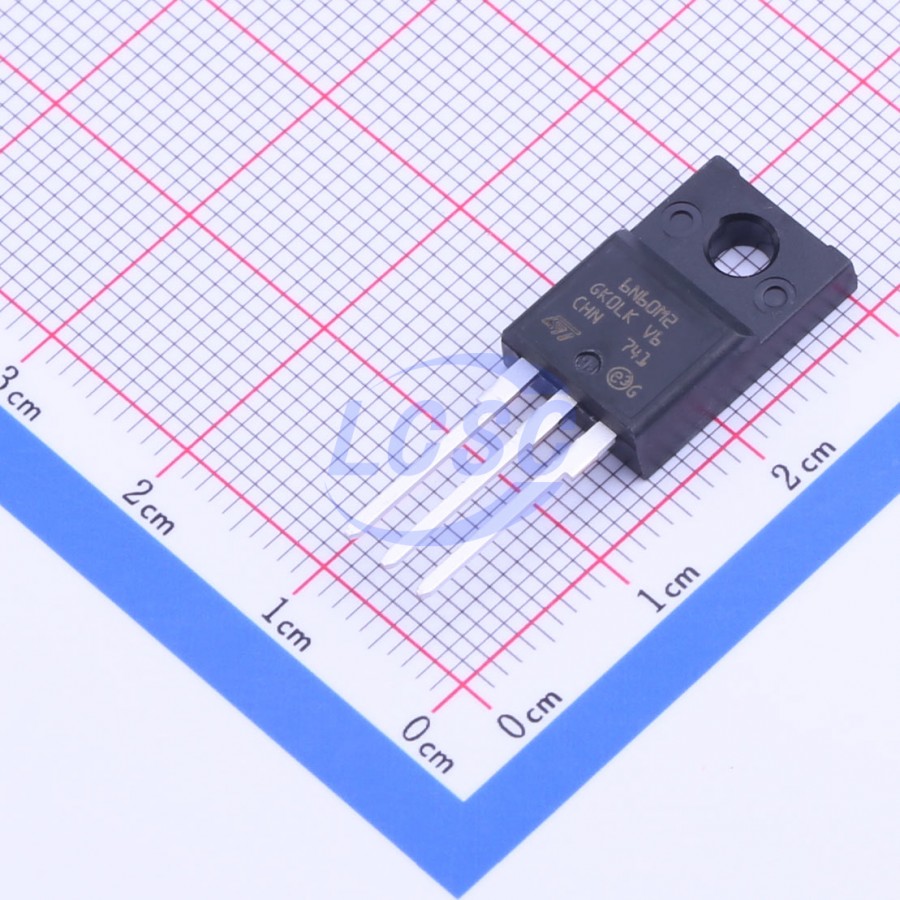

STF6N60M2
N-Channel 600V 4.5A 20W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 600V 4.5A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF6N60M2
- Store part #
- C155602
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C155602
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹179.48 | ₹179.48 |
| 10+ | ₹147.06 | ₹1,470.60 |
| 50+ | ₹129.03 | ₹6,451.50 |
| 100+ | ₹108.84 | ₹10,884.00 |
| 500+ | ₹100.05 | ₹50,025.00 |
| 1,000+ | ₹95.97 | ₹95,970.00 |
1 × ₹179.48
₹179.48
excl. GST
₹211.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF6N60M2
₹179.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 14pF
- Ciss-Input Capacitance
- 232pF
- Pd - Power Dissipation
- 20W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 4.5A
- Reverse Transfer Capacitance (Crss)
- 0.7pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- Ultra-low gate charge
- Excellent output capacitance (Coss) characteristics
- 100% avalanche tested
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF7N60M2#C221511ST · TO-220FP | ST | TO-220FP | 2 | ₹291.54 · 2 in stock | View |
 | VBMB165R07#C516966VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 34 | ₹123.37 · 34 in stock | View |
| STF9N60M2#C5268737ST · TO-220FP | ST | TO-220FP | 40 | ₹326.32 · 40 in stock | View | |
 | TSF65R550#C39832941Truesemi · TO-220F | Truesemi | TO-220F | 184 | ₹66.68 · 184 in stock | View |
 | IPA70R750P7S#C536416Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 5 | ₹215.36 · 5 in stock | View |
