STDatasheet (PDF)

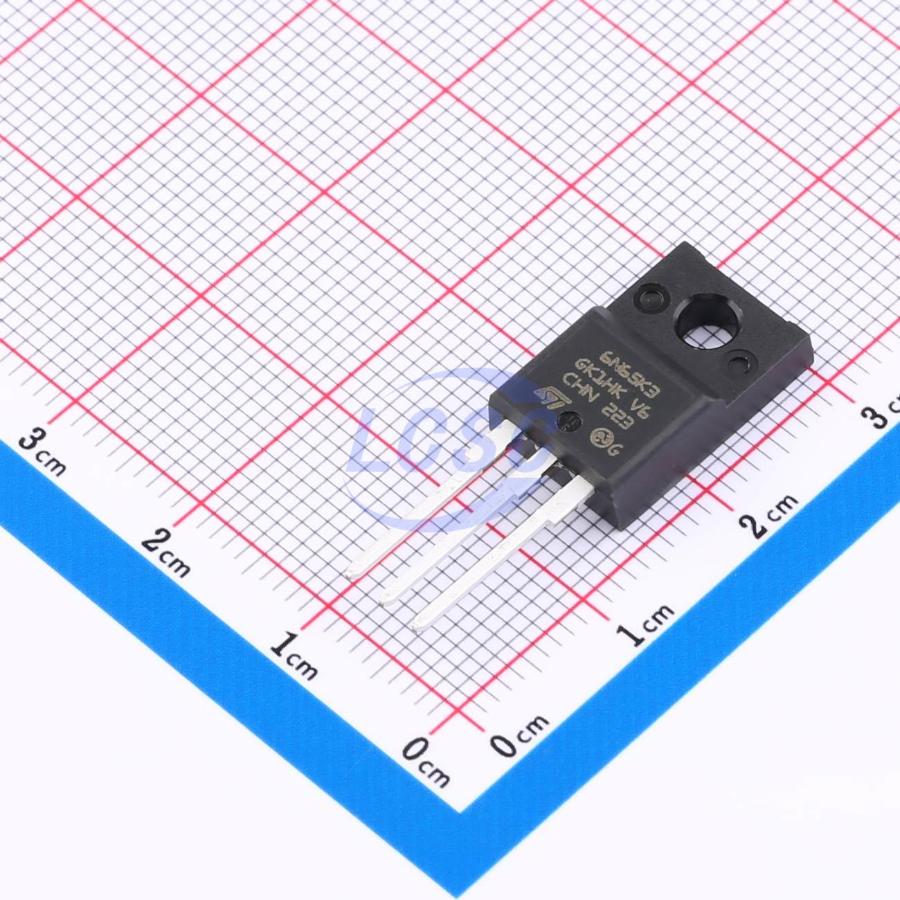

STF6N65K3
N-Channel 650V 5.4A 30W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 650V 5.4A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF6N65K3
- Store part #
- C165616
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
217 in stock
#C165616
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.86 | ₹113.86 |
| 10+ | ₹93.22 | ₹932.20 |
| 50+ | ₹82.79 | ₹4,139.50 |
| 100+ | ₹72.58 | ₹7,258.00 |
| 500+ | ₹66.49 | ₹33,245.00 |
| 1,200+ | ₹63.24 | ₹75,888.00 |
1 × ₹113.86
₹113.86
excl. GST
₹134.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF6N65K3
₹113.86 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 5.4A
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Overview
These SuperMESH3 Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH technology, combined with a new optimized vertical structure. These devices boast an extremely low onresistance, superior dynamic performance and high avalanche capability, rendering them suitable for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Extremely high dv/dt capability
- Gate charge minimized
- Very low intrinsic capacitance
- Improved diode reverse recovery characteristics
- Zener-protected
