VBsemi ElecDatasheet (PDF)

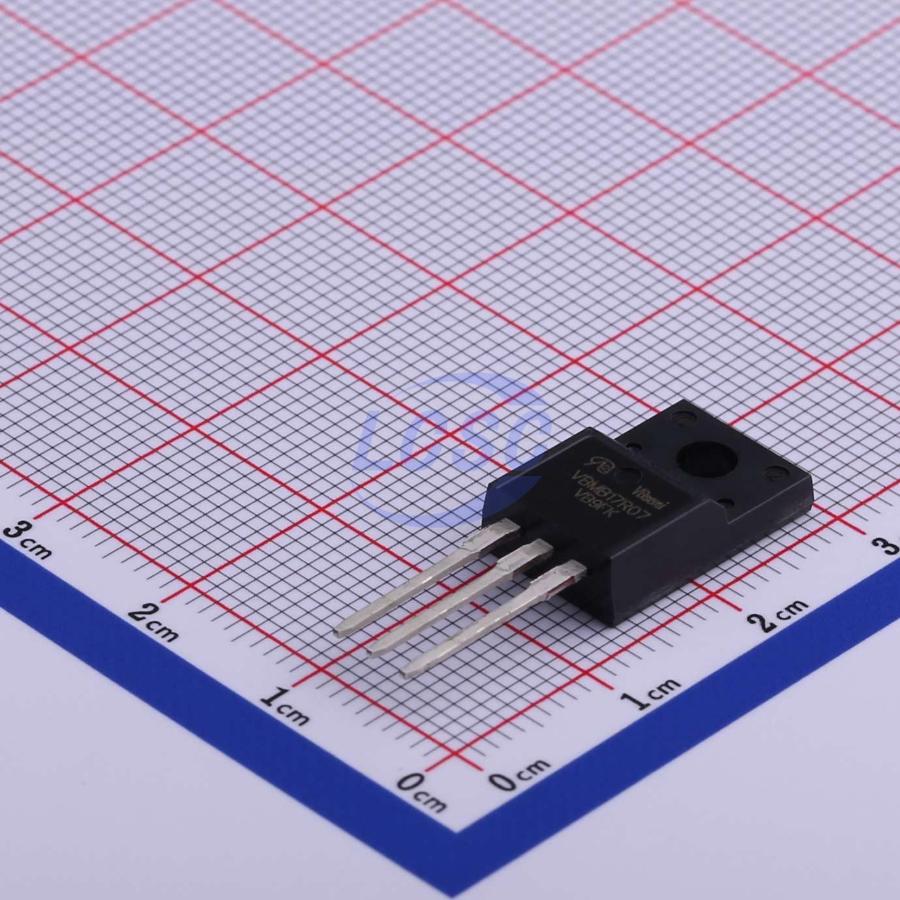

VBMB17R07
N-Channel 700V 7A 31W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 700V 7A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB17R07
- Store part #
- C481041
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C481041
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.00 | ₹142.00 |
| 10+ | ₹118.47 | ₹1,184.70 |
| 50+ | ₹105.46 | ₹5,273.00 |
| 100+ | ₹90.74 | ₹9,074.00 |
| 500+ | ₹84.24 | ₹42,120.00 |
| 1,000+ | ₹81.30 | ₹81,300.00 |
1 × ₹142.00
₹142.00
excl. GST
₹167.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB17R07
₹142.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 820pF
- Pd - Power Dissipation
- 31W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.36Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.37 g
Overview
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOTF7N70-VB#C7568981VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹147.00 · 20 in stock | View |
 | FQPF10N90C-VB#C22389723VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹446.99 · 4 in stock | View |
 | IPA80R460CEXKSA2-VB#C22395953VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 32 | ₹347.66 · 32 in stock | View |
 | STF14N80K5-VB#C45662524VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹347.66 · 5 in stock | View |
 | FCPF400N80Z-VB#C19711238VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 7 | ₹416.89 · 7 in stock | View |
