VBsemi ElecDatasheet (PDF)

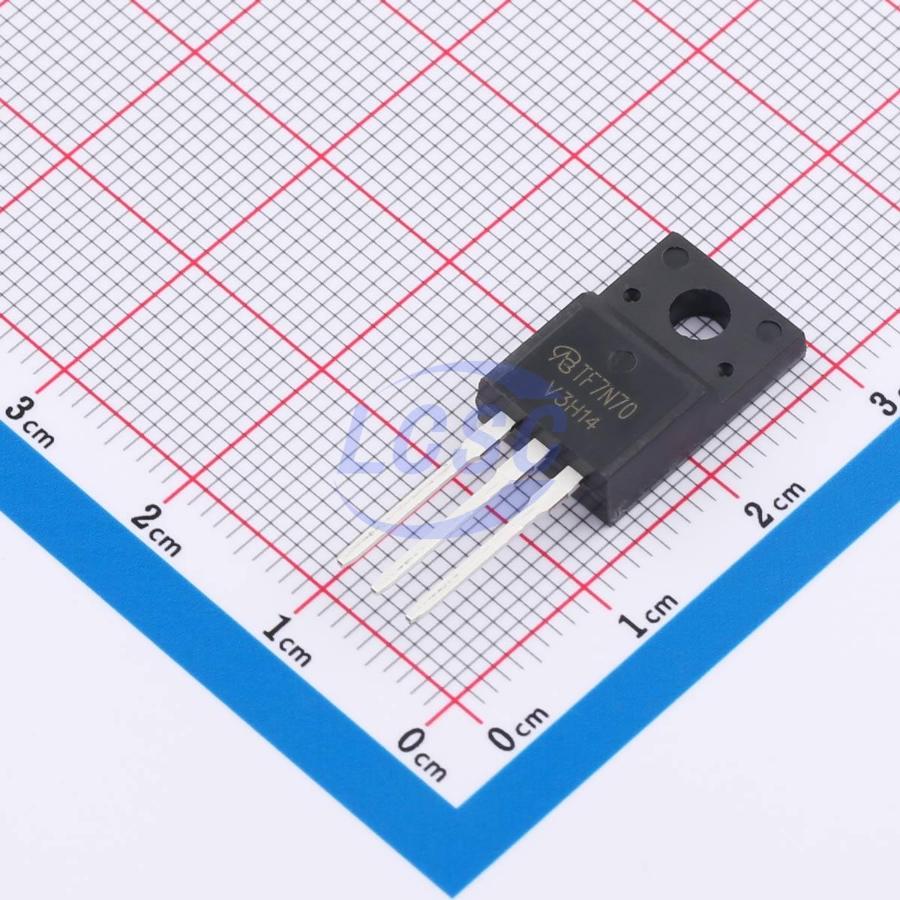

AOTF7N70-VB
700V 7A 31W 1.36Ω@10V 1 N-channel N-Channel TO-220F Single FETs, MOSFETs RoHS
TO-220FROHS CompliantActive
MOSFET N-CH 700V 7A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AOTF7N70-VB
- Store part #
- C7568981
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568981
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.00 | ₹147.00 |
| 10+ | ₹122.93 | ₹1,229.30 |
| 50+ | ₹108.31 | ₹5,415.50 |
| 100+ | ₹93.27 | ₹9,327.00 |
| 500+ | ₹86.62 | ₹43,310.00 |
| 1,000+ | ₹83.60 | ₹83,600.00 |
1 × ₹147.00
₹147.00
excl. GST
₹173.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AOTF7N70-VB
₹147.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 820pF
- Pd - Power Dissipation
- 31W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.36Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.7 g
Overview
Key features
- Low gate charge Qg, simple drive requirements
- Improved gate, avalanche, and dynamic dV/dt robustness
- Fully characterized capacitance, avalanche voltage and current
- RoHS compliant with directive 2002/95/EC
