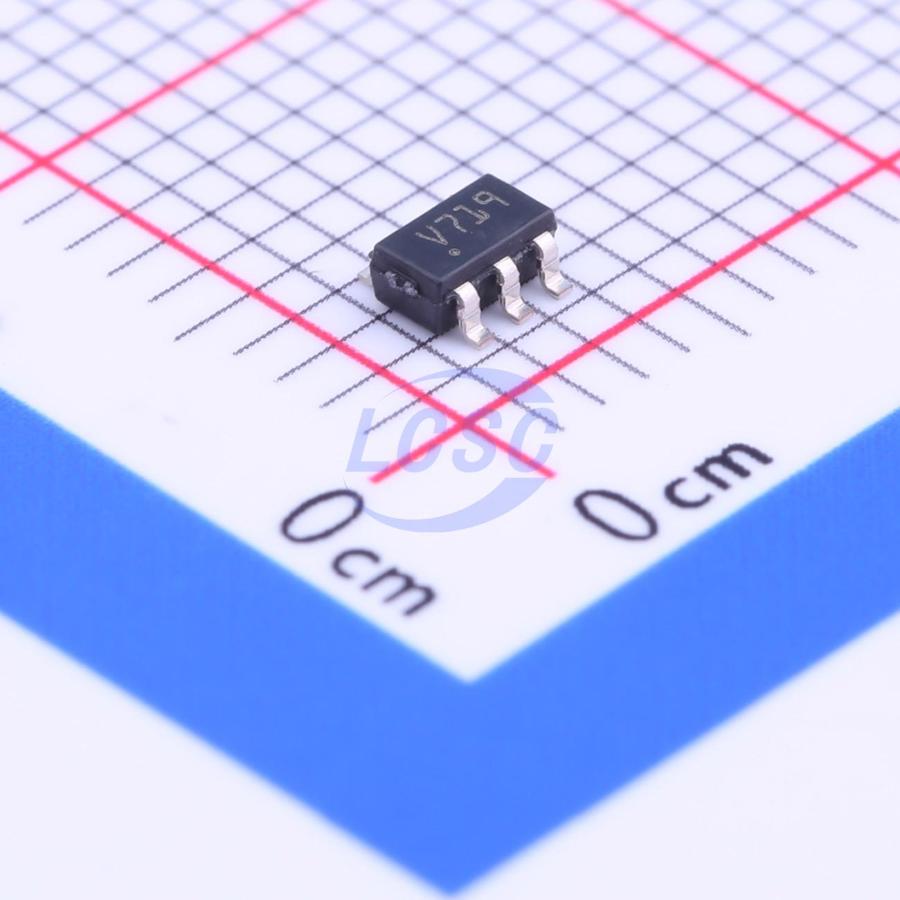

STG719STR
5Ω 1 1.8V~5.5V SOT-23-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-23-6ROHS3 CompliantActive
LOW VOLTAGE 4Q SPDT SWITCH
- Manufacturer
- ST
- Manufacturer part #
- STG719STR
- Store part #
- C222378
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C222378
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.24 | ₹241.20 |
| 50+ | ₹39.89 | ₹1,994.50 |
| 150+ | ₹36.30 | ₹5,445.00 |
| 500+ | ₹31.84 | ₹15,920.00 |
| 3,000+ | ₹29.86 | ₹89,580.00 |
| 6,000+ | ₹28.66 | ₹1,71,960.00 |
5 × ₹48.24
₹241.20
excl. GST
₹284.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STG719STR
₹241.20 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+125℃
- Ron
- 5Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.8V~5.5V
- Propagation Delay
- 300ps
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
STG719 is a high-speed SPDT CMOS switch fabricated using silicon-gate C2MOS technology. It is designed for a voltage range of 1.8V to 5.5V, making it ideal for portable applications. At 5V and 25℃, the on-resistance is 4Ω maximum. Other key features include fast switching speed (tON=7ns, tOFF=4.5ns) and low power consumption (typical <0.001mW). The device supports commercial temperature range and is available in a SOT23-6L package.
Applications
- Portable applications
Key features
- High-speed: typical propagation delay tPD=0.3ns at VCC=5V; tPD=0.4ns at VCC=3.3V
- Low power consumption: maximum ICC=1μA at TA=25℃
- Low on-resistance: maximum RON=4Ω at VCC=5V, TA=25℃; typical RON=6Ω at VCC=3V
- Wide supply voltage range: single-supply VCC (operating) = 1.8V to 5.5V
- Fast switching speed: tON=7ns, tOFF=4.5ns
- Low power consumption: typical <0.001mW
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPG4599S6#C42449027TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,020 | ₹17.32 · 2,020 in stock | View |
 | ADG719BRTZ-REEL#C579097ADI · SOT-23-6 | ADI | SOT-23-6 | 76 | ₹709.56 · 76 in stock | View |
 | ADG719BRTZ-REEL7#C61383ADI · SOT-23-6 | ADI | SOT-23-6 | 275 | ₹850.81 · 275 in stock | View |
 | TPMAX4644EUT+T#C42449032TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,940 | ₹33.68 · 2,940 in stock | View |
 | NLAST4599DTT1G#C233206onsemi · TSOP-6-1.5mm | onsemi | TSOP-6-1.5mm | 1,339 | ₹110.18 · 1,339 in stock | View |
