VBsemi ElecDatasheet (PDF)

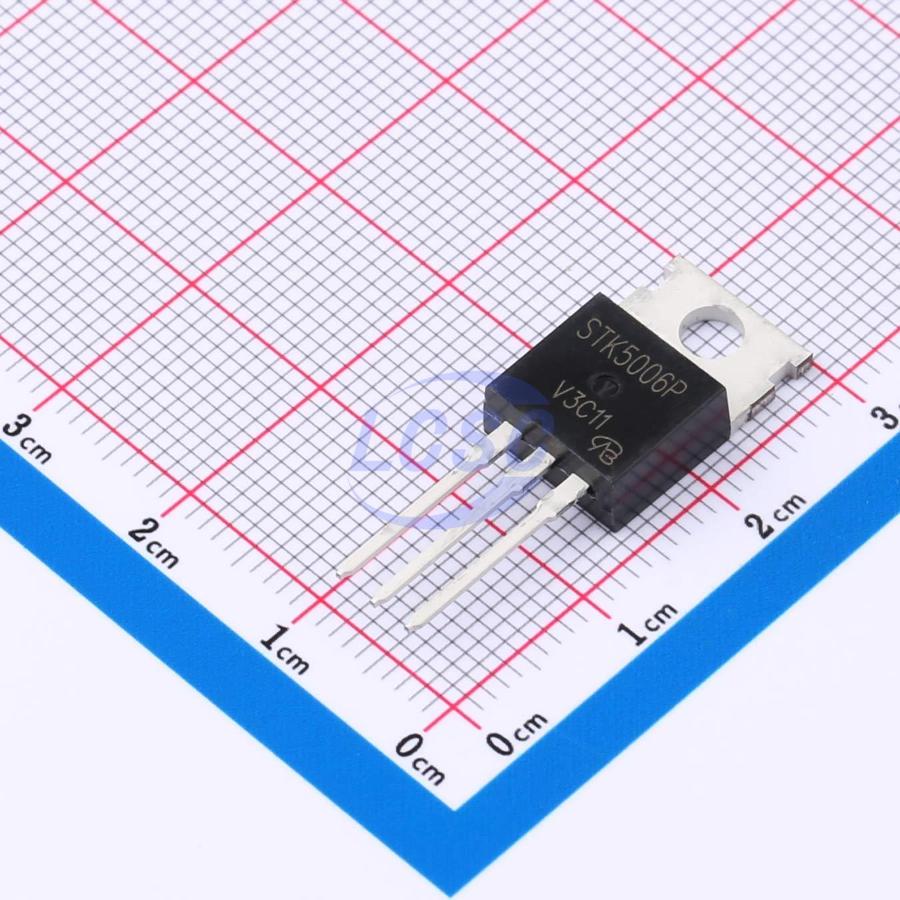

STK5006P-VB
N-Channel 60V 50A 150W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STK5006P-VB
- Store part #
- C2680861
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C2680861
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.01 | ₹67.01 |
| 10+ | ₹52.93 | ₹529.30 |
| 50+ | ₹47.06 | ₹2,353.00 |
| 100+ | ₹39.49 | ₹3,949.00 |
| 500+ | ₹36.13 | ₹18,065.00 |
| 1,000+ | ₹34.24 | ₹34,240.00 |
1 × ₹67.01
₹67.01
excl. GST
₹79.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STK5006P-VB
₹67.01 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 190pF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 24mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.684 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Meets halogen-free requirements as defined by IEC 61249-2-21
- Surface mount
- Available in tape and reel packaging
- Dynamic dV/dt rated
- Logic level gate drive
- Fast switching
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UTT20N06-VB#C5137395VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 25 | ₹66.27 · 25 in stock | View |
 | IRFZ34NPBF-VB#C5456568VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹68.08 · 4 in stock | View |
 | NDP6060L-VB#C7494494VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 30 | ₹66.68 · 30 in stock | View |
 | IRFZ44RPBF-VB#C5444635VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹67.22 · 15 in stock | View |
 | STP36NF06L-VB#C7525013VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 35 | ₹78.23 · 35 in stock | View |
