VBsemi ElecDatasheet (PDF)

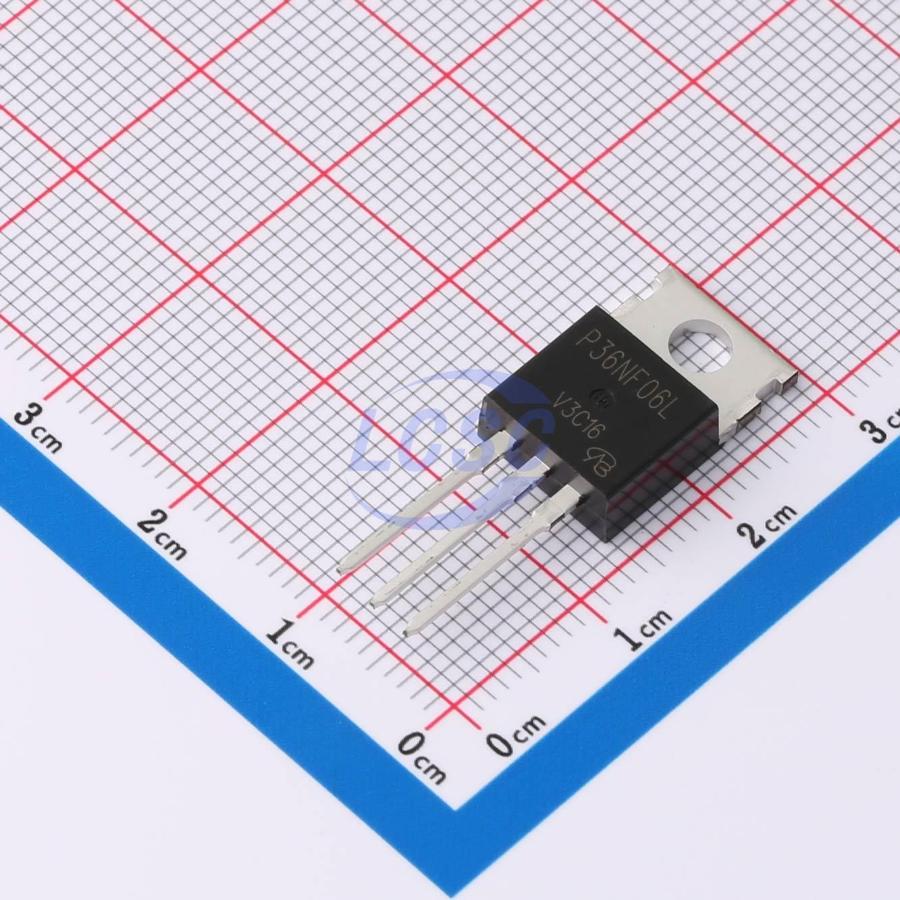

STP36NF06L-VB
N-Channel 60V 50A 150W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 60V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP36NF06L-VB
- Store part #
- C7525013
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C7525013
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.23 | ₹78.23 |
| 10+ | ₹63.68 | ₹636.80 |
| 50+ | ₹47.16 | ₹2,358.00 |
| 100+ | ₹39.33 | ₹3,933.00 |
| 500+ | ₹35.87 | ₹17,935.00 |
| 1,000+ | ₹33.68 | ₹33,680.00 |
1 × ₹78.23
₹78.23
excl. GST
₹92.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP36NF06L-VB
₹78.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 190pF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 24mΩ@10V;28mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.734 g
Overview
Key features
- Halogen-free According to IEC 61249-2- Definition
- Surface Mount
- Available in Tape and Reel
- Dynamic dV/dt Rating
- Logic-Level Gate Drive
- Fast Switching
- Compliant to RoHS Directive 2002/95/EC
