STDatasheet (PDF)

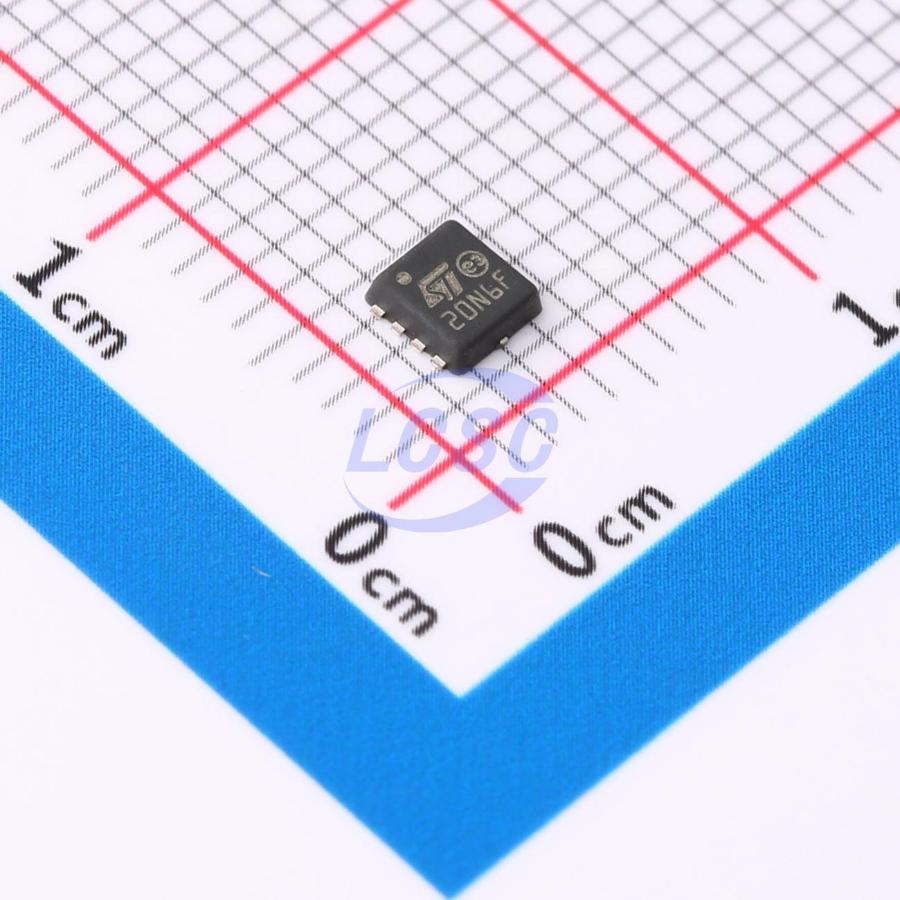

STL20N6F7
N-Channel 60V 20A 3W Surface Mount VDFN-8-Power
VDFN-8-PowerROHS3 CompliantActive
MOSFET N-CH 60V 20A VDFN-8-Power
- Manufacturer
- ST
- Manufacturer part #
- STL20N6F7
- Store part #
- C2969815
- Package / case
- VDFN-8-Power
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C2969815
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹194.86 | ₹194.86 |
| 10+ | ₹160.03 | ₹1,600.30 |
| 30+ | ₹141.08 | ₹4,232.40 |
| 100+ | ₹119.32 | ₹11,932.00 |
| 500+ | ₹109.73 | ₹54,865.00 |
| 1,000+ | ₹105.38 | ₹1,05,380.00 |
1 × ₹194.86
₹194.86
excl. GST
₹229.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STL20N6F7
₹194.86 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 880pF
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 66pF
- RDS(on)
- 5.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
This N-channel power MOSFET utilizes StripFET™ F7 technology with an enhanced trench gate structure, achieving extremely low on-resistance while reducing internal capacitance and gate charge for faster, more efficient switching operations.
Applications
- Switching applications
Key features
- Among the lowest R<sub>DS(ON)</sub> in the market
- Excellent figure of merit (FoM)
- Low C<sub>rss</sub>/C<sub>iss</sub> ratio for EMI immunity
- High avalanche ruggedness
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STL120N8F7#C2965369ST · VDFN-8-Power | ST | VDFN-8-Power | 2,405 | ₹167.43 · 2,405 in stock | View |
 | ISC055N15NM6ATMA1#C32725363Infineon · TDSON-8FL | Infineon | TDSON-8FL | 32 | ₹1,033.04 · 32 in stock | View |
 | IAUZ40N08S5N100ATMA1#C3288837Infineon · TDSON-8 | Infineon | TDSON-8 | 100 | ₹163.56 · 100 in stock | View |
 | STL8N10F7#C222400ST · PowerVDFN-8 | ST | PowerVDFN-8 | 3 | ₹173.62 · 3 in stock | View |
 | BSC500N20NS3GATMA1#C5381902Infineon · TDSON-8 | Infineon | TDSON-8 | On request | ₹258.13 · 0 in stock | View |
