STDatasheet (PDF)

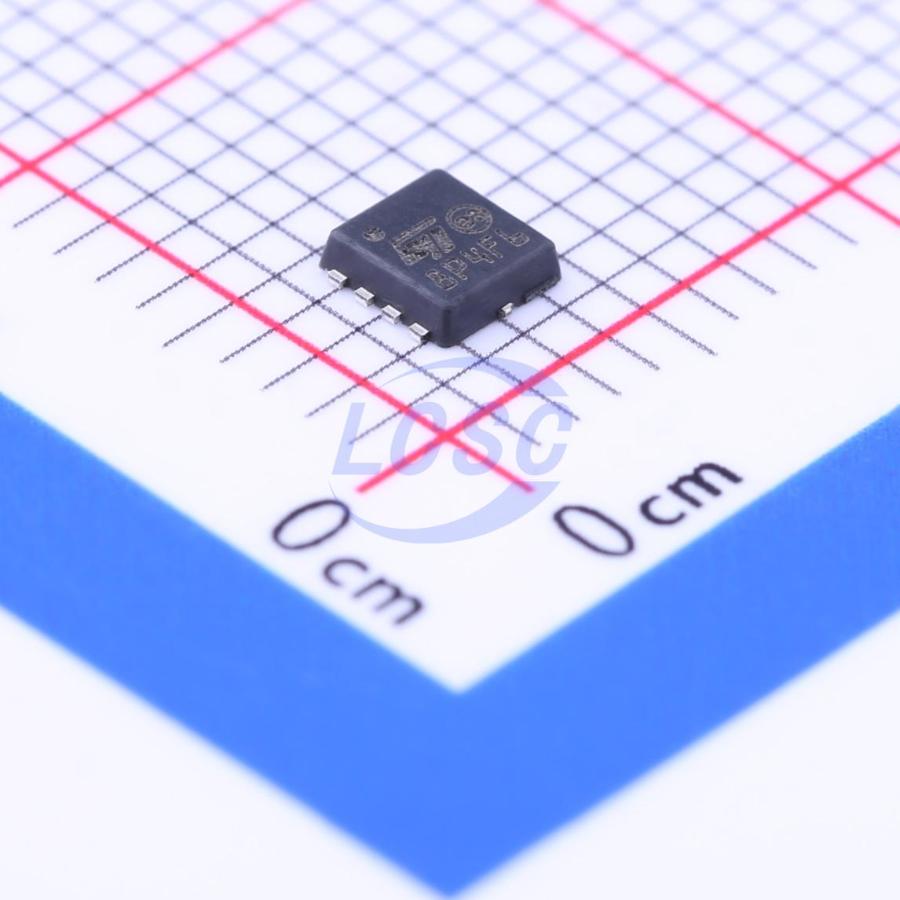

STL8P4LLF6
P-Channel 40V 8A 2.9W Surface Mount PowerFLAT(3.3x3.3)
PowerFLAT(3.3x3.3)ROHS3 CompliantActive
MOSFET P-CH 40V 8A PowerFLAT(3.3x3.3)
- Manufacturer
- ST
- Manufacturer part #
- STL8P4LLF6
- Store part #
- C222138
- Package / case
- PowerFLAT(3.3x3.3)
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C222138
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.17 | ₹163.17 |
| 10+ | ₹134.77 | ₹1,347.70 |
| 30+ | ₹119.18 | ₹3,575.40 |
| 100+ | ₹101.62 | ₹10,162.00 |
| 500+ | ₹93.83 | ₹46,915.00 |
| 1,000+ | ₹90.14 | ₹90,140.00 |
1 × ₹163.17
₹163.17
excl. GST
₹192.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STL8P4LLF6
₹163.17 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 2.85nF
- Pd - Power Dissipation
- 2.9W
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 8A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 20.5mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
This device is a P-channel Power MOSFET developed using the STripFET™ F6 technology, with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on) in all packages.
Applications
- Switching applications
Key features
- Very low on-resistance
- Very low gate charge
- High avalanche ruggedness
- Low gate drive power loss
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB4115#C2828497HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 6,030 | ₹52.05 · 6,030 in stock | View |
 | LWP4020AD3#C54740937Lewa Micro · PDFN-8L(3.3x3.3) | Lewa Micro | PDFN-8L(3.3x3.3) | 4,945 | ₹30.92 · 4,945 in stock | View |
 | CMSC7341#C6939765Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 35 | ₹21.60 · 35 in stock | View |
 | RQ3L070ATTB#C3288442ROHM · HSMT-8(3.2x3) | ROHM | HSMT-8(3.2x3) | 8 | ₹107.11 · 8 in stock | View |
 | NCE40P20Q#C2686564NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 3,870 | ₹66.56 · 3,870 in stock | View |
