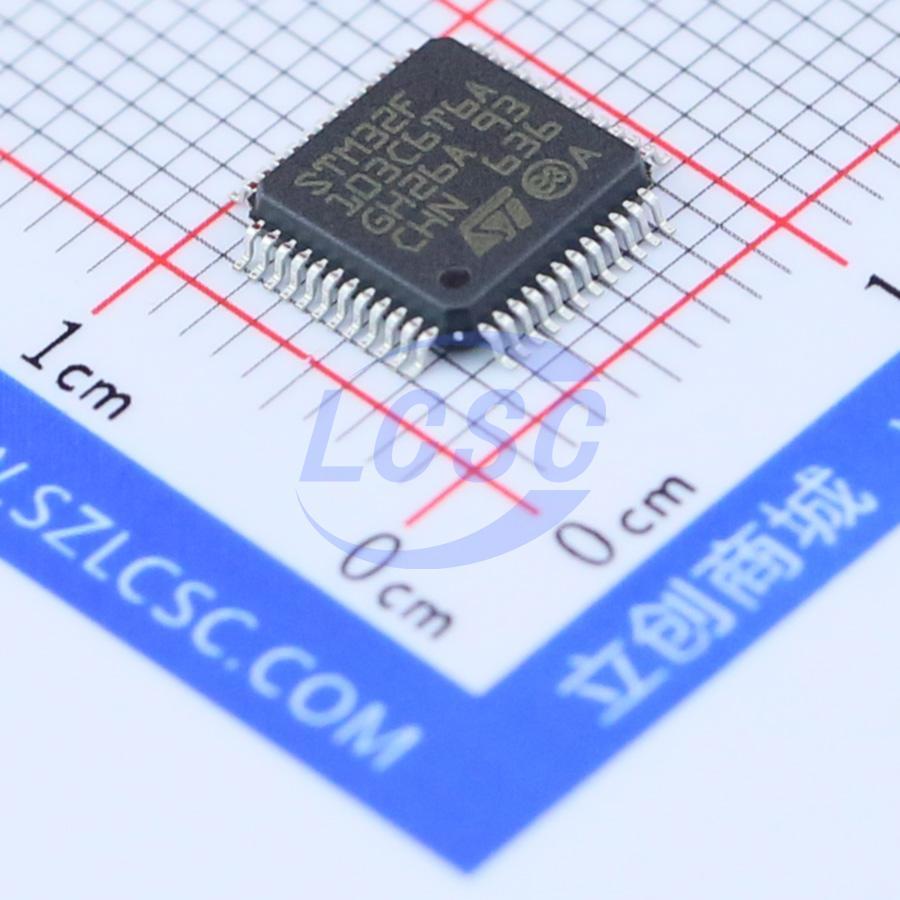

STM32F103C6T6A

This product is a microcontroller based on an ARM 32-bit Cortex-M3 CPU core, featuring multiple memory configurations, clock management functions, low-power modes, peripheral interfaces, and communication capabilities.

Key features

• ARM 32-bit Cortex-M3 CPU Core 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access Single-cycle multiplication and hardware division
• 16 or 32 Kbytes of Flash memory 6 or 10 Kbytes of SRAM
• 2.0 to 3.6 V application supply and I/Os POR, PDR, and programmable voltage detector (PVD) 4-to-16 MHz crystal oscillator Internal 8 MHz factory-trimmed RC Internal 40 kHz RC PLL for CPU clock 32kHz oscillator for RTC with calibration
• Sleep, Stop and Standby modes VBAT supply for RTC and backup registers
• 2 x 12-bit, 1 μs A/D converters (up to 16 channels) Conversion range: 0 to 3.6 V Dual-sample and hold capability Temperature sensor
• 7-channel DMA controller Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
• Up to 51 fast I/O ports 26/37/51 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
• Debug mode - Serial wire debug (SWD) & JTAG interfaces
• Two 16-bit timers, each with up to 4 IC/Oc/PwM or pulse counter and quadrature (incremental) encoder input 16-bit, motor control PWM timer with deadtime generation and emergency stop 2 watchdog timers (Independent and Window) SysTick timer 24-bit downcounter
• 6 communication interfaces
• 1 x I²C interface (SMBus/PMBus)
• 2 x USARTs (ISO7816 interface, LIN, IrDA capability, modem control)
• 1 x SPI (18 Mbit/s)
• CAN interface (2.0B Active)
• USB 2.0 full-speed interface
• Packages are ECOPACK
