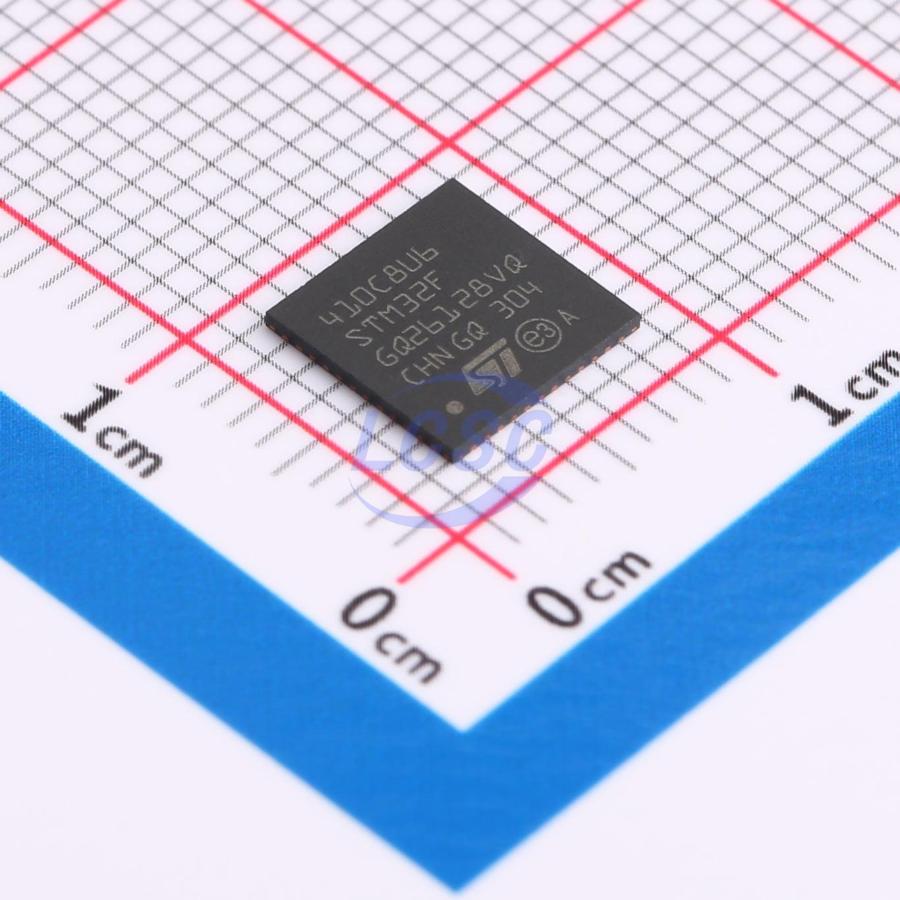

STM32F410C8U6TR ST
ST

STM32F410C8U6TR

ARM Cortex-M4 32 Bit 100MHz UFQFPN-48(7x7) Microcontrollers RoHS

UFQFPN-48(7x7)ROHS3 CompliantActive

STM32 dynamic efficiency MCU supporting BAM, high-performance ARM Cortex-M4 MCU with DSP and FPU, featuring 64 KB Flash, 100 MHz CPU, and ART accelerator

Manufacturer
ST
Manufacturer part #
STM32F410C8U6TR
Store part #
C2055276
Package / case
UFQFPN-48(7x7)
Category
Microcontrollers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15 in stock

#C2055276

Stock & price checked 32 h ago

QuantityUnit pricePack price
1+₹623.15₹623.15
10+₹608.51₹6,085.10
30+₹598.82₹17,964.60
100+₹588.92₹58,892.00

1 × ₹623.15

₹623.15

excl. GST

₹735.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 2,500 per reel

STM32F410C8U6TR

₹623.15 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

DAC (Bit)
12bit
ADC (Bit)
12bit
Number of I/O
36
Operating Temperature
-40℃~+85℃
Voltage - Supply
1.7V~3.6V
Program Memory Type
FLASH
Program Storage Size
64KB
CPU Core
ARM Cortex-M4
Core Size
32 Bit
CPU Maximum Speed
100MHz
Oscillator Type
Built-in

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
3A991A2
Packaging
Tape & Reel (TR)
Standard pack
2,500 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.164 g

Overview

Key features

  • Dynamic Efficiency Line with eBAM (enhanced Batch Acquisition Mode) 1.7 V to 3.6 V power supply, -40 ℃ to 85/105/125 ℃ temperature range
  • Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART AcceleratorTM) allowing 0-wait state execution from Flash memory, frequency up to 100 MHz, memory protection unit, 125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
  • Memories: Up to 128 Kbytes of Flash memory, 512 bytes of OTP memory, 32 Kbytes of SRAM
  • Clock, reset and supply management: 1.7 V to 3.6 V application supply and I/Os, POR, PDR, PVD and BOR, 4-to-26 MHz crystal oscillator, Internal 16 MHz factory-trimmed RC, 32 kHz oscillator for RTC with calibration, Internal 32 kHz RC with calibration
  • Power consumption:
  • Run: 89 μA/MHz (peripheral off)
  • Stop (Flash in Stop mode, fast wakeup time): 40 μA Typ @ 25 ℃, 49 μA max @ 25 ℃
  • Stop (Flash in Deep power down mode, slow wakeup time): down to 6 μA @ 25 ℃, 14 μA max @ 25 ℃
  • Standby: 2.4 μA @ 25 ℃ / 1.7 V without RTC; 12 μA @ 85 ℃ @ 1.7 V
  • VBAT supply for RTC: 1 μA @ 25 ℃
  • 1x12-bit, 2.4 MSPS ADC: up to 16 channels
  • 1x12-bit D/A converter
  • General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
  • Up to 9 timers:
  • One low-power timer (available in Stop mode)
  • One 16-bit advanced motor-control timer
  • Three 16-bit general purpose timers
  • One 32-bit timer up to 100 MHz with up to four IC/OC/PwM or pulse counter and quadrature (incremental) encoder input
  • Two watchdog timers (independent window)
  • SysTick timer
  • Debug mode: Serial wire debug (SWD) & JTAG interfaces, Cortex -M4 Embedded Trace Macrocell ITM
  • Up to 50 I/O ports with interrupt capability:
  • Up to 45 fast I/Os up to 100 MHz
  • Up to 49 5 V -tolerant I/Os
  • Up to 9 communication interfaces:
  • Up to 3x I²C interfaces (SMBus/PMBus) including 1x I²C Fast-mode at 1 MHz
  • Up to 3 USARTs (2x12.5 Mbit/s, 1x6.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control
  • Up to 3 SPI/I2Ss (up to 50 Mbit/s SPI or I2S audio protocol)
  • True random number generator
  • CRC calculation unit
  • 96-bit unique ID
  • RTC: subsecond accuracy, hardware calendar
  • All packages are ECOPACK2

Alternatives

Similar parts — check the datasheet before substituting.

STM32F410C8U6#C1339723ST · UFQFPN-48(7x7)₹952.39 · 89 in stockView
STM32F410CBU6#C469221ST · UFQFPN-48(7x7)₹514.71 · 91 in stockView
STM32F410CBU3#C529326ST · UFQFPN-48(7x7)₹1,172.03 · 85 in stockView
STM32F413CGU6#C1337405ST · UFQFPN-48(7x7)₹1,777.17 · 1 in stockView
STM32F413CHU6#C1337761ST · UFQFPN-48(7x7)₹1,690.29 · 4 in stockView
