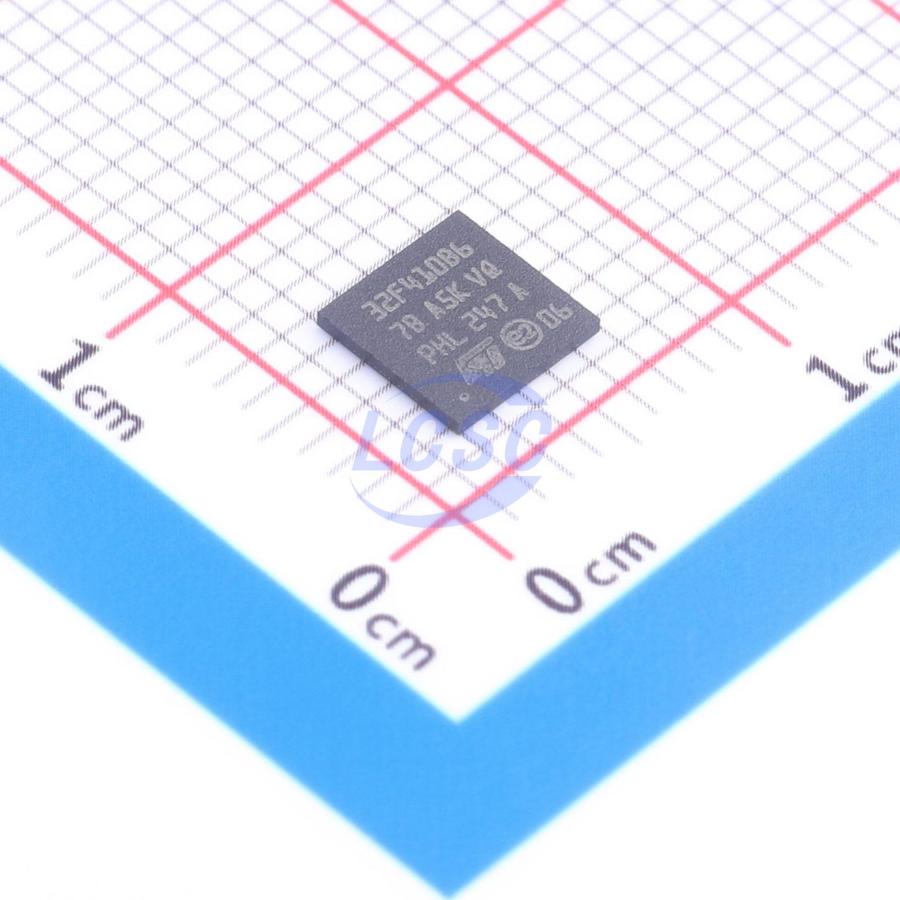

STM32F410RBI6

Arm®-Cortex®-M4 32-bit MCU+FPU, 125 DMIPS, 128KB Flash, 32KB RAM, 9 timers, 1 ADC, 1 DAC, 1 low-power timer, 9 communication interfaces

Key features

• Dynamic Efficiency Line with eBAM (enhanced Batch Acquisition Mode)
• 1.7 V to 3.6 V power supply
• -40°C to 85/105/125°C temperature range
• Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory, frequency up to 100 MHz, memory protection unit, 125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• Up to 128 Kbytes of Flash memory
• 512 bytes of OTP memory
• 32 Kbytes of SRAM
• Clock, reset and supply management 1.7 V to 3.6 V application supply and I/Os
• POR, PDR, PVD and BOR
• 4-to-26 MHz crystal oscillator
• Internal 16 MHz factory-trimmed RC
• 32 kHz oscillator for RTC with calibration
• Internal 32 kHz RC with calibration
• Power consumption
• Run: 89 μA/MHz (peripheral off)
• Stop (Flash in Stop mode, fast wakeup time): 40 μA Typ @ 25°C; 49 μA max @25°C
• Stop (Flash in Deep power down mode, slow wakeup time): down to 6 μA @ 25°C; 14 μA max @25°C
• Standby: 2.4 μA @25°C / 1.7 V without RTC; 12 μA @85°C @ 1.7 V
• VBAT supply for RTC: 1 μA @25°C
• 1 × 12-bit, 2.4 MSPS ADC: up to 16 channels
• 1 × 12-bit D/A converter
• General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
• Up to 9 timers
• One low-power timer (available in Stop mode)
• One 16-bit advanced motor-control timer
• Three 16-bit general purpose timers
• One 32-bit timer up to 100 MHz with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
• Two watchdog timers (independent window)
• SysTick timer
• Debug mode
• Serial wire debug (SWD) & JTAG interfaces
• Cortex-M4 Embedded Trace Macrocell
• Up to 50 I/O ports with interrupt capability
• Up to 45 fast I/Os up to 100 MHz
• Up to 49 5 V tolerant I/Os
• Up to 9 communication interfaces
• Up to 3x I²C interfaces (SMBus/PMBus) including 1x I²C Fast-mode at 1 MHz
• Up to 3 USARTs (2 x 12.5 Mbit/s, 1 x 6.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control
• Up to 3 SPI/I2SSs (up to 50 Mbit/s SPI or I2S audio protocol)
• True random number generator
• CRC calculation unit
• 96-bit unique ID
• RTC: subsecond accuracy, hardware calendar
• All packages are ECOPACK2
