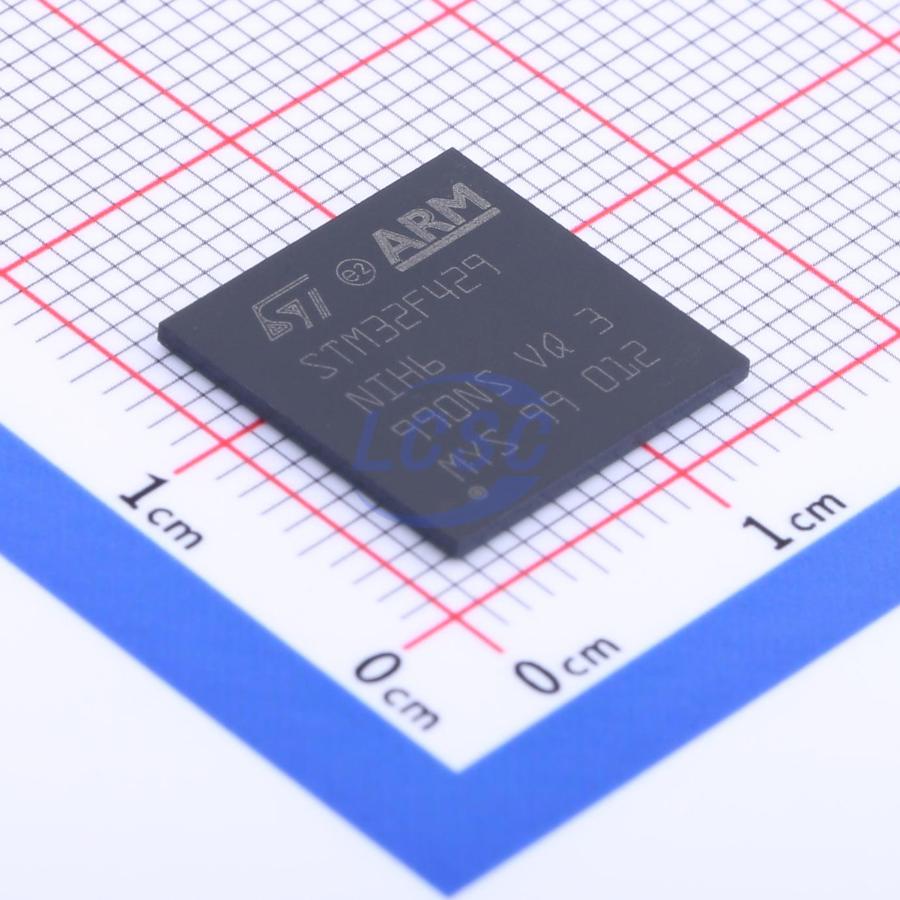

STM32F429NIH6

32b Arm Cortex-M4 MCU+FPU, 225DMIPS, up to 2MB Flash/256+4KB RAM, USBOTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 20 com. interfaces, camera & LCD-TFT

Key features

• Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART AcceleratorTM) allowing O-wait state execution from Flash memory, frequency up to 180 MHz, MPU,225DMIPS/1.25DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• Memories - Up to 2 MB of Flash memory organized into two banks allowing read-while-write Upto 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAMLPSDRSDRAM,Compact Flash/NOR/NAND memories
• LCD parallel interface, 8080/6800 modes
• LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)
• Chrom-ART AcceleratorTM for enhanced graphic content creation (DMA2D)
• Clock, reset and supply management - 1.7V to 3.6 V application supply and I/Os - POR, PDR, PVD and BOR - 4-to-26 MHz crystal oscillator - Internal 16 MHz factory-trimmed RC (1% accuracy) -32 kHz oscillator for RTC with calibration - Internal 32 kHz RC with calibration
• Low power - Sleep, Stop and Standby modes V BAT supply for RTC, 20x32 bit backup registers + optional 4 KB backup SRAM
• 3x12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
• 2x12-bit D/A converters
• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
• Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to 4 IC/Oc/PWM or pulse counter and quadrature (incremental) encoder input
• Debug mode - SWD & JTAG interfaces Cortex-M4 Trace MacrocelITM
• Up to 168 I/O ports with interrupt capability Up to 164 fast I/Os up to 90 MHz
• Up to 166 5 V-tolerant I/Os
• Up to 21 communication interfaces Up to 3xI2C interfaces (SMBus/PMBus) Up to 4 USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control) Up to 6 SPls (45 Mbits/s), 2 with muxed full-duplex I2S for audio class accuracy via internal audioPLL or external clock 1 x SAl (serial audio interface)
• 2xCAN (2.0B Active) and SDIO interface
• Advanced connectivity USB 2.0 full-speed device/host/OTG controller with on-chip PHY USB 2.0 high-speed/full-speed device/host/OTGcontrollerwithdedicated DMA, on-chip full-speed PHY and ULPI 10/100Ethernet MACwithdedicatedDMA: supports IEEE 1588v2 hardware, Mll/RMIl
• 8- to 14-bit parallel camera interface up to 54 Mbytes/s
• True random number generator
• CRC calculation unit
• RTC: subsecond accuracy, hardware calendal
• 96-bit unique ID
