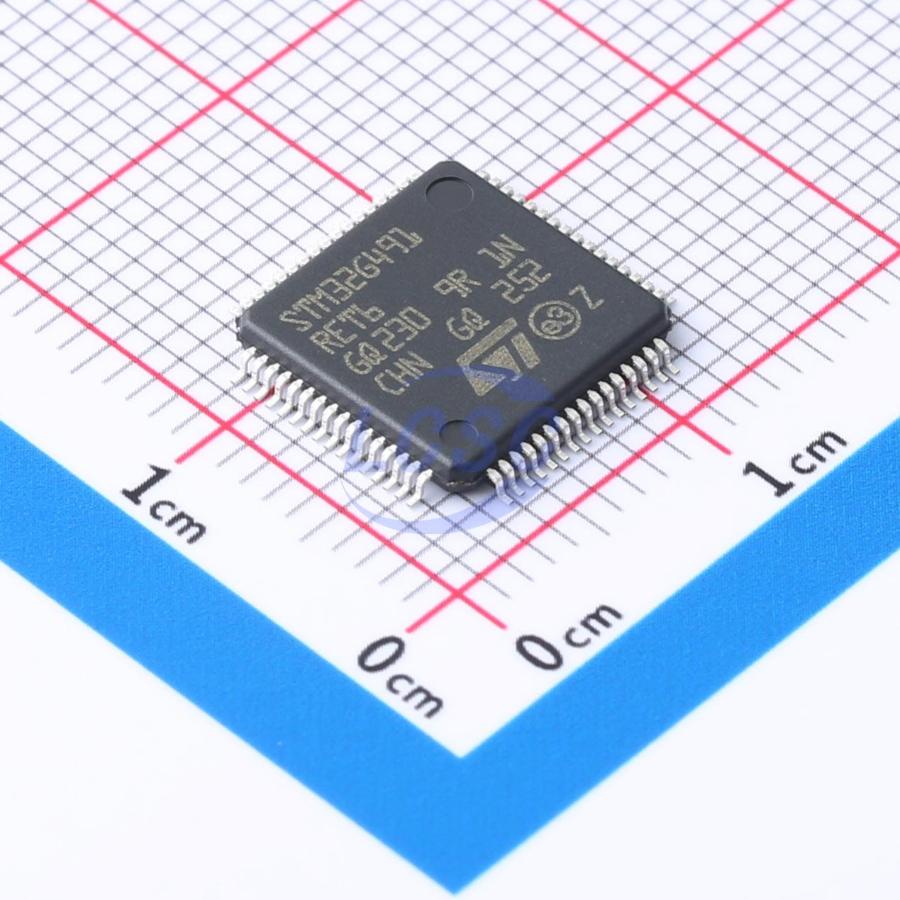

STM32G491RET6

Key features

• Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait-state execution from Flash memory, frequency up to 170 MHz with 213 DMIPS, MPU, DSP instructions
• Operating conditions: VDD, VDDA voltage range: 1.71 V to 3.6 V
• Mathematical hardware accelerators: CORDIC for trigonometric functions acceleration FMAC: filter mathematical accelerator
• Memories: 512 Kbytes of Flash memory with ECC support, proprietary code readout protection (PCROP), securable memory area, 1 Kbyte OTP; 96 Kbytes of SRAM, with hardware parity check implemented on the first 32 Kbytes; Routine booster: 16 Kbytes of SRAM on instruction and data bus, with hardware parity check (CCM SRAM); Quad - SPI memory interface
• Reset and supply management: Power - on/power - down reset (POR/PDR/BOR) Programmable voltage detector (PVD); Low - power modes: sleep, stop, standby and shutdown; VBAT supply for RTC and backup registers
• Clock management: 4 to 48 MHz crystal oscillator; 32 kHz oscillator with calibration; Internal 16 MHz RC with PLL option (± 1%); Internal 32 kHz RC oscillator (± 5%); Up to 86 fast I/Os All mappable on external interrupt vectors; Several I/Os with 5 V tolerant capability
• Interconnect matrix 16 - channel DMA controller 3 x ADCs 0.25 µs (up to 36 channels). Resolution up to 16 - bit with hardware oversampling, 0 to 3.6 V conversion range
• 4 x 12 - bit DAC channels: 2 x buffered external channels 1 MSPS; 2 x unbuffered internal channels 15 MSPS
• 4 x ultra - fast rail - to - rail analog comparators
• 4 x operational amplifiers that can be used in PGA mode, all terminals accessible Internal voltage reference buffer (VREFBUF) supporting three output voltages (2.048 V, 2.5 V, 2.9 V)
• 15 timers: 1 x 32 - bit timer and 2 x 16 - bit timers with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input; 3 x 16 - bit 8 - channel advanced motor control timers, with up to 8 x PWM channels, dead time generation and emergency stop; 1 x 16 - bit timer with 2 x IC/OCs, one OCN/PWM, dead time generation and emergency stop; 2 x 16 - bit timers with IC/OC/OCN/PWM, dead time generation and emergency stop; 2 x watchdog timers (independent, window)
• 1 x SysTick timer: 24 - bit downcounter
• 2 x 16 - bit basic timers
• 1 x low - power timer
• Calendar RTC with alarm, periodic wakeup from stop/standby
• Communication interfaces: 2 x FDCAN controller supporting flexible data rate; 3 x I²C Fast mode plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, wakeup from stop; 5 x USART/UARTs (ISO 7816 interface, LIN, IrDA, modem control); 1 x LPUART; 3 x SPIs, 4 to 16 programmable bit frames, 2 x with multiplexed half duplex I²S interface; 1 x SAI (serial audio interface); USB 2.0 full - speed interface with LPM and BCD support; IRTIM (infrared interface); USB Type - C /USB power delivery controller (UCPD)
• True random number generator (RNG)
• CRC calculation unit, 96 - bit unique ID
• Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell
